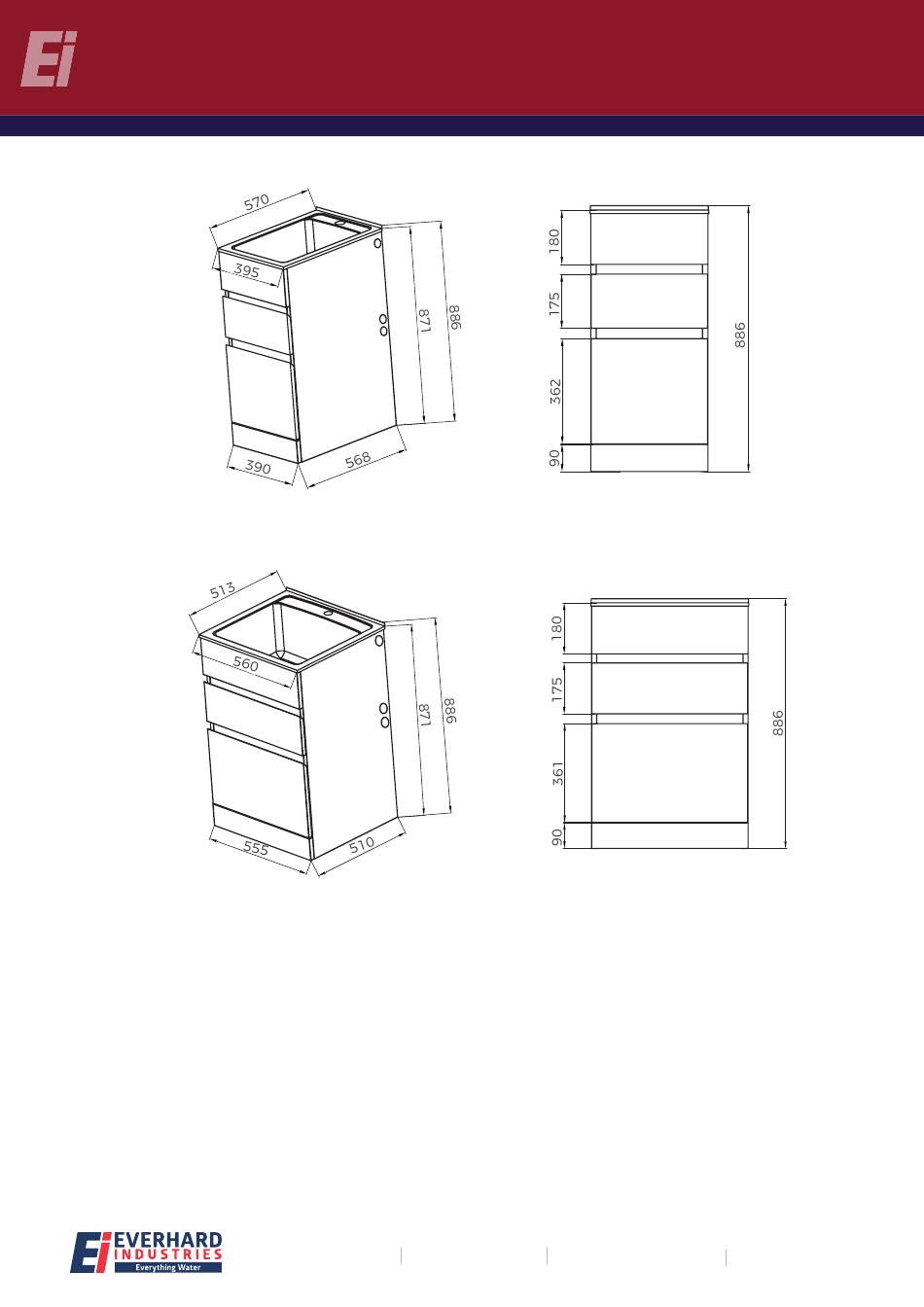

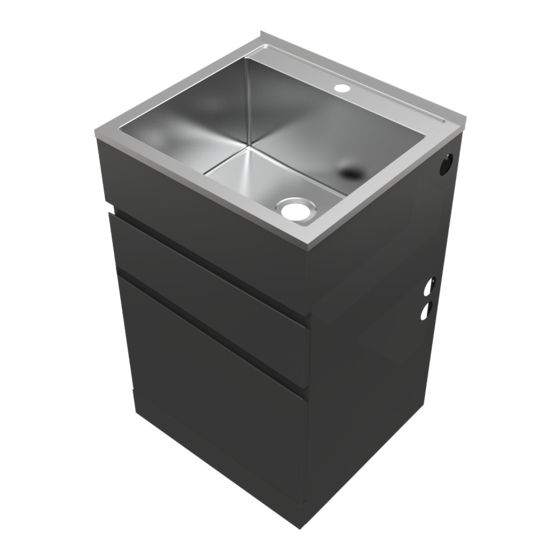

EXCELLENCE 35L & 45L DRAWER SYSTEM LAUNDRY UNIT
35L | EI code: 71E3510
45L | EI code: 71E4510

INSTALLING YOUR LAUNDRY UNIT

1. Carefully lift product out of the carton.
2. The laundry unit must be installed at the location of the drain (refer to Connecting the Laundry Sink to the Drain
section). Check the dimensions of the area where the laundry unit will be installed to ensure it will fit within the
allocated space.
3. Ensure the back wall of the area where the laundry unit will be installed is straight and level.
4. Carefully remove the laundry sink from the unit using protective gloves and set aside.
5. Install the basket waste onto the sink. The basket waste is a two part waste, therefore the screw within the middle of
the waste needs to be removed before installing the waste onto the sink. Insert the top part of the waste including
the thin black rubber seal into the waste hole of the sink. From underneath install the bottom part of the basket
waste including the thick black rubber onto the waste hole. Screw the stainless steel threaded screw through the
top part of the basket waste into the bottom part of the basket waste and tighten using a screwdriver.
6. Ensure the laundry unit is installed level by using a spirit level across the top of the unit.
7. Using two screws or wall anchors, fasten the laundry unit to the wall by drilling two holes into the top bracket
approx 300mm centres and insert fastening screws (M6) or wall anchors to secure the unit to the finished wall.
