Summary of Contents for Artistic Licence netLynx quad
- Page 1 Artistic Licence netLynx quad User Guide netLynx quad User Guide Version 1-4...
- Page 2 Do not allow liquid to penetrate the product. Please recycle all packaging. Copyright © Artistic Licence Engineering Ltd. All rights reserved. Download the user guide by scanning the following QR code: netLynx quad User Guide...
-
Page 3: Mounting Diagram
The following table summarises the internal signal common interconnection and isolation. Circuit Description DMX512 Outputs Type: Floating Pin 1: Connected to Internal Logic Ground Internal Logic Ground Isolated from PoE, DC power and Ethernet port. netLynx quad User Guide Page 3... -
Page 4: Product Overview

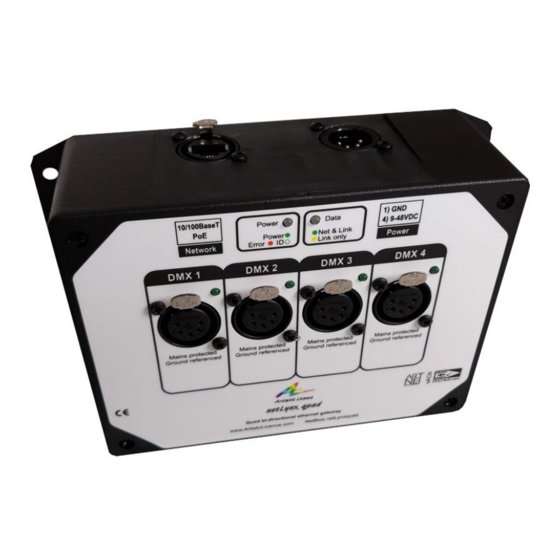

Product Overview Power netLynx quad is a desktop or truss-mounted netLynx quad can be powered from either an bidirectional gateway. It converts 4 universes external PSU (12-48 VDC) or with PoE. The of Art-Net (supports all versions up to Art-Net latter requires a suitable ethernet switch for 4) or sACN ethernet into DMX512/RDM. - Page 5 DMX512 Wiring Web-Server To configure netLynx quad via the internal XLR Pin Function Colour RJ45 Cable web-server, either type in the IP address of (convention) Colour the product or, if your web-browser supports Black 7 & White/ NetBios, then enter the name: netLynxquad.
- Page 6 Priority (active if IP & sACN are selected): Set the Priority number (1- 200) that is used when converting DMX to sACN Label: Editable field for port name Figure: netLynx quad internal web server The settings are explained above. User Guide Page 6...
- Page 7 When netLynx quad is connected to a computer over the network to the console. running DMX-Workshop, it should be detected and displayed as an Art-Net node (click the ‘Node List’...
- Page 8 Merging netLynx quad is able to merge two streams of data to a DMX output. Depending on the settings, merge can operate as HTP/LTP or Priority. In HTP (highest takes precedence), the levels of each channel in the two streams are compared and the highest value is used.
-
Page 9: Led Indication
**The Power LED will flash continuously when the Identify command is sent by DMX-Workshop. This enables netLynx quad to be easily distinguished on a network containing multiple nodes. This LED will also blip briefly in response to any programming command received via the network. - Page 10 Customers who have purchased RDM Integrity can use netLynx quad to unlock its powerful RDM and Art-Net testing capabilities, as shown in the diagram below.
- Page 11 Operating relative humidity (max): 80% PSU-24-0.75-XLR4 non-condensing Art-Switch PoE4 & PSU-48-1-DR (powers IP rating: IP20 indoor use only up to 4 x netLynx quad) Certification: CE, WEEE, RoHS Gender 5MM Warranty: 2-year (return to base) Power & Electrical Input voltage: 12-48 VDC or PoE Input connector: XLR4 (1 no.)
-
Page 12: Warranty
Returns will not be accepted without prior (WEEE) authorisation. In order to discuss a request to return goods, please email: Artistic Licence is a member of a WEEE compliance scheme and will happily recycle Sales@ArtisticLicence.com any of our products that you, at your expense, return to us.
