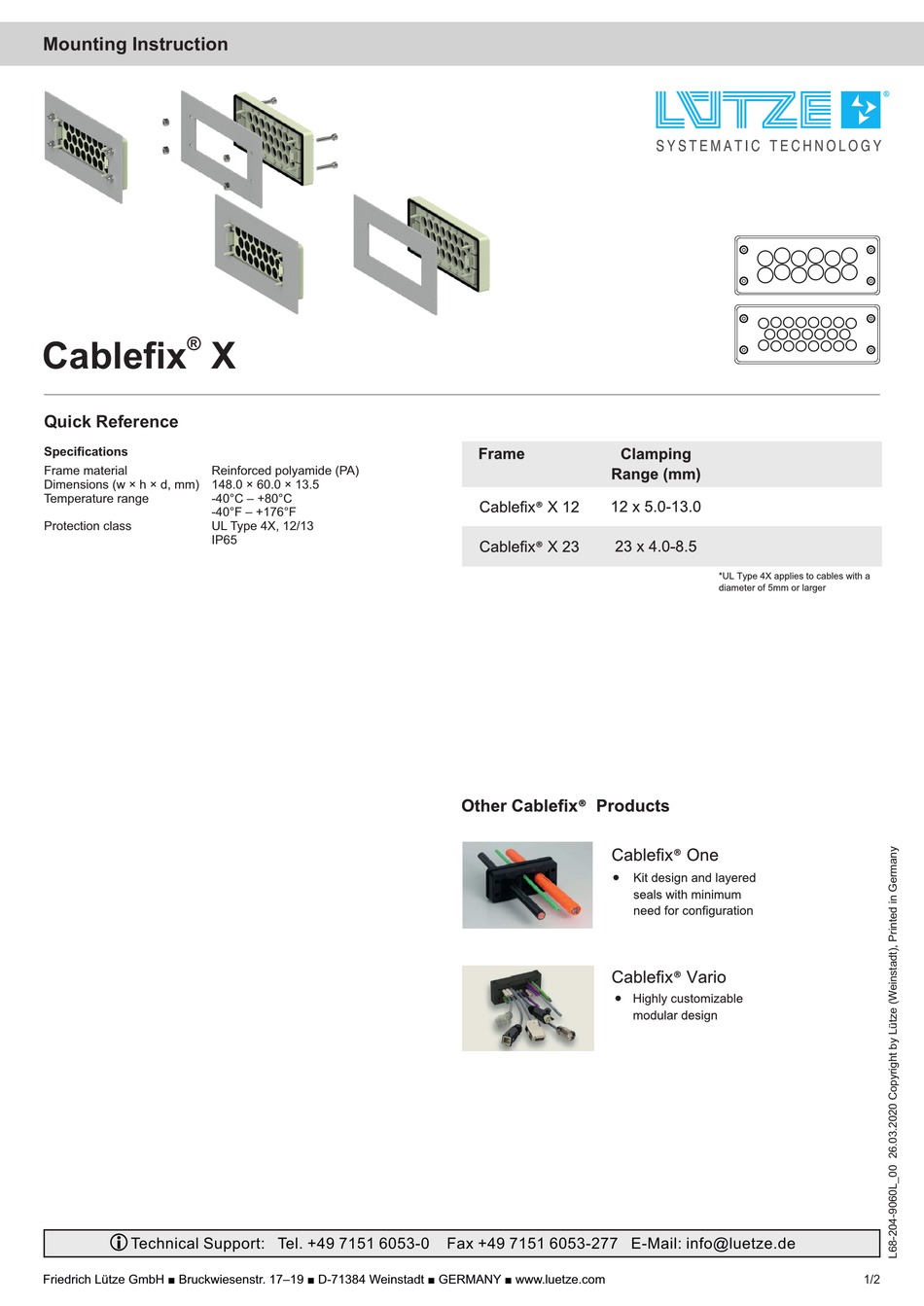

Mounting Instruction
®
Cablefix X
Quick Reference
Specifications
Frame material
Reinforced polyamide (PA)
Dimensions (w × h × d, mm) 148.0 × 60.0 × 13.5
Temperature range
-40°C – +80°C
-40°F – +176°F
Protection class
UL Type 4X, 12/13
IP65
i
Technical Support: Tel. +49 7151 6053-0
Friedrich Lütze GmbH ■ Bruckwiesenstr. 17–19 ■ D-71384 Weinstadt ■ GERMANY ■ www.luetze.com
Fax +49 7151 6053-277 E-Mail: info@luetze.de
1/2
Advertisement
Table of Contents
Related Manuals for Lütze Cablefix X
Summary of Contents for Lütze Cablefix X
- Page 1 Mounting Instruction ® Cablefix X Quick Reference Specifications Frame material Reinforced polyamide (PA) Dimensions (w × h × d, mm) 148.0 × 60.0 × 13.5 Temperature range -40°C – +80°C -40°F – +176°F Protection class UL Type 4X, 12/13 IP65 Technical Support: Tel.
- Page 2 Pull ® to 1.0 Nm. Cablefix X model. lightly back on the cable to engage the seal. All unused entry points are sealed by default. 2. Installation using Snap-In Version 2.1 When using snap-in version, the frame can...
