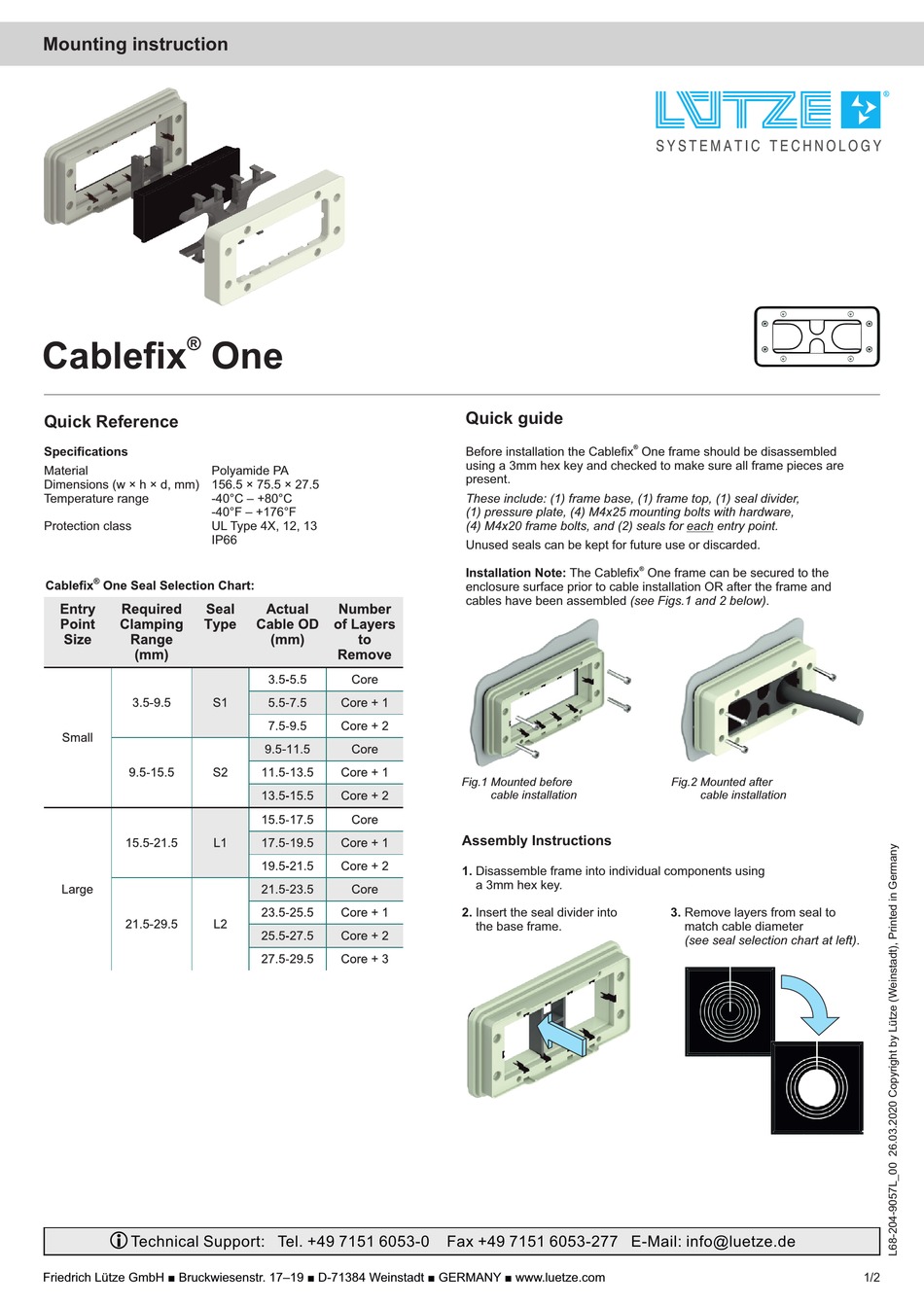

Lütze Cablefix One Mounting Instruction

Mounting instruction
®
Cablefix One
Quick Reference

Specifications

Material Polyamide PA
Dimensions (w × h × d, mm) 156.5 × 75.5 × 27.5
Temperature range -40°C – +80°C
-40°F – +176°F
Protection class UL Type 4X, 12, 13
IP66
i
Technical Support: Tel. +49 7151 6053-0
Friedrich Lütze GmbH ■ Bruckwiesenstr. 17–19 ■ D-71384 Weinstadt ■ GERMANY ■ www.luetze.com
Quick guide
Before installation the Cablefix One frame should be disassembled
using a 3mm hex key and checked to make sure all frame pieces are
present.
These include: (1) frame base, (1) frame top, (1) seal divider,
(1) pressure plate, (4) M4x25 mounting bolts with hardware,
(4) M4x20 frame bolts, and (2) seals for each entry point.
Unused seals can be kept for future use or discarded.
Installation Note: The Cablefix One frame can be secured to the
enclosure surface prior to cable installation OR after the frame and
cables have been assembled (see Figs.1 and 2 below).
Fig.1 Mounted before
cable installation

Assembly Instructions

1. Disassemble frame into individual components using
a 3mm hex key.
2. Insert the seal divider into
the base frame.
Fax +49 7151 6053-277 E-Mail: info@luetze.de
®
®
Fig.2 Mounted after
cable installation
3. Remove layers from seal to
match cable diameter
(see seal selection chart at left).
1/2
