TERK Technologies BMS58 Install Manual

The TERK 5x8 Multiswitch works as a diplexer,
combining your satellite and TV antenna (or cable)
signal. It then works as a splitter allowing the
combined signal to go to 8 different locations
Limited Warranty
TERK Technologies Corp. (TERK) warrants this product against defects in
materials or workmanship for one (1) year from the date of purchase.
During this warranty period, this product will be replaced without charge.
This warranty does not cover any damage due to acts of nature, commercial
use, accident, misuse, abuse or negligence. This warranty is only valid in
the USA. Replacement as provided under this warranty is the exclusive
remedy of the consumer. TERK shall not be liable for any incidental or
consequential damages for breach of any express or implied warranty on
this product, except to the extent that limitations of this sort are prohibited
by applicable law. THERE ARE NO IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURCHASE EXCEPT
TO THE EXTENT THAT IMPLIED WARRANTIES OF EITHER SORT ARE
REQUIRED BY APPLICABLE LAW, AND IN SUCH CASE, EACH WARRANTY IS
LIMITED IN DURATION TO ONE YEAR.

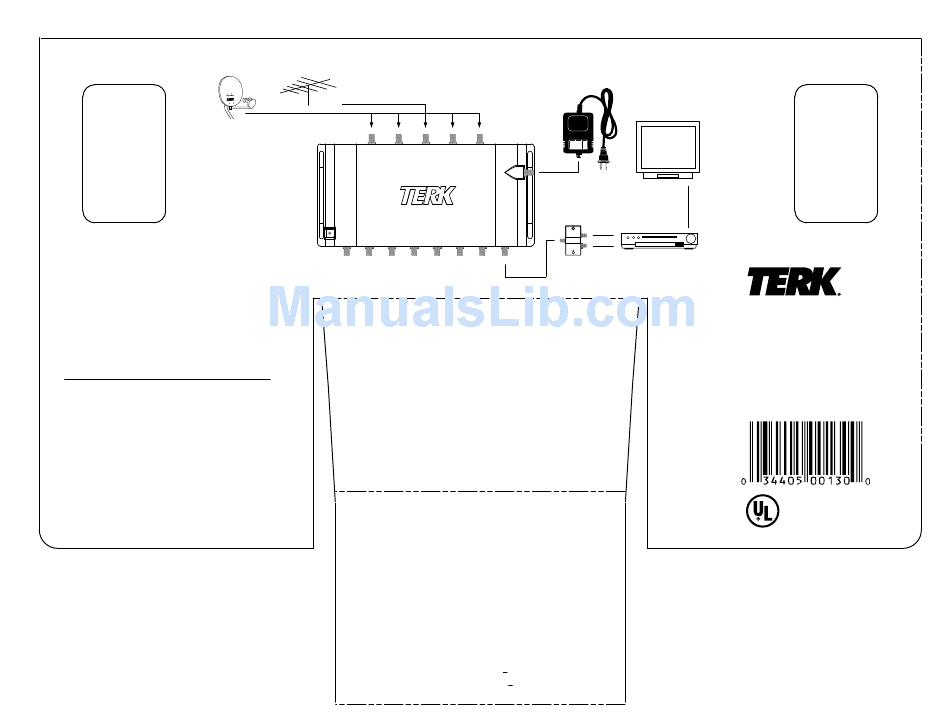

Follow the diagram below for installation
satellite antenna
Satellite A Antenna
Inputs CATV
ground
screw
To satellite receivers
Connect up to eight receivers
• Supplies signal for up to 8 satellite connections
• Compatible with single or multi-satellite systems
• No need to remove integrated multiswitches
• Ultra-low noise built-in amplifier
When connecting an antenna or cable signal to the
*
multiswitch you'll need a TERK diplexer (BDS-P1)
at each satellite receiver to separate the signal
back to TV antenna (or cable) and satellite.
Conveniently only 1 wire goes to each location!
Specs::
For Indoor and Outdoor use:
Input Frequency Range:
Output Frequency Range:
Insertion Loss:
Noise Figure:
Cross Polar Isolation:
Current Consumption:
Power Adapter:
22KHz Tone Output:
Satellite B
Inputs
DC power
(RG6 cable not included)
diplexer*
950 - 2150MHz
54 - 806MHz (UHF/VHF)
54 - 2150MHz (Each Output)
-5dB 54 - 806MHz
0dB 950 - 2150MHz
4.8dB min
30dB min
60mA
120 VAC 60Hz Input
24 VDC 1A Output
22 + 4KHz continuous,
650 + 300 mVp-p
television
satellite receiver
TERK and TERK Technologies
are trademarks of
TERK Technologies Corp.
Commack, NY
©2003 TERK Technologies Corp.
TiVo is a registered trademark of TiVo Inc.
Made in China
For additional information:
Call 1.800.942.TERK (8375) or
Visit www.terk.com
100P014
