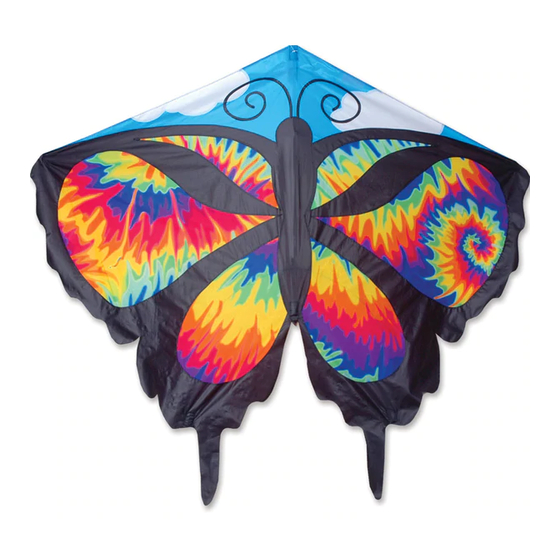

Premier Kites BUTTERFLY Assembly Instructions

PREMIER COLLECTIONS
Step 1:
Unroll kite and lay out flat facedown.
Outer Leading Edge Rod
x2
Tail Spreader Rod
upper
x2
lower
Upper Spreader Rod
x1
Wingtip Shaping Rod
x2
Antenna
Rod
Antenna
Connector
Vinyl Leading
Edge Connector
Spine
Rod
Step 5:
Insert uncapped ends of Lower Tail Spreader Rods into Upper Tail Spreader Rods. Insert capped ends of Lower Tail Spreader Rods into
Trailing Edge Pockets and tops of Upper Tail Spreader Rods into Tail Spreader Rod Connector on Spine Rod. (diagram D)
Step 3:
Antenna
Slide pre-inserted Antenna Rods out and into Antenna connector on Spine
Rod
Rod. Slide Antenna Connector up to nose of kite. (diagram B)
Step 4:
slide
Insert rubber-capped ends of Outer Leading Edge Rods into Leading Edge
Antenna
Sleeves and slide down to ends of sleeves. Insert other ends of Outer
Connector
up to nose Leading Edge Rods into connectors on pre-inserted Inner Leading Edge
of kite
Rods. Carefully insert Inner Leading Edge Rods into Vinyl Leading Edge
Connector on Spine Rod. (diagram C)
Spine B
Rod
Inner Leading
Edge Rod
Step 2:
Identify and organize struts according to diagram A.
Outer Leading
Edge Rod
connector
assembly instructions
Leading Edge
Sleeve
slide down to
end of sleeve
A
C
