Honda Turn Signal System

Thank you for purchasing XTC Power Products Automatic Self-Canceling Turn Signal System. Our Easy Install Turn Signal

System is unique from the other kits on the market. This kit is from our Plug & Play™ product line, with only connecting

power, ground and plugs into the OEM Tail Light Harness, utilizing the brake lights as Brake and Turn Signals.

Please read the instructions fully and familiarize yourself with the components before starting the install. Remember

that these are basic instruction and you can install in other locations if desired, so feel free to be creative. The only

two places that have to interface is at the Rear Wire Harness and at the AUX Power Port next to the Power Steering.

NOTE: When installing make sure that wires are run away from any hot or moving parts and properly secured.

1. Remove the hood and the dash cover by removing 9 Allen Screws, this gives access to inside the Dash

Table of Contents

Need help?

Do you have a question about the Turn Signal System and is the answer not in the manual?

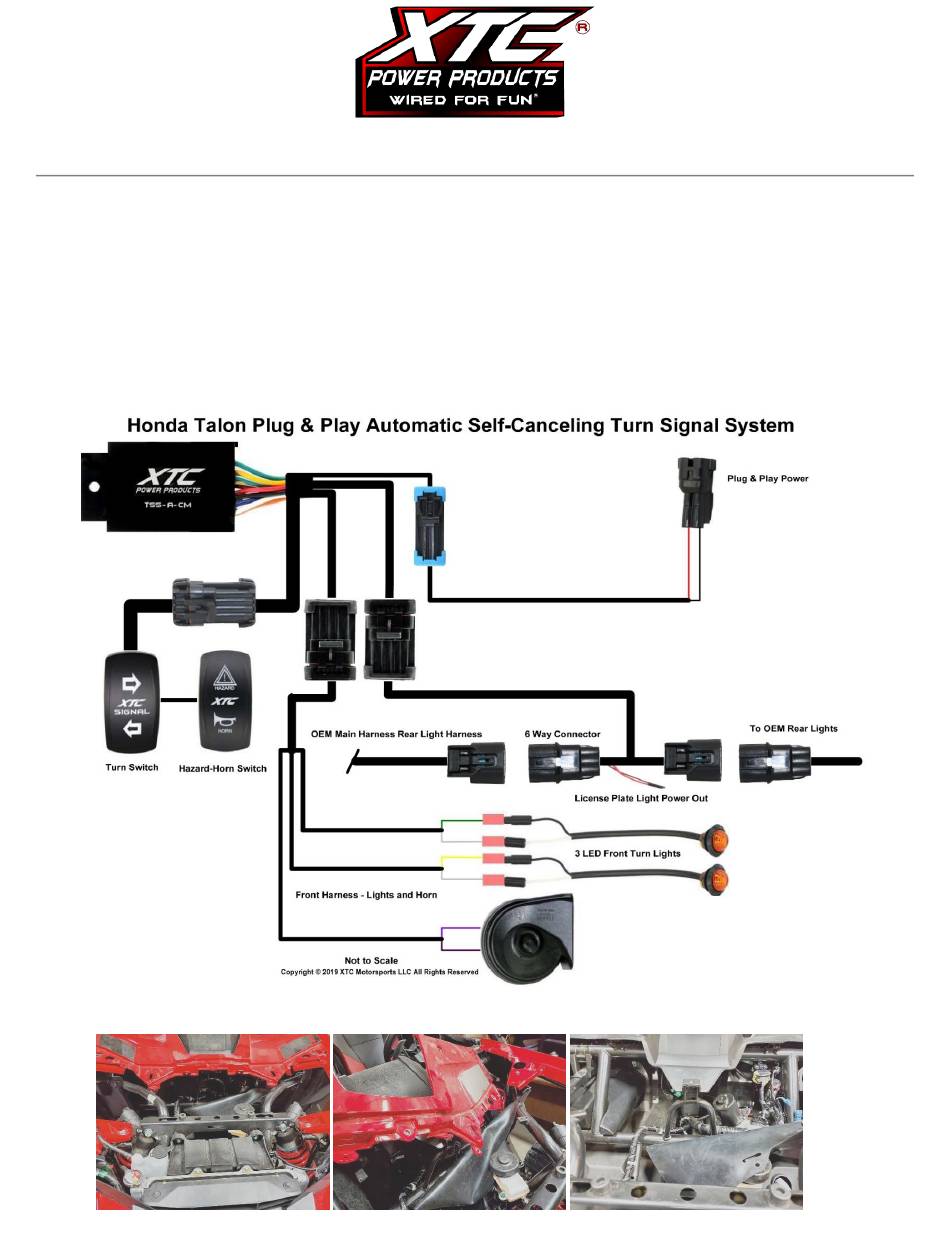

Page 1 Honda Turn Signal System Thank you for purchasing XTC Power Products Automatic Self-Canceling Turn Signal System. Our Easy Install Turn Signal System is unique from the other kits on the market. This kit is from our Plug & Play™ product line, with only connecting power, ground and plugs into the OEM Tail Light Harness, utilizing the brake lights as Brake and Turn Signals.
Page 2 Remove Center Console Plastics and Rear Box Cover to run rear harness. 2. Using the provided Self Tapping Screw mount the Control Module under the hood on the bar as shown. Since it is small and light it can also be strapped to the main power harness with the included cable ties. 3.
Page 3 6. Install Turn Switch – There are several places the Turn Switch can be mounted, so user preference may dictate where they are mounted. They can be mounted in the upper left-hand corner of the dash or mount the turn switch on the left-hand side of the steering wheel shown below with the arrow and mount the Horn/Hazard on the right side of the steering wheel.
Page 4 480-558-8588 www.xtcpowerproducts.com Disclaimer: This kit is intended for off road use only and XTC Motorsports claims no responsibility for its use. It is up to the purchaser to make sure it complies with all Federal, State and Local laws. R1...
