XTC Turn Indicator Kit Instructions

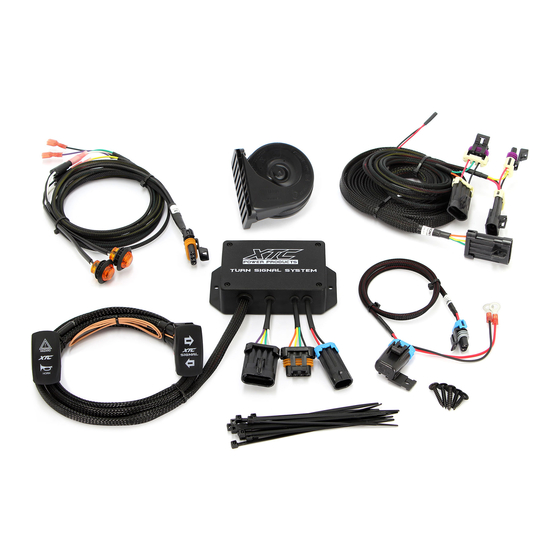

Thank you for purchasing XTC Power Products Turn Signal System. Our Turn System is unique from the other kits on the market.
Our Kit is plug and play with only power and ground to hook up and plug into the factory harness and use the factory rear brake
lights. Since these vehicles are used primarily for off road use, we use a turn switch on the dash, instead of those cumbersome
turn levers that break off.
Please read the instructions fully and familiarize yourself with the components before starting the install. Remember that
these are basic instruction and you can install in other locations if needed.
NOTE: When installing make sure that wires are run away from any hot or moving parts and properly secured.
1. Remove the hood and both tail lights. Note: We found removing the front skid plate can make it easier to run the cable,
but it can be installed without removing it by removing the seat.
2. Using the provided screws mount the control box in the open Cavity or on the clear area on the right side.
3. Drill a 3/8" hole in the side of the opening and mount the horn using the nut provided. Hook the violet wire and black
ground wire to the horn terminals.
4. Unroll the long cable. Start from the rear of the car and take the 4-pin connector and slide it into the engine area
following the rear factory wires to over the engine, pull it all the way through until the license plate light wires are lined
up with the rear wire harness. Run the longer cable with the green wire over to the right rear light and up into the rear
light housing and secure with provided cable ties to the frame trunk supports. Run the short yellow set over to the left
side and secure to supports.
Honda Pioneer 1000 Turn Indicator Kit
