Page 1: Table Of Contents
Table of Contents Package Contents LED Indicators & Buttons Hardware Installation Software Setup Using Mac computer Using iPhone/iPad Using Android phone or tablet Using Microsoft Windows 10 WiFi Using Ethernet cable (optional, Windows only) -
Page 2: Package Contents

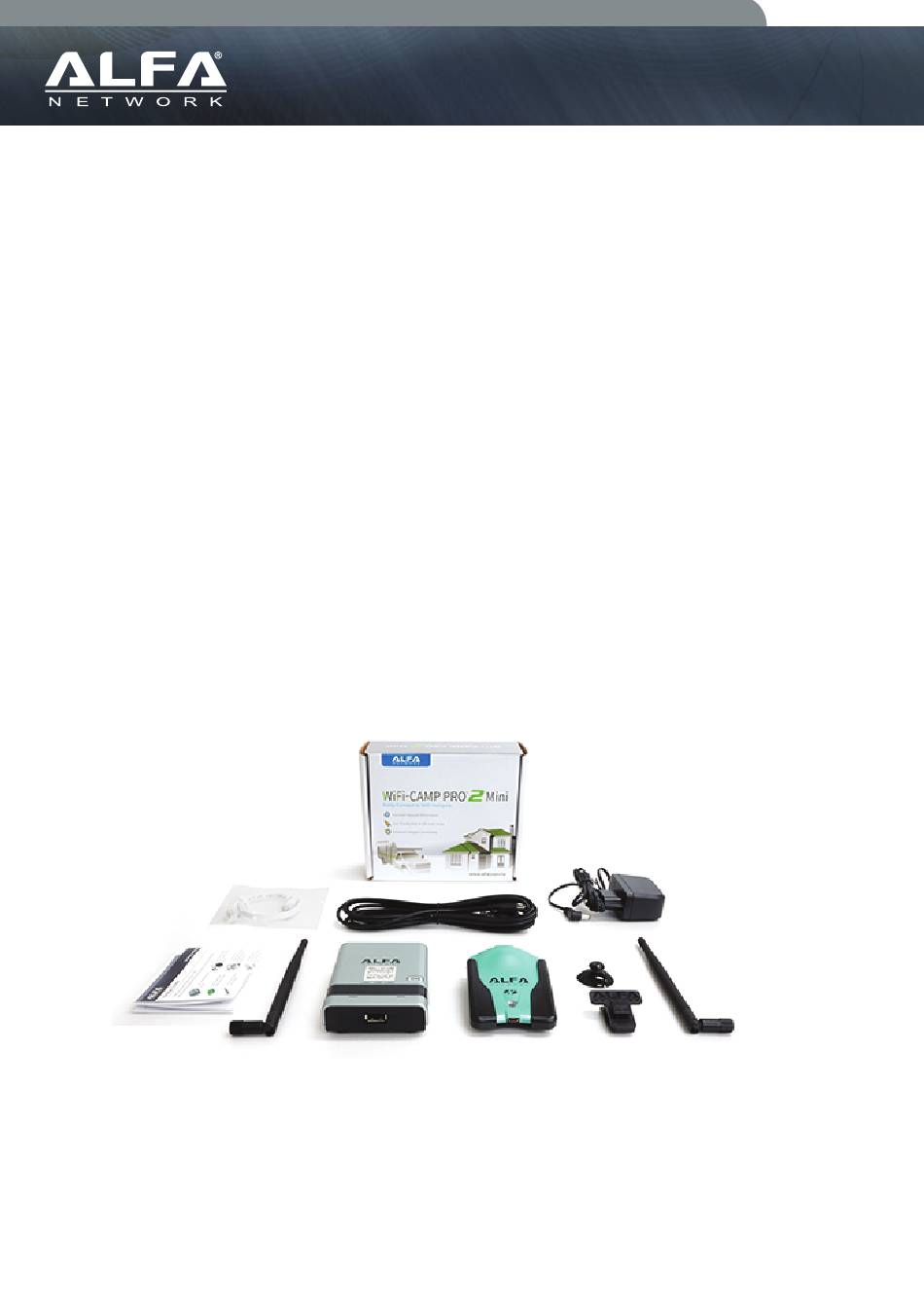

Camp Pro Mini 2 Package Contents: • 1 x DC power adapter for • 1 x R36A Router R36A Router 1 x AWUS036NH USB • 1 x USB cable for • wireless signal receiver connecting R36A Router and AWUS036NH 2 x Indoor Omni-antenna •... -
Page 3: Led Indicators & Buttons
LED Indicators & Buttons Reset LED Indicator Descrip�ons On - Power on PWR (Blue) Off - No power On - Device is running properly SYS (Blue) Blinking - Device is sending or receiving data On - LAN port is connected Off... -
Page 4: Hardware Installation
Hardware Installation Omni-antenna Omni-antenna R36A Power Cable Router Adapter AWUS036NH 1. Attach one of the Omni-antennas to AWUS036NH. 2. Attach the other Omni-antenna to the R36A router. 3. Connect AWUS036NH to R36A router using USB cable provided. 4. Connect the power adapter to R36A router. Allow 90 seconds for R36A to fully boot up. -
Page 5: Using Mac Computer
Using Mac Computer to Access Setup Via WifI Connection On your Mac computer, click the WiFi icon at the top right of your screen. Look for the WiFi network called “WiFiCampPro2-xxxxxx” and connect to it. Open your web browser, and type “alfa.myalfasetup.com”... -
Page 6: Using Iphone/Ipad
Using iPhone / iPad to Access Setup Via Wireless Connection On your iPhone or iPad, go to Settings > WiFi and connect to the network called: “WiFiCampPro2-xxxxxx” After connecting you will be automatically redirected to the log in page. Or scan QR code on top of R36A router using your phone’s QR code reader app. -
Page 7: Using Android Phone Or Tablet
Using Android Device to Access Setup Via WiFi Connection On your Android phone or tablet, go to Settings > WiFi and connect to the network called “WiFiCampPro2-xxxxxx” Open your web browser app (like Google Chrome), and type in “alfa.myalfasetup.com” “192.168.36.1” in the address bar. Or scan QR code on top of R36A router using your phone’s QR code reader app. -
Page 8: Using Microsoft Windows 10 Wifi
Using Microsoft Windows to Access Setup Via WiFi Connection On your Microsoft Windows computer, click on the WiFi icon at the bottom right corner of the screen. Look for the WiFi network called “WiFiCampPro2-xxxxxx” and connect to it. Open your web browser, and type-in “alfa.myalfasetup.com”... - Page 9 Setup (For All Device Types) Connecting to Campground or Hotspot Internet After logging-in, the setup wizard will scan for nearby WiFi signals automatically. The list of available signals will be displayed on the screen. If you have previously set up your Camp Pro Mini you may need to click or tap “Easy Setup”...
- Page 10 Setup - In the Hotspot Con guration menu, enter the Wi-Fi password for the campground WiFi or the network you are extending into the Hotspot Password eld. The Hotspot Password is the security key or passkey for your campground network or the network you are trying to extend Secure Wireless Network for Your Smartphones, Tablet, and Computers - Then, in the “Network Password”...
- Page 11 Setup Please wait 60 seconds for password to be verifed. This screen should be shown: Internet Access Via Wireless Connection After 60 seconds, on your computer or device nd the network named “WiFiCampPro2-xxxxxx”, then connect to it again. Because the network is now password protected, you will be prompted for your password.
- Page 12 Setup - Troubleshooting WiFi Authenication Failed This screen appears when there is an error in the “Hotspot Password” section. Click the red “Retry” button and ensure the password is typed correctly in the “Hotspot Password” section. Be aware of capital letters or numbers. If on a mobile device make sure the rst letter is not being auto-capitalized.
- Page 13 Setup - Troubleshooting Can’t reach this page/Site can’t be reached Make sure computer or device is connected to WiFiCampPro2-xxxxxx WiFi network. If computer or device is connected to a di erent WiFi network, the setup IP address will not work. If computer or device is connected to WiFiCampPro2-xxxxxx WiFi network but...
-
Page 14: Using Ethernet Cable (Optional, Windows Only)
Setup Using Microsoft Windows Wired Connection Internet Access Via Wired Connection Connect Ethernet cable to you computer and then to the R36A router via the LAN1 port. LAN2 PoE LAN1 When Ethernet connection is made, the LAN1 LED will be “ON”. Then Open your web browser, and type-in “alfa.myalfasetup.com”... - Page 15 Setup using Microsoft Windows Wired Connection Connecting to Campground or Hotspot Internet After logging-in, the setup wizard will scan for nearby WiFi signals automatically. The list of available signals will be displayed on the screen. If you have previously set up your Camp Pro Mini you may need to click or tap “Easy Setup”...
- Page 16 Setup using Microsoft Windows Wired Connection - In the Hotspot Con guration menu, enter the Wi-Fi password for the campground WiFi or the network you are extending, into the Hotspot Password eld. The Hotspot Password is the security key or passkey for your campground network or the network you are trying to extend Secure Wireless Network for Your Smartphones, Tablet, and Computers - Then, in the “Network Password”...
- Page 17 Setup using Microsoft Windows Wired Connection Please wait 60 seconds for password to be verifed. This screen should be shown: Internet Access Via Wired Connection You should now be connected. Open your web browser and try to connect to the Internet. Connection status will be shown on the status screen.
