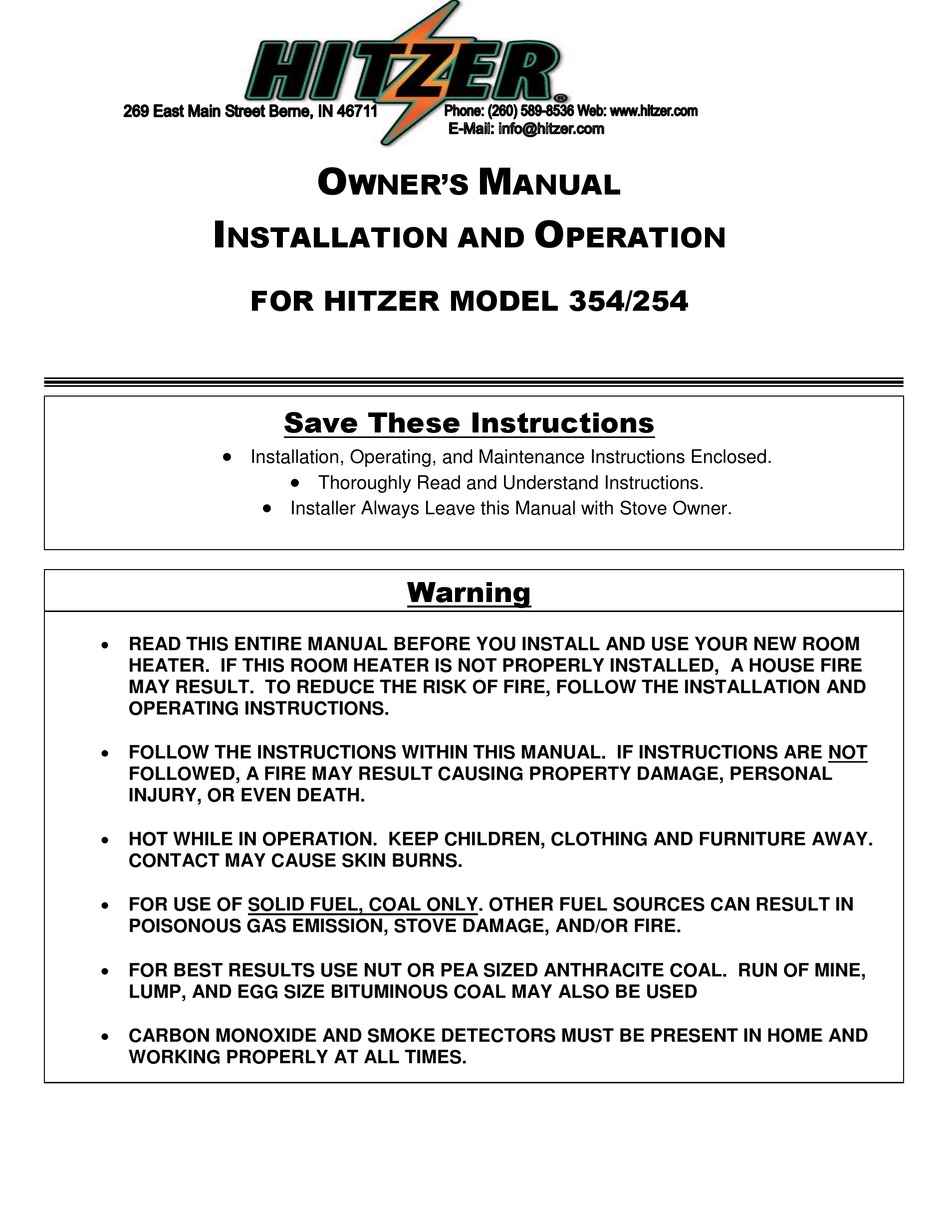

I
NSTALLATION AND
FOR HITZER MODEL 354/254
Installation, Operating, and Maintenance Instructions Enclosed.
 READ THIS ENTIRE MANUAL BEFORE YOU INSTALL AND USE YOUR NEW ROOM
HEATER. IF THIS ROOM HEATER IS NOT PROPERLY INSTALLED, A HOUSE FIRE
MAY RESULT. TO REDUCE THE RISK OF FIRE, FOLLOW THE INSTALLATION AND
OPERATING INSTRUCTIONS.
 FOLLOW THE INSTRUCTIONS WITHIN THIS MANUAL. IF INSTRUCTIONS ARE NOT
FOLLOWED, A FIRE MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL
INJURY, OR EVEN DEATH.
 HOT WHILE IN OPERATION. KEEP CHILDREN, CLOTHING AND FURNITURE AWAY.
CONTACT MAY CAUSE SKIN BURNS.
 FOR USE OF SOLID FUEL, COAL ONLY. OTHER FUEL SOURCES CAN RESULT IN
POISONOUS GAS EMISSION, STOVE DAMAGE, AND/OR FIRE.
 FOR BEST RESULTS USE NUT OR PEA SIZED ANTHRACITE COAL. RUN OF MINE,
LUMP, AND EGG SIZE BITUMINOUS COAL MAY ALSO BE USED
 CARBON MONOXIDE AND SMOKE DETECTORS MUST BE PRESENT IN HOME AND
WORKING PROPERLY AT ALL TIMES.
O
WNER'S
Save These Instructions
Thoroughly Read and Understand Instructions.
Installer Always Leave this Manual with Stove Owner.
Warning
M
ANUAL
O
PERATION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 354 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hitzer 354

Summary of Contents for Hitzer 354

  • Page 1 WNER’S ANUAL NSTALLATION AND PERATION FOR HITZER MODEL 354/254 Save These Instructions  Installation, Operating, and Maintenance Instructions Enclosed.  Thoroughly Read and Understand Instructions.  Installer Always Leave this Manual with Stove Owner. Warning  READ THIS ENTIRE MANUAL BEFORE YOU INSTALL AND USE YOUR NEW ROOM HEATER.

  • Page 2: Safety Notice

    I. Welcome to Hitzer Family Hitzer Inc. welcomes you to a proud and unified team of Hitzer stove owners. Thank You for your recent purchase of a Hitzer Stove. We can assure you that your Hitzer stove has the finest Swiss Amish Craftsmanship.

  • Page 3: Flue Systems

    It is also important to abide by the rules and regulations of local jurisdictions upon chimney installation. Like masonry chimneys, you can only have one appliance per chimney, and it is not permissible to connect the Hitzer Stove to a chimney that is servicing another appliance.
  • Page 4 Hitzer stove. The flue size for the model 354 should be a minimum of 7 inches in diameter. The flue size for the model 254 should be a minimum of 6 inches in diameter.

  • Page 5: Installation Of Stove

    Connection of stove to the chimney should be made as directly as possible and not more than two bends when needed should be used. No reduction in flue pipe below 7 inches diameter for Model 354 and 6 inches for Model 254 heater outlet should be used. The pipe connecting the stove to the chimney should be at least 24 gauge.
  • Page 6 per joint. A manual or barometric damper is recommended to maintain a chimney draft between -.03 to -.06 inches of water (inch wc). Draft should never exceed -.08 (inch wc).
  • Page 7 354/254 Clearance Diagram Front Front Clearance to Combustibles Floor Protection Minimum Clearances to Combustible Materials and Floor Model 354 Model 254 Protection Sides of Unit to Combustibles 18” 18” 24” 18” Back of Unit to Combustibles Floor Protection – Unit to Front 16”...

  • Page 8: Operation Of Stove

    IV. OPERATION OF STOVE WARNING: ALWAYS USE A CARBON MONOXIDE DETECTOR AND A SMOKE DETECTOR WHEN USING THIS APPLIANCE. CAUTION: DO NOT USE CHEMICALS OR FLUIDS TO START THE FIRE. NEVER USE GASOLINE, KEROSENE, CHARCOAL LIGHTER FLUID, OR ANY TYPE OF FLAMMABLE FLUID TO START OR “FRESHEN UP”...
  • Page 9 Starting A Bituminous Coal Fire: Bituminous coal is much easier to start because it is more volatile. Take several sheets of newspaper, crumble into balls and place on top of grates. Next, lay fine kindling on top of the paper. The kindling must be dry and no larger than 3/4”...
  • Page 10 Shaking And Reloading: When burning Anthracite coal, it will be necessary to shake the grates morning and evening. Shaking should consist of short fast strokes. Continue shaking until small live coals are falling into the ash pan the whole way along each grate. If you stop shaking with just a few red coals falling into the ash pan the ash will build up on the grates causing the fire to be sluggish.
  • Page 11 This could cause the cord to melt creating an electrical hazard. The blowers should be cleaned of dust and dirt periodically. Replace only with original blower available from your Hitzer dealer. CAUTION: ALWAYS DISCONNECT UNIT FROM POWER SOURCE BEFORE...
  • Page 12 9”(228.6mm) x 15 9/16”(395.2mm), 354 5mm x 9”(228.6mm) x 17 7/16”(443mm)) available from your Hitzer dealer. Use of any other type of glass can cause glass to fail creating a fire hazard. Should you be required to replace the glass first remove door from your stove and lay face down on a smooth solid surface.

  • Page 13: Limited Warranty Agreement

    Hitzer, Inc., said original purchaser shall send said defective part to the aforementioned offices of Hitzer Inc. for determination therewith to be made by Hitzer Inc. Hitzer, Inc., should it determine that said component was defective, shall thereafter replace said component at no cost to the original purchaser.
  • Page 14 In order for the above stated limited warranty to be effective and binding upon Hitzer, Inc., this portion herein must be detached and sent by the original owner to Hitzer, Inc. at the above stated address within ten (10) days from the date of purchase of said stove.
