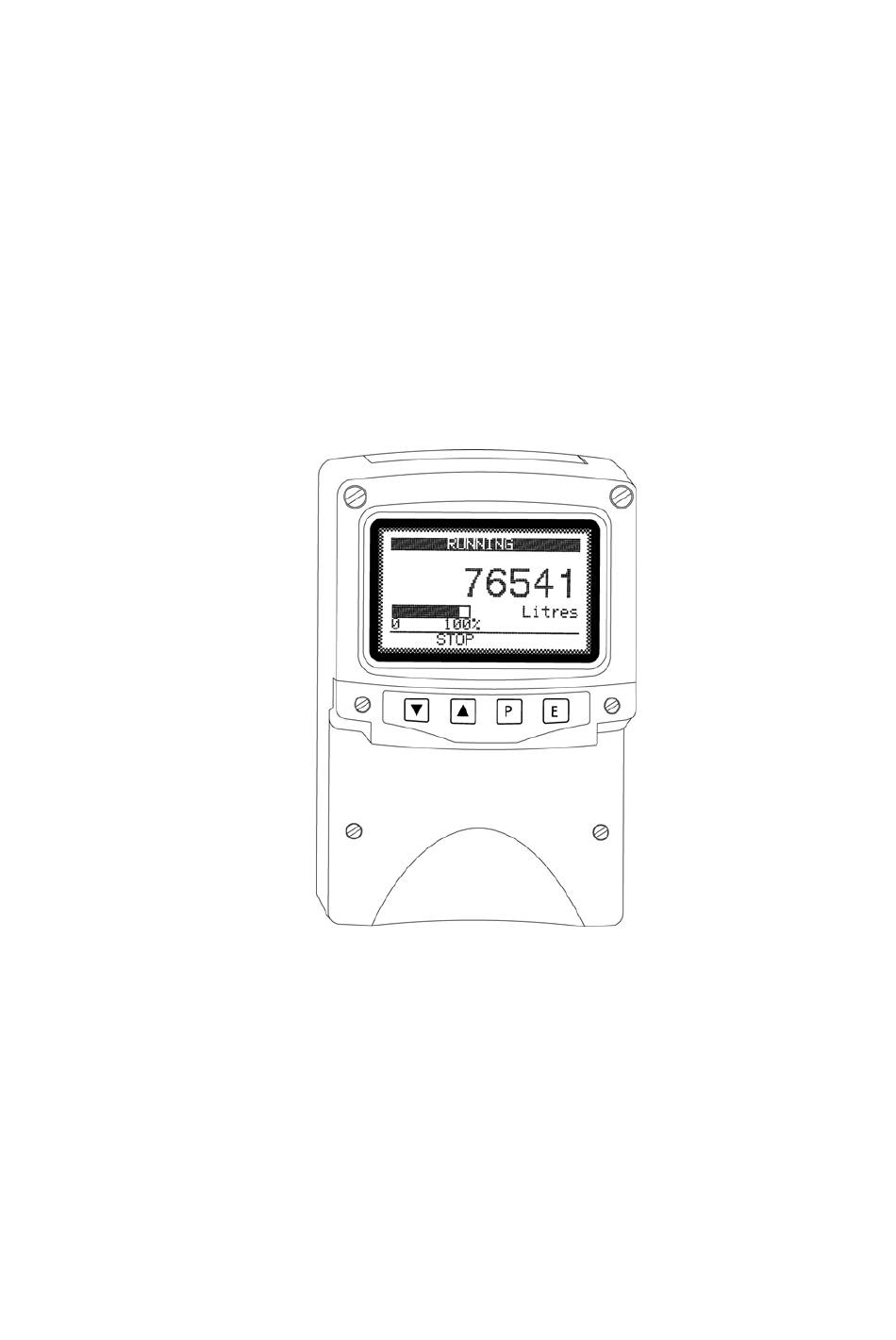

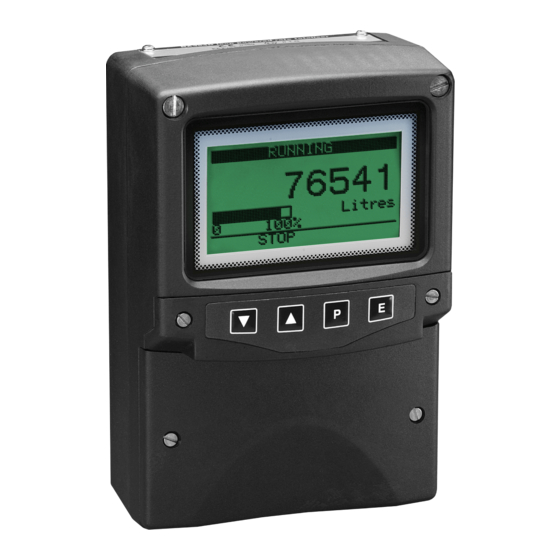

BA454D
Intrinsically safe
Field mounting
Batch Controller
Issue 12
Issue:
12
th
29
August 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BA454D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BEKA BA454D

  • Page 1 BA454D Intrinsically safe Field mounting Batch Controller Issue 12 Issue: August 2014...
  • Page 2: Table Of Contents

    6.4.16 Display Appendix 3 ATEX dust certification Appendix 4 FM & cFM Approval for use in USA and Canada. The BA454D is CE marked to show compliance with the European Explosive Atmospheres Directive 94/9/EC and the European EMC Directive 2004/108/EC...
  • Page 3: Description

    European ATEX Directive for use in explosive gas and combustible dust atmospheres. Dust certification is an option, see Appendix 3. The BA454D is also FM approved for use in the USA and cFM approved for use in Canada, these approvals are described in Appendix 4.
  • Page 4: Operator Controls

    After resetting the screen displays ‘Ready’. Input signals are ignored until the Start button is operated. Note: selectable options Fig 2 Simplified block diagram of BA454D modify the reset function. 2.1 Operator Controls Quick Restart eliminates the need to BA454D...
  • Page 5: Power Supply Failure

    3.2 Zones, gas groups and T rating 2.2 Power supply failure The BA454D has been issued with EC Type If the power supply for the BA454D fails during Examination certificate ITS03ATEX21378 a batch, the instrument will remember the...
  • Page 6: Power Supply

    –20 to +60 The maximum permitted capacitance and inductance for the cable plus the transducer This allows the BA454D to be installed in all connected to terminals 11 & 12 in a IIC Zones and to be used with most common hydrogen gas are: industrial gases.
  • Page 7: Switch Outputs

    2.4mA dc those specified for simple apparatus in Clause 5.4 of EN50020:2002. This allows each of the BA454D switch outputs to be connected to any A wire link may be connected between the intrinsically safe circuit protected by a certified...
  • Page 8: System Design For Hazardous Area

    In addition to the EC-Type Examination Certificate, ITS issued two System Certificates for the BA454D batch controller. One defines how the BA454D may be used with Zener barriers and the other with galvanic isolators. Both are divided into two sections to cover input signal sources in the hazardous and the safe area.
  • Page 9: Pulse Inputs

    When programmed to operate with a proximity 4.2.2 Pulse inputs detector, the maximum input frequency of the As shown in Figs 3 and 4 the BA454D batch BA454D batch controller is 5kHz. controller may be connected to a wide variety of pulse transducers and sources in the hazardous or safe area.
  • Page 10: 4/20Ma Analogue Input

    24V dc power supply via a factory fitted outputs 4, 5 and 6. 330 resistor. WARNING These switch outputs should not be used for critical safety applications. When the BA454D power supply is turned off or disconnected, all BA454D switch outputs will open.
  • Page 11: Inputs

    4.3.2 Inputs When the batch controller is powered from a galvanic isolator, the pulse and analogue inputs remain the same as described in sections 4.2.2 and 4.2.3. Only when the input transducer or source is in the safe area, as shown in Fig 7, are galvanic isolators required in the input circuit.
  • Page 12: External Switches

    4.4 External switches 4.5 Inhibit link For applications requiring the batch controller Linking terminals 18 and 20 together inhibits to be operated via large industrial push- the batch controller input. If linked during a buttons, four external switches may be batch, dispensing will continue but the batched connected as shown in Fig 2.
  • Page 13: Installation

    5. INSTALLATION 5.1 Location The BA454D batch controller is housed in a robust IP66 glass reinforced polyester (GRP) enclosure incorporating an armoured glass window and stainless steel fitting. It is suitable exterior mounting most industrial environments, including off-shore and waste water treatment installations.
  • Page 14 Fig 10 Dimensions and terminal connections...
  • Page 15: Configuration Menus

    Functions offer a choice of options or an invitation to enter a 6.2 Navigation variable. The BA454D is configured via the four front panel push-buttons which are identified with a To select an option in a function menu printed legend.
  • Page 16: Default Configuration

    Clip-Off 00000.0 6.3 Default configuration Unless otherwise requested at the time of Default parameters may be globally restored ordering, BA454D batch controllers will be see section 6.4.13 supplied configured as follows: System Settings Language English Operator control Both Local &...
  • Page 17 BLANK PAGE...
  • Page 18 Fig 11 System Settings Fig 11 System Settings...
  • Page 19: System Settings

    See Fig 11. Note: Only necessary when 4/20mA input is used 6.4.1 Language When the BA454D batch controller is supplied The BA454D can display operating messages the analogue current input will have been and menus in three different languages: accurately...
  • Page 20: Restart

    Only available when factory fitted option is dispensed. Before another installed in the BA454D batch controller. batch can be started the Reset Configuration is the same as for Output 2, push-button must be operated. except terminal numbers are: The screen will then display ‘Ready’.
  • Page 21: Defaults

    If ‘Clear G Total’ is highlighted and the E 6.4.14 Security pushbutton operated, a second screen will be A summary of instrument security is contained presented. To confirm that the Grand Total is in section 6.1 of this manual. to be zeroed highlight ‘Continue’ and press E which will result in the instruction being This security function enables the four digit executed.
  • Page 22: Operator Screens Appendix

    6.4.15 Operator Screens 6.4.17.2 Control 3 The user screen may be selected from six This output is identical to Control 2 except different formats that are shown in Appendix 1. delays are defined by CONTROL3delay and CONTROL3stop. They show different information and have different display sizes so that the operator is only presented with the essential information 6.4.17.3 Flow alarm...
  • Page 23 BLANK PAGE...
  • Page 24 Fig 14 Batch Settings...
  • Page 25: Batch Settings

    6.5 BATCH SETTINGS 6.5.2 Scale Factors (Non-linear pulse See Fig 14. inputs) The k factor of a flowmeter is the number of 6.5.1 Scale Points (Non-linear pulse inputs) output pulses that it produces per unit volume This and the following Scale Factors function e.g.
  • Page 26: Scaling (4/20Ma Input)

    Volume displayed = Number of input pulses The BA454D rate display represents litres per Scale Factor second but the total batched display is required in UK gallons. If the Scale Factor is set to the flowmeter’s k factor, the batch controller will display volume Scale Factor = Units of batched display in the flowmeter’s engineering units.
  • Page 27: Batch Limit

    6.5.7 Batch Limit 6.5.10 Select Batch To prevent accidental over-filling, the Batch This allows the batch controller’s operating Limit defines the maximum batch that may be setpoint to be selected from the nine pre- dispensed. If a batch setpoint greater than the entered setpoints.
  • Page 28: Control2Stop

    6.5.13 CONTROL2stop (Control 2 Pre-Stop) If the flow alarm has been assigned to one of Control 1 is de-energised when the batched the outputs, overrun compensation will be total equals the batch setpoint. Control 2 may calculated using product dispensed be de-energised at the same time, or a between Control 1 being de-energised and the programmable batch quantity before the batch...
  • Page 29 BLANK PAGE...
  • Page 30 Fig 16 Rate Settings...
  • Page 31: Rate Settings

    6.6.4 Rate Legend The BA454D batch display is in UK gallons but This function enables the units of the rate the rate display is required in litres. display to be entered. Up to six upper and...
  • Page 32: Rate Filter

    6.6.6 Rate Filter Smoothing: 2 The BA454D contains a digital filter with two Jump-Out: 4 independent adjustable parameters enabling the rate display frequency response to be 1..9 = Light..Heavy / 1..9 = Fine..Coarse tailored for optimum performance. Smoothing Amount of filtering applied (time constant).
  • Page 33: Calibration Examples

    7. CALIBRATION EXAMPLE The Operator Menu is not to be protected by a security code, but the Configuration Menus are In this example a BA454D batch controller is to be protected by code 1209. required to control the dispensing of a liquid into a tank as shown in Fig.
  • Page 34 Batch Settings Function Setting Scale Factor Batch D.P. 0000000.0 Batch Legend Litres Batch Limit 1050.0 Batch Names Batch 1 Full Volume Batch 2 Half Volume Batch Size Full Volume 1000.0 Half Volume 500.0 CONTROL2delay 10 seconds CONTROL2stop 50.0 Count Mode Overrun Comp Rate Settings Function...
  • Page 35: Fault Finding During Commissioning

    If a BA454D fails after it has been functioning BA454D will not Input not Signal input correctly, the table shown in section 8.1 may count input correctly configuration.
  • Page 36: Tag Number

    9. ACCESSORIES 9.1 Tag number The BA454D can be supplied with a blank or custom engraved stainless steel plate secured by two screws to the side of the instrument enclosure. This plate can accommodate: 1 row of 9 alphanumeric characters 10mm high.
  • Page 37 10. INDEX Subject Section Subject Section ATEX Directive 3.1, 3.8 Menu Dust certification Appendix 3 Batch settings Configuration Backlight 6.4.3 Operator Batch Rate settings Cycles 6.5.18 System Decimal point D.P. 6.5.5 History 6.5.11 Operator Legend 6.5.6 Controls Limit 6.5.7 Display 6.4.16 Names 6.5.8...
  • Page 40 Appendix 2 Information menu...
  • Page 41: Atex Dust Certification

    Non European information may also be shown. A3.1 Zones and Maximum Surface Temperature The BA454D has been ATEX dust certified as Group II, Category 1 D Ex ia IIIC T80ºC Da (Tamb = -40ºC to +60ºC) IP66. The instrument serial number and date of...
  • Page 42: Fm & Cfm Approval For Use In

    FM Approvals, project identification 3033262. Copies Certificates of Compliance are available from the BEKA associates sales office, or may be downloaded from www.beka.co.uk A4.1 Intrinsic safety approval The BA454D batch controller is approved to the FM Class 3600 intrinsic safety Standard and Canadian Standard C22.2.
