Starting the Lawn Scarifier
This machine is operated by lifting the lever located underneath the top of the handlebar.
It is a two-stage process.
1. Press the grey lever locking catch.
2. Press the black operating lever.
The black lever increases the engine speed to a level that will engage the centrifugal clutch fitted to
the engine drive shaft.
Once the clutch has been engaged it will transfer the engine power to the rotor shaft that will rotate
at high speeds within the chassis of the Scarifier.
Height Adjustment
The height of the blades of the lawn Scarifier is altered using the two large knobs at the front of the
machine.
The top knob is connected to the centre of the front axle via a threaded rod. Rotating the knob in
each direction will raise or lower the front axle in relation to the main chassis of the machine and in
turn alter the height of the blades with the chassis.
The second knob located below the top knob on the threaded rod is used to fix the position of the
threaded rod and consequently the height of the blades relative to the front axle.
Lawn Scarifier

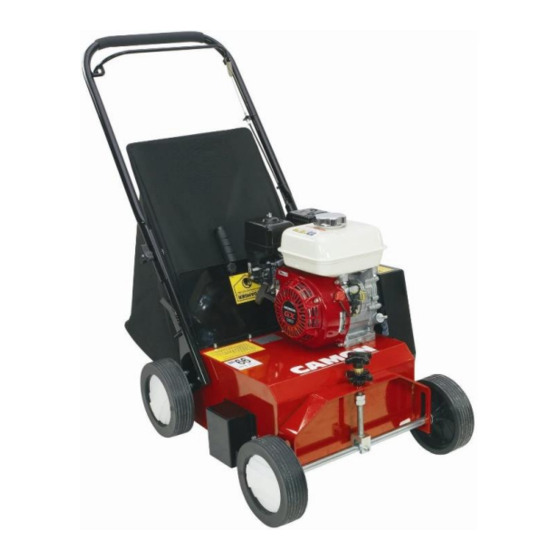

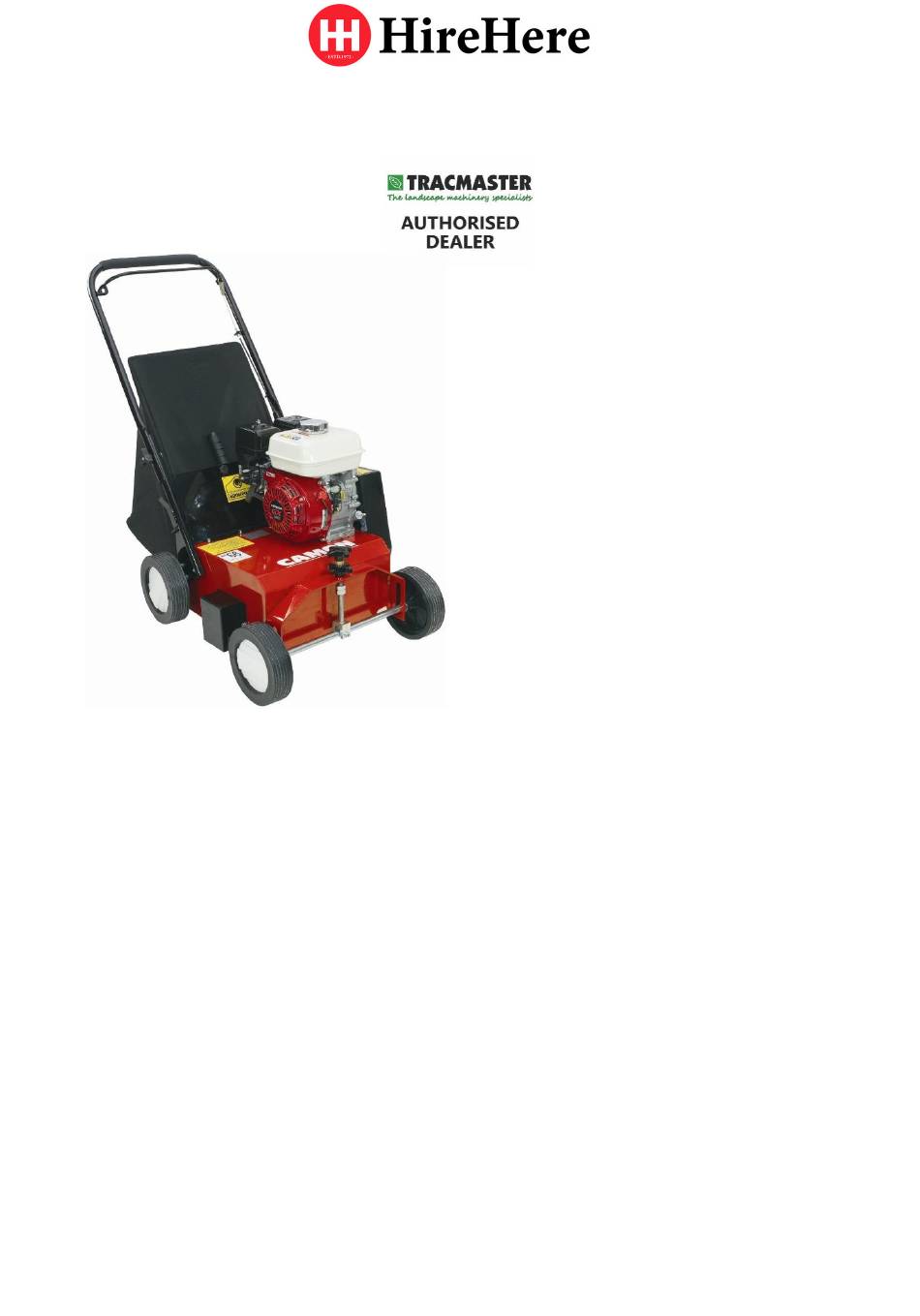

The CAMON LS42 Lawn Scarifier has been
designed by Tracmaster for removing the dead
thatch and moss from lawns and other grassed
areas.
The benefit of scarifying a lawn is that it allows
air, water and nutrients to reach the roots of the
grass whilst removing unwanted dead and foreign
material.
Page 1 of 6
Advertisement
Table of Contents
Related Manuals for Camon LS42
Summary of Contents for Camon LS42
- Page 1 Lawn Scarifier The CAMON LS42 Lawn Scarifier has been designed by Tracmaster for removing the dead thatch and moss from lawns and other grassed areas. The benefit of scarifying a lawn is that it allows air, water and nutrients to reach the roots of the grass whilst removing unwanted dead and foreign material.
- Page 2 Collection Bag The collection bag will collect the thatch and moss that is removed from a grass area. Use the central lifting handle when connecting or disconnecting the bag from the machine. Always stop the engine and wait for the blades to stop rotating before removing or replacing the collection bag.
- Page 3 Engine Safety Instructions • Always ensure the engine is turned off and fuel tap is turned off when transporting the machine, cleaning the machine, and making adjustments. • Always start the engine in the open air. Starting an engine within a confined space can lead to the inhalation of toxic substances.
- Page 4 Preparation of the Grass Area • Before scarifying can be carried out the grass must be cut short and be cleared of any objects such as stones, sticks, wires or bones that would damage the machine or be picked up and thrown by the rotating blades. •...
- Page 5 Lift the operating lever to engage the rotor shaft and walk at a slow steady pace pushing the machine ahead of you. • To turn the LS42 Scarifier 180 degrees, release the operating lever, put light downwards pressure on the handlebars and rotate the machine on its rear wheels. •...
- Page 6 WARNING: ALWAYS TILT THE LAWN SCARIFIER FORWARDS TO AVOID OIL IN THE ENGINE FLOODING INTO AREAS WHERE IT WILL CAUSE DAMAGE. Residual Risks of the Lawn Scarifier The rotor shaft will continue to rotate for a couple of seconds once the operating lever has been released.
