DIP DK-30 Instruction Manual

Hide thumbs

Advertisement

Table of Contents

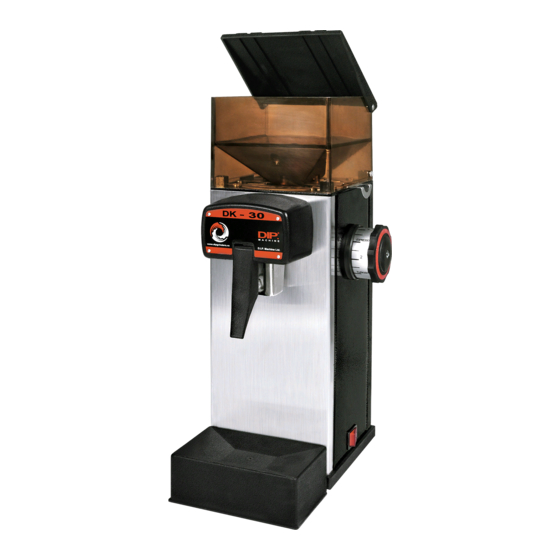

DK-30
RELIABLE
AND
H A N D Y
devoted to PERFECT grinding

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DK-30 and is the answer not in the manual?

Questions and answers

Related Manuals for DIP DK-30

Summary of Contents for DIP DK-30

  • Page 1 DK-30 RELIABLE H A N D Y devoted to PERFECT grinding...
  • Page 2 INSTRUCTION MANUAL COFFEE GRINDER MODEL DK-30 www.dipgrinders.com - 3 -...
  • Page 3 INDEX 1. GENERAL DATA 2. INTRODUCTION: CONSERVATION OF THE HANDBOOK 3. CONTEMPLATED USE AND WARNING 4. INSTALLATION – LOCATION – START-UP 5. MAINTENANCE 6. SHUT-DOWN AND DISMANTLING 7. TECHNICAL DATA AND DIAGRAM...

  • Page 4: General Data

    1. GENERAL DATA MANUFACTURER: DIP IMPEX SRL HEAD OFFICE 287, Theodor Pallady Bd. 032258 - Bucharest ROMANIA Phone: +40 21 345 1106 Fax: +40 21 345 1107 Website: www.dipgrinders.ro Email: office@dipgrinders.ro MODEL: DK-30 VERSION: 220-230 V/50-60 Hz 110-120 V / 60 Hz...
  • Page 5 2. INTRODUCTION: CONSERVATION OF THE HANDBOOK The manual is intended for the machine’s user and/or maintenance technician. The object of this manual is to provide information for the correct use of the machine and proper maintenance, as well as to guarantee the safety of the operator. This manual must be carefully retained, since the manufacturer accepts no responsibility for damage to people or things, or suffered by the machine if it is used in other ways than that describe there in or if the maintenance and safety prescriptions are not...
  • Page 6 possible faults or wear which could affect the system’s original safety. The installer must check that the environmental conditions are suitable, so as to guarantee safety and hygiene for the operators and users. The various manufacturers are responsible for the commercial components fitted to the machine;...
  • Page 7 4. INSTALLATION – LOCATION – START-UP Precautions for installation The manufacturer has obviously taken every possible precaution to guarantee user safety, but the different installation and/or transport conditions could give rise to uncontrollable or unpredictable conditions; so it is always necessary to asses’ possible hidden hazards and to consider the following suggestions: •...

  • Page 8: Maintenance

    5. MAINTENANCE Cleaning operations Before cleaning the machine turn the main switch off and unplug the power cord. Use a damp cloth (not abrasive) for cleaning the base and the outer case. Never use alcohol or solvents on the written or painted parts. Maintenance operations Specialized personnel authorized by the manufacturer must do maintenance.

  • Page 9: Shut-Down And Dismantling

    Remove the screw in the center of the adjusting knob. With the adjustment knob (item nr. 230004) on #9 (French Press), turn the grinder on. With the motor running, adjust the grind towards #1 slowly until you hear metal scraping. (If you do not hear a metallic sound when you reach #1, pull the knob away from the grinder and, while pulled out, set the #9 in front of the red line and adjust the grind towards #1 as above).
  • Page 10 7. TECHNICAL DATA AND DIAGRAM Coffee Grinder DK-30 Voltage 220-230 V / 50 Hz – 110-120 V / 60 Hz Motor Power 750 W Average output * 500g / min. Grinding disc diameter 80 mm Weight 18 kg Dimensions (W x D x H)

  • Page 11: Coffee Grinder

    COFFEE GRINDER 130000 www.dipgrinders.ro • office@dipgrinders.ro...
  • Page 12 DISCHARGE HOUSING 130300 www.dipgrinders.ro • office@dipgrinders.ro...
  • Page 13 GRINDING MECHANISM 130100 www.dipgrinders.ro • office@dipgrinders.ro...

  • Page 14: Bottom Plate

    BOTTOM PLATE 130400 www.dipgrinders.ro • office@dipgrinders.ro...
  • Page 15 www.dipgrinders.ro • office@dipgrinders.ro...
  • Page 16 D.I.P. IMPEX S.R.L. 287, Theodor Pallady Bd., 032258 Bucharest, ROMANIA TEL +40-21-345 11 06 FAX +40-21-345 11 07 www.dipgrinders.ro • office@dipgrinders.ro Model: DK-30 DK-40 DK-60 Type of Equipment: Coffee Grinder Application of Council 73/23/EEC as last amended by EC Directive 93/68/EEC...
  • Page 17 DK-30 was designed to shift between flavours at a glance. Its unique design makes the machine so versatile and easy to use, even from the most demanding coffee shops. • Large grinding capacity at all settings • Cool and homogeneous particle distribution that preserves coffee’s taste and aroma •...
