  • Page 1 DS-68 YOUR SILENT PARTNER devoted to PERFECT grinding...
  • Page 2 D.I.P. IMPEX SRL, located at 287 Theodor Pallady Blvd., 032258 Bucharest, Romania, manufactures the DS-68 On demand Grinder in compliance to CEE requirements: N73/23 (low tension) N89/392 (machines) The DS-68 On demand Grinder has been tested in accordance the following norms: • EN 60 335-1 • EN 55011 •...

  • Page 3: General Warnings

    GENERAL WARNINGS • Read this manual before using the appliance as it contains important instructions for the safety, operation and maintenance of the appliance. • Before plugging in the appliance, make sure that voltage and frequency values of the power supply correspond to the rating plate. •...
  • Page 4 The grinder, therefore, is for the operator one of the most important tools, whose structure must meet certain characteristics such as: strength, durability and functionality. Dimensions DS-68 www.dipgrinders.ro • office@dipgrinders.ro...

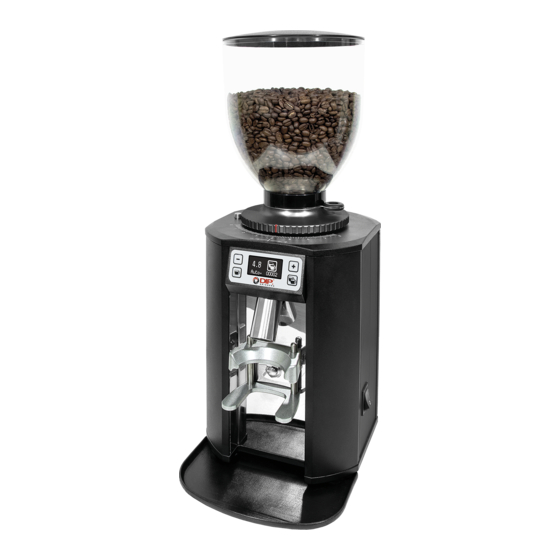

  • Page 5 Components Description Hopper cover Hopper Indexing mechanism Electric Fan Coffee grinding adjustment disk Pluss (+) button Hopper locking slide One cup button Control panel Display Minus (–) button Start microswitch Two cup button On/Off switch Filter holder Bottom plate Tray Figure.
  • Page 6 Unpacking the DS-68 On demand Grinder: When open the package, carefully check the equipment for any possible damage. If you have any doubt, do not use it and contact a qualified technician. If you have to ship back the equipment, this must be done in the original package otherwise the warranty is void.

  • Page 7: Preliminary Operations

    Adjusting the grind Your new DS-68 serie is delivered from the factory at a preset grinding of minimum fineness. Use the Adjustment disk located under the hopper (fig. 1), for obtaining a finer or coarser grinding result.

  • Page 8: Safety Protection

    Safety protection: THERMAL OVERLOAD PROTECTION The appliance’s motor is protected against overheating by a thermal protection which, when tripped, cuts off the motor’s power supply. If the protection trips as a result of anomalous operation, such as jamming the grinding blades, the appliance must be turned off using the ON/OFF switch (fig.1), DISCONNECTED FROM THE MAINS, AND CONTACT A LICENSED TECHNICIAN.
  • Page 9 It is recommend to clean the hopper periodically. Grinding Disk Replacement: In order to change the grinding disks of the DS-68 please follow the steps found below: • Close the Hopper locking slide (fig.1).

  • Page 10: Display And Functions

    Display and functions Starting the machine Flick the main switch: The company’s logo appears Few seconds after: The Single cup menu appears. Auto grinding mode as default. To shift between grinding modes (see Chapter 6) 00000 = Partial doses counter, can be reset periodically (see Chapter 7) 4.5 = Nr of seconds per dose Auto = Grinding mode, to change...

  • Page 11: Setting The Grinding Time

    Choosing between Single or Double Dose a. Single shot (Default) Press The following pictogram appears To choose for single b. Double shot The following pictogram To choose for double appears Setting the grinding time When machine is set for a. When single single doze, press: The Grinding time increments with 0.1 sec.
  • Page 12 Grinding a. When single Auto/Auto+ When the dose switch disappears and: I. A bar appears under the time index, i.e. 4.5, which is filled, during grinding time. II. Nr. of seconds decreases from 4.5 to 0 is hit shortly the machine starts grinding.
  • Page 13 Grinding modes Auto: When the grinding switch is struck shortly, the After each cycle the Partial machine grinds for the doses counter increments preset time. with 1. Ex: 4.5 sec for single / 8.5 sec for double Manual: When the grinding switch is struck the machine runs for as long as the switch is kept pressed, the seconds...
  • Page 14 Auto+: When the grinding switch is struck shortly, the machine grinds for the preset time. When the cycle ends, for 5 seconds the word Manual appears. During these 5 seconds: The grinding switch activates grinding for as long as it is kept pressed. Every time the switch is pressed those 5 seconds are reset.
  • Page 15 Locking Grinding time In order to avoid the change of grinding time during daily operation the grinding time has to be locked. A. To lock the grinding time press for 5 seconds simultaneously: The following pictogram appears: During lock, if the operator presses the following pictogram appears...
  • Page 16 Resetting Partial Doses To reset the partial The following pictogram doses counter press for 5 appears seconds simultaneously: To prevent from changing the selected grinding For the next 10 seconds time, lock before. the partial dozes counters (see Chapter 6) can be reset Press simultaneously for 7 more seconds.
  • Page 17 Setting Grinding mode Switch OFF the machine With both from the main switch Keep both pressed, flick the main switch pressed until the following pictogram appears You have 5 seconds to shift between modes by Pressing Every time you press these 5 secs are refreshed After 5 secs of no action, the grinding mode is saved to your selection: Phone: +40 21 345 11 06 •...
  • Page 18 Viewing the total doses When machine is in normal operation single or double Press the single or double The following pictogram appears for 5 seconds Working Hours represent, the total Nr. of hours that motor run since fabrication Total doses represent, the total number of shots grinded since fabrication.
  • Page 19 DS-68 Kinematic scheme...

  • Page 20: Hopper Assembly

    Kinematic scheme - DS - 68 Hopper assembly www.dipgrinders.ro • office@dipgrinders.ro...
  • Page 21 - Kinematic scheme DS - 68 Porta filter holder Phone: +40 21 345 11 06 • Fax: +40 21 345 11 07...
  • Page 22 Kinematic scheme - DS - 68 Appliance housing www.dipgrinders.ro • office@dipgrinders.ro...
  • Page 23 - Kinematic scheme DS - 68 Grinding mechanism Phone: +40 21 345 11 06 • Fax: +40 21 345 11 07...

  • Page 24: Frontal Panel

    Kinematic scheme - DS - 68 Frontal panel www.dipgrinders.ro • office@dipgrinders.ro...

  • Page 25: Bottom Plate

    - Kinematic scheme DS - 68 Bottom plate Phone: +40 21 345 11 06 • Fax: +40 21 345 11 07...

  • Page 26: Electrical Scheme

    Kinematic scheme - DS - 68 Electrical scheme www.dipgrinders.ro • office@dipgrinders.ro...
  • Page 27 DS-68 On Demand grinder is your Silent Partner. The redesigned grinding adjustor will satisfy any Coffee shop’s, Hotel’s and Barista’s needs. The NEW ventilation system assures low heat retention in challenging environments. DS-68 delivers each coffee portion, freshly grounded on demand.
