Power Pins

Both ItsyBitsy 32u4's have BAT G USB on the top left, right next to the micro USB port
These pins are:
BAT - battery input for an alternative power source to USB.
On the 5V itsy, this pin can be 5.5-16VDC
© Adafruit Industries

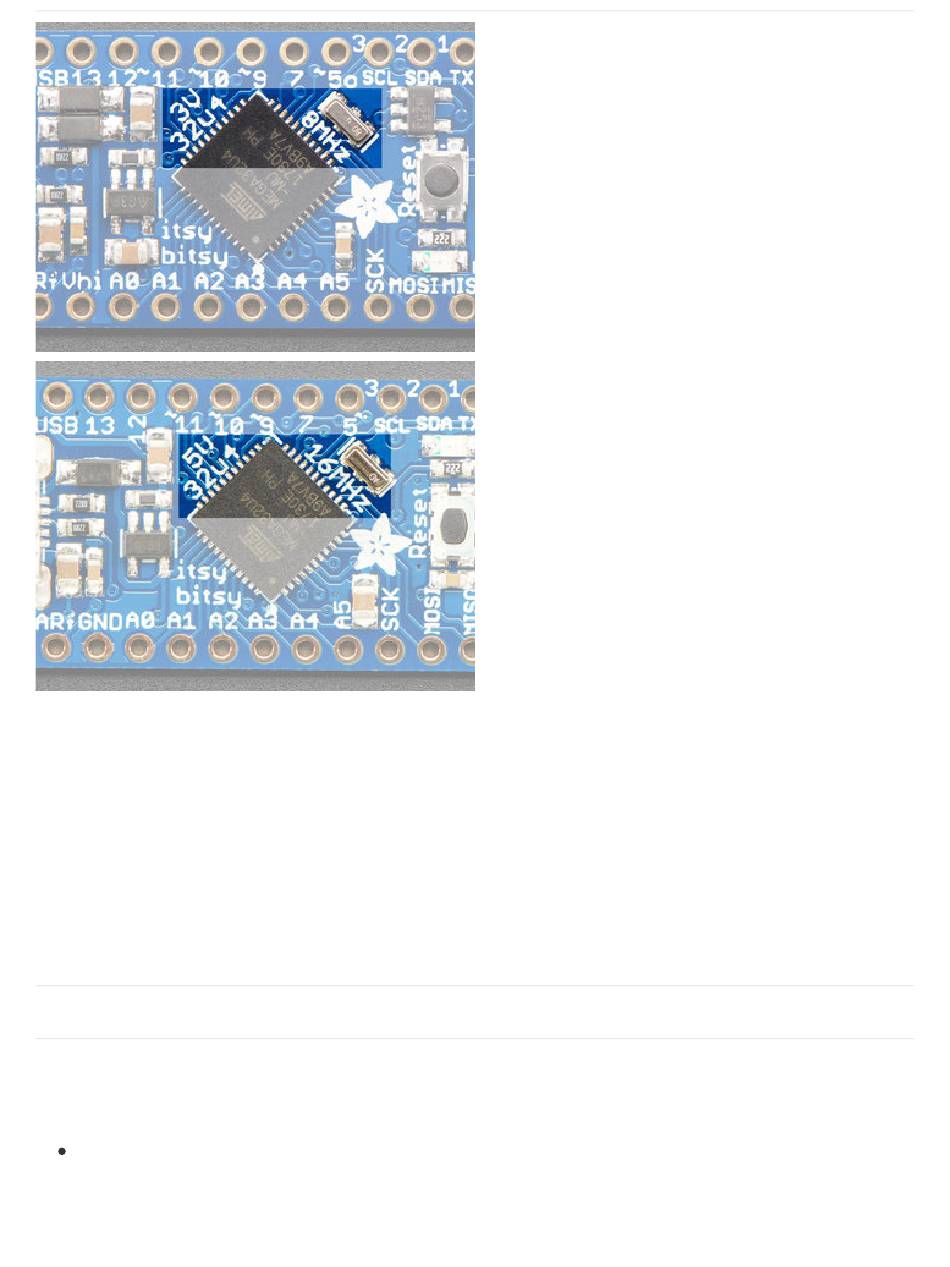

Which do you have?

Look in the middle of the board, you'll see either 32u4
3V 8MHz or 32u4 5V 16 MHz
https://learn.adafruit.com/introducting-itsy-bitsy-32u4
Page 7 of 22
