Summary of Contents for Smarteh LPC-2.DT1B
- Page 1 USER MANUAL Longo programmable controller LPC-2.DT1B Light Switch Control panel Version 1 SMARTEH d.o.o. / Poljubinj 114 / 5220 Tolmin / Slovenia / Tel.: +386(0)5 388 44 00 / e-mail: info@smarteh.si / www.smarteh.si...
- Page 2 Longo programmable controller LPC-2.DT1B Written by SMARTEH d.o.o. Copyright © 2013, SMARTEH d.o.o. User Manual Document Version: 001 September 1, 2013...
- Page 3 Vibrations and climatic-mechanical: EN 60068-2-6, EN 60068-2-27, • EN 60068-2-29 Smarteh d.o.o. operates a policy of continuous development. Therefore we reserve the right to make changes and improvements to any of the products described in this manual without any prior notice.
-
Page 4: Table Of Contents
Longo programmable controller LPC-2.DT1B Longo programmable controller LPC-2.DT1B 1 DESCRIPTION...................1 2 FEATURES..................2 3 OPERATION..................3 3.1 Operational modes..............3 3.2 Parameters................3 4 INSTALLATION..................5 4.1 Connection scheme..............5 4.2 Mounting frame selection............7 4.3 Mounting instructions..............8 4.4 Module labeling................9 5 TECHNICAL SPECIFICATIONS..............10 6 CHANGES ..................11... -
Page 5: Description
Longo programmable controller LPC-2.DT1B 1 DESCRIPTION LPC-2.DT1B control panel (CP) is used to switch on and off four individual or group of lights. Panel is equipped with four push buttons (PB), temperature sensor and light intensity sensor. To switch on or off individual or group of lights , corresponding PB should be pressed respectively. -
Page 6: Features

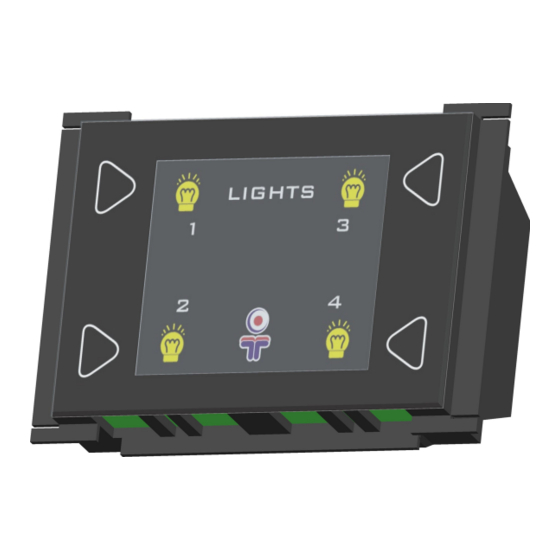

Longo programmable controller LPC-2.DT1B 2 FEATURES Figure 1: LPC-2.DT1B module. Table 1: Features 4 touch buttons to switch light on/off 4 light symbols to show lights on/off status Temperature measurement Light intensity measurement LCD intensity control Color LCD with possibility of back ground picture changing →... -
Page 7: Operation
Longo programmable controller LPC-2.DT1B 3 OPERATION Basic switching can be done with panel Push Buttons (PB).Modes of operation and commands can be set via LPC Manager software. It is advised to press touch-buttons respectively with finger not faster than 1 press per second. - Page 8 Longo programmable controller LPC-2.DT1B Actual temp.: Actual room temperature 0 .. 5000 represents 0.00 .. 50.00 °C. Actual light: Actual room light intensity 0 .. 100 represents 0 .. 100%. Light x (Off/On) command: remote On/Off command for individual light. This command is enabled using corresponding Light x (Local/Remote) command.
-
Page 9: Installation
Longo programmable controller LPC-2.DT1B 4 INSTALLATION 4.1 Connection scheme Figure 2: Connection scheme... - Page 10 Light 4 Switch light 4 on/off, status is shown on LCD next to PB4 (Down-right) Table 4: S1 RS-485 Switch 1 Switch 2 ADDRESS Interconnection cable can ordered from Smarteh or terminated on site, considering wiring scheme bellow: Interconnection cable ICM-X.
-
Page 11: Mounting Frame Selection
Master ● Frames of other vendors most probably suits as well, but they were not verified by Smarteh. Before installation verify compatibility of non listed frames. Module housing has a fin on each side, which can be easily removed with knife cutter or pliers. This adaptation enables housing to be build in various frame formats with two different depths. -
Page 12: Mounting Instructions
Recommended installation height is 1.5 m above floor level. 1. Set the correct RS-485 address (S1 switch) for LPC-2.DT1B (refer to the Table 4). 2. Connect interconnection cable to the connector K1. Max. allowed tensile force is 30 N. -
Page 13: Module Labeling
S/N: DT1B-S9-0900000003 is the serial number. • DT1B – short product name, • S9 – user code (test procedure, e.g. Smarteh person xxx), • 10 – year (last two cyphers), • 00000003 – current stack number; previous module would have the stack number •... -
Page 14: Technical Specifications
Longo programmable controller LPC-2.DT1B 5 TECHNICAL SPECIFICATIONS Table 5: Technical specifications Power supply from MCU Interconnection connector type RJ-12 6/6 Power consumption Dimensions (W x H x D) 75 x 49 x 29 mm Weight 50 g Maximum altitude 2000 m... -
Page 15: Changes
Longo programmable controller LPC-2.DT1B 6 CHANGES The following table describes all the changes to the document. Date Description 1.9.2013 The initial version, issued as LPC-2.DT1B module UserManual. -
Page 16: Notes
Longo programmable controller LPC-2.DT1B 7 NOTES...
