Hubbell REKF FAN KIT Instruction Sheet

Hubbell Premise Wiring, HUBBELL INCORPORATED (Delaware) Hubbell Premise Wiring, HUBBELL INCORPORATED (Delaware)
14 Lord's Hill Rd, Stonington CT 06378 (800) 626-0005, Fax (860) 535-8328 23 Clara Dr Mystic, CT 06355 (800) 626-0005, Fax (860) 535-8328
www.hubbell-premise.com www.hubbell-premise.com
Control No. Page of
77873301 4 4
Rev. F Date: 22JAN04
®
Hubbell Premise Wiring Instruction Sheet
FAN ACCESSORY
This instruction sheet applies to the following Hubbell Premise Wiring (HPW) catalog numbers: REKF FAN KIT

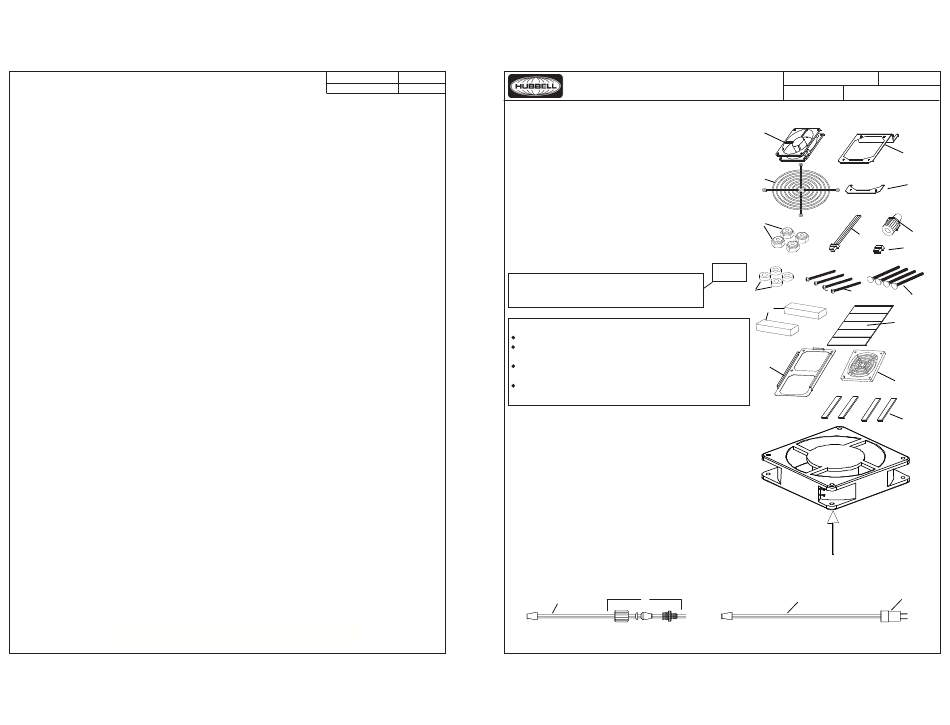

PARTS LIST: REKF, REKFF
Item Description Qty
1 Fan
2 Wire, Fan Guard
3 Lock Nut
4 Rubber Washer
5 Fan Bracket
6 Fan Bracket Spacer
7 #6-32 x 2" Pan Head Screws
8 #6-32 x 2" Flat Head Screws
9 Adhesive Air Baffl es
10 Foam Plenums
11 Power Cord
12 AC Plug
13 Grommet / Strain Relief
(For 1/2" Knockout)
14 Filter Bracket
15 Filter
16 3" Foam
Notes:
Please read entire instructions before assembling.
Compare contents with above parts list to ensure that you
have received all parts.
Use door seal/gasket kit (HPW catalog #REKG) to enhance
performance of fan.
Use Rebox power kit (HPW catalog #REKP) to prepare
Rebox for power.
STEP 1:
A) Locate airfl ow directional arrow imprinted on outside of fan
housing. Arrow indicates direction of airfl ow. Arrow should
point up, when assembling, to ensure air intake into cabinet
as shown in Fig. 1.
B) Power cord (item11) can be used by either side wiring to
receptacle or by terminating with two prong plug (supplied).
1) For side wiring assemble grommet/strain relief
(item 13) to power cord (item 11) as shown in Fig. 2.
2) For terminating with two prong plug assemble plug
(item 12) to power cord (item 11) as shown in Fig. 3.
13
11
Fig. 2
Control No. 77877301
Rev. F Date:
REKFF FILTER KIT
1
1
2
4
4
2
1
1
4
4
1 3
2
11
1
1
1 5
REKFF
1
2
4
7
4
10
14
12
2
4
1
Direction of Air Flow
Fig. 1
11
Fig. 3
Page 1 of 4
22JAN04
5
6
13
12
8
9
15
16
DIRECTION
OF AIR FLOW
12
4
5
12
