Savant USAI Service Instructions

USAI RECESS PINHOLE
SERVICE INSTRUCTIONS

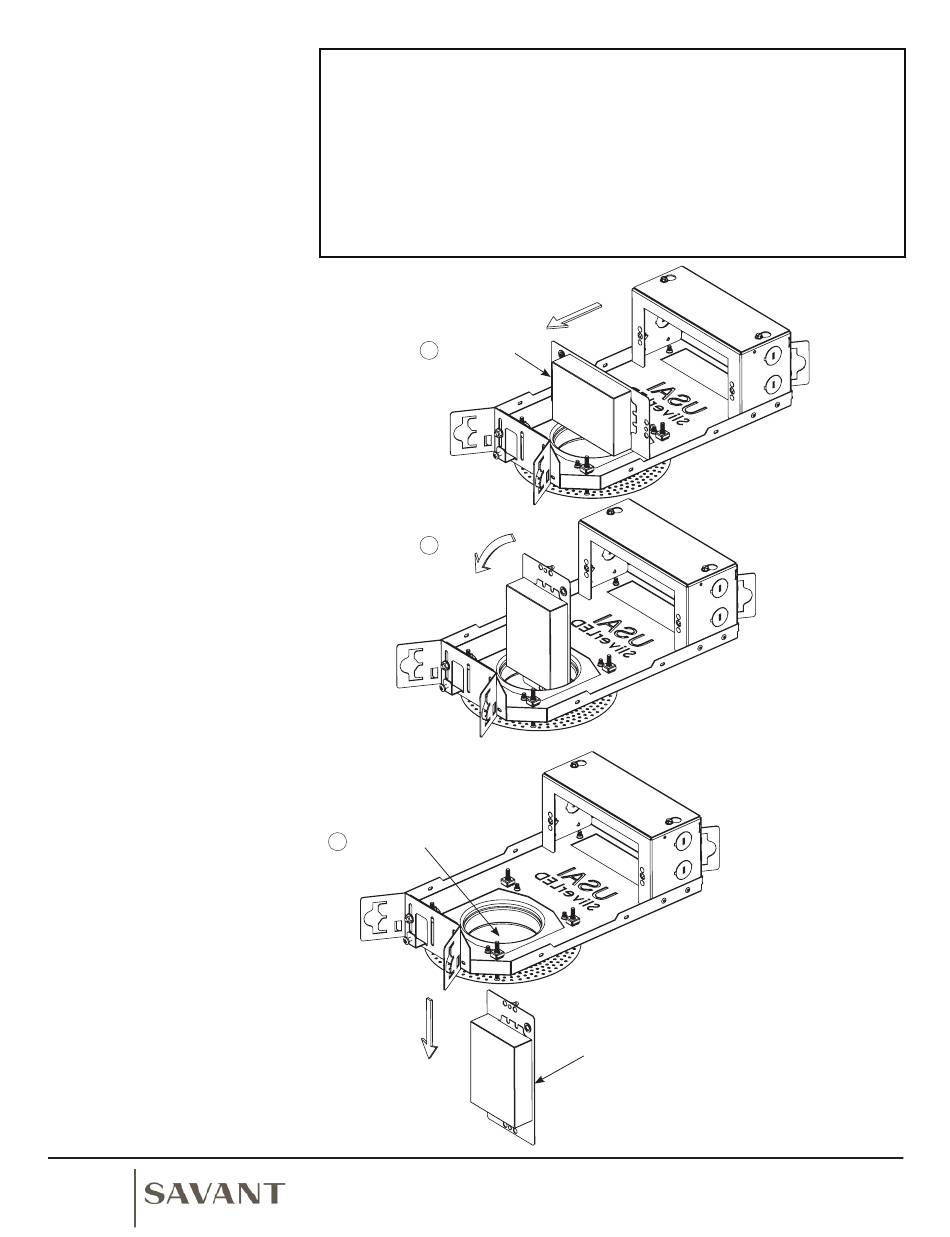

DRIVER REPLACEMENT:

Caution: Power Must Be Off!!
1. Remove trim.
2. Unplug Quick-Connector.
3. Remove driver plate by pulling towards opening
4. Rotate driver plate.
5. Remove driver plate thru opening.
6. Unplug Quick-Connectors
7. Replace driver plate.
8. Install in reverse order.
USAI ®
Lighting
CAUTION READ BEFORE INSTALLATION
• Retain these instructions for future reference. This product must be installed by a person familiar with the
construction and operation of the product and the hazards involved, in accordance with applicable NEC code.
• Switch off main power before beginning installation.
• Install per national installation and accident prevention regulations.
• Clearance between sides of luminaire and parts of building to be 1/2 inch minimum; clearance to insulating
materials to be 3 inch minimum, unless luminaire is IC rated.
• Fixtures must be installed in applications where the ambient temperature does not exceed 40 o C during
normal operation.
• DO NOT connect or disconnect LED board wire connector when the fi xture is energized. This may result in
permanent damage to the LED array.
• Warranty claims will not be accepted if incorrect driver or light engine is used.
3 Driver Plate
4
Remove thru
5
opening
www.savant.com 1-877-SAVANT5
savantsupport@savant.com
Driver Plate
(1-877-728-2685)
Page 1
© 2018. USAI, LLC.
All rights reserved.
All designs protected by copyright.
Covered by US Patents. Patents pending.
I2-482
