Braun Corporation RA300 Operator, Installation, Service Manual
  1. Manuals
  2. Brands
  3. Braun Corporation Manuals
  4. Mobility Aid
  5. RA300
  6. Operator, installation, service manual

Braun Corporation RA300 Operator, Installation, Service Manual

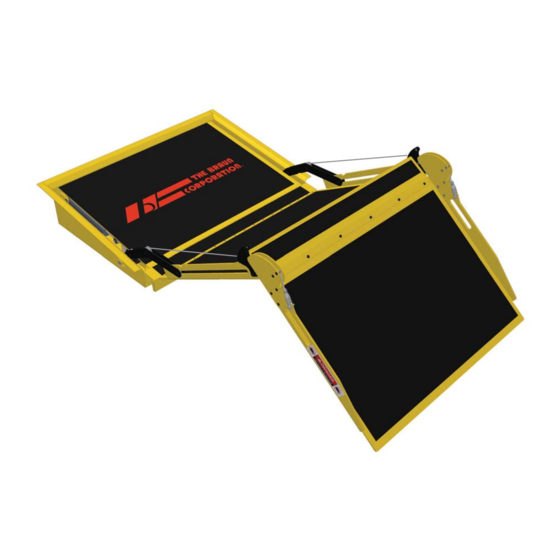

Commercial transit ramp for low-floor transit vehicles
Hide thumbs Also See for RA300:
Table of Contents

Advertisement

Quick Links

Download this manual
Operator's/Installation/Service Manual
Braun
Braun
Commercial
RA300 Transit Ramp
RA300 Transit Ramp
for
Low-Floor Transit Vehicles
"Providing Access to the World"
International Corporate Hdqrs: P .O. Box 310
1-800-THE LIFT
®
(574) 946-6153
33778
March 2007
®
®
Winamac, IN 46996 USA
FAX: (574) 946-4670
W ARNING
Read manual
before operating,
installing or
servicing ramp.
Failure to do so
may result in
serious bodily
injury and/or
property damage.
