Tenn-Tex Plastics QuickTRAY Rollout System Quick Start Quide

Polybag
B-333
Natural
2 Bumpers
2 HAR-048 #6 x 1/2 TH Phillips Type
B-334
White
B-335
Beige
B-336
Natural
2 Bumpers
2 HAR-048 #6 x 1/2 TH Phillips Type
B-337
White
B-338
Beige
B-373
Natural
2 Bumpers
B-374
White
2 HAR-048 #6 x 1/2 TH Phillips Type
B-375
Beige
B-376
Gray

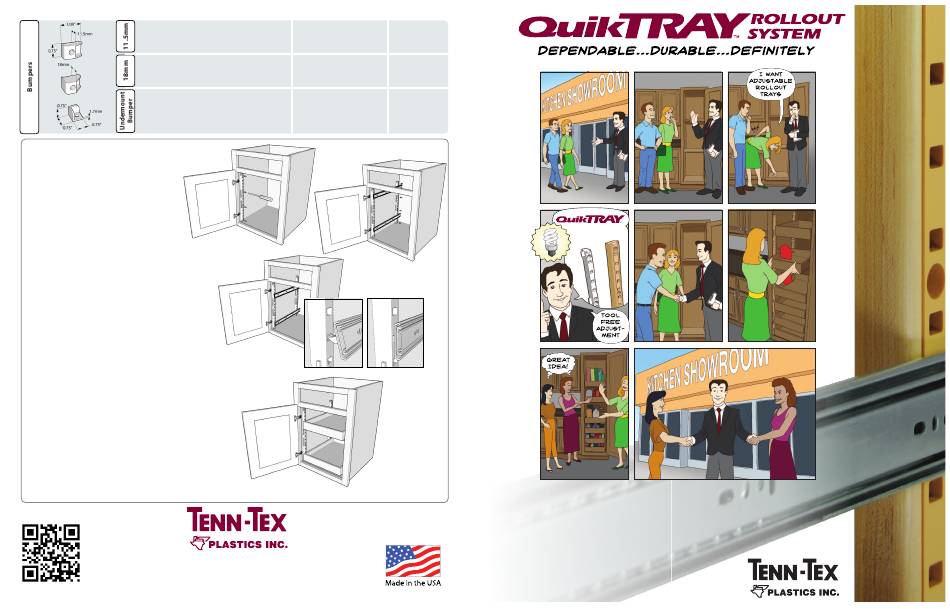

Installation
1

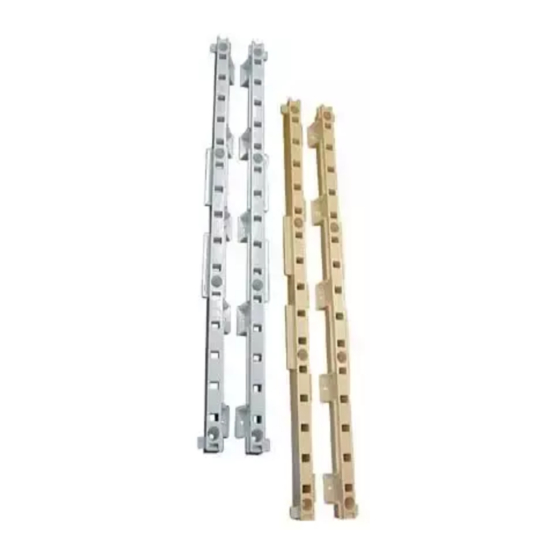

Place QuikTRAY™ pilaster behind
face-frame or set back, according to type
of cabinet construction or hinges being
used. Rest pilaster against cabinet
bottom. Fasten with 5 wood screws
or 4 Euro screws. Attach hook dowels
(hook pointing up) at front and back of
drawer slide. Front hook dowels on
slides must be mounted as far forward
as possible.
2
To position back pilaster, insert two drawer
slides of your choice to top and bottom of
secured front pilaster and to unattached
rear pilaster. Float rear pilaster into position
and fasten with screws. Repeat procedure
on the other side.
3
Move slides to desired position, inserting at
slight angle.
3a
With patented hook dowels, no tools are
required to install slides and trays. Just
insert dowel with hook pointing up, then
push down to lock into place.
3b
Hook dowels allow slides to move
laterally to adjust for cabinet and drawer
width tolerances.
4
Install drawers or trays.
More installation information and video available at www.quiktray.com.
8011 National Service Road
WWW.QUIKTRAY.COM
WWW.TENNTEX.COM
January 2014
WWW.BRACKETSOLUTIONS.COM
Bulk w/ Bumpers Only
T-161-00
2000 Bumpers
T-161-01
per box
T-161-02
(50 bags per box)
T-160-00
2000 Bumpers
T-160-01
per box
T-160-02
(50 bags per box)
C-247-00
C-247-01
1000 Bumpers
per box
C-247-02
(50 bags per box)
C-247-03
1
2
3
3a
4
1.800.TENN.TEX
Colfax, NC 27235
100 Pack
B-401-00
B-401-01
B-401-02
B-400-00
B-400-01
B-400-02
B-402-00
B-402-01
B-402-02
B-402-03
3b
