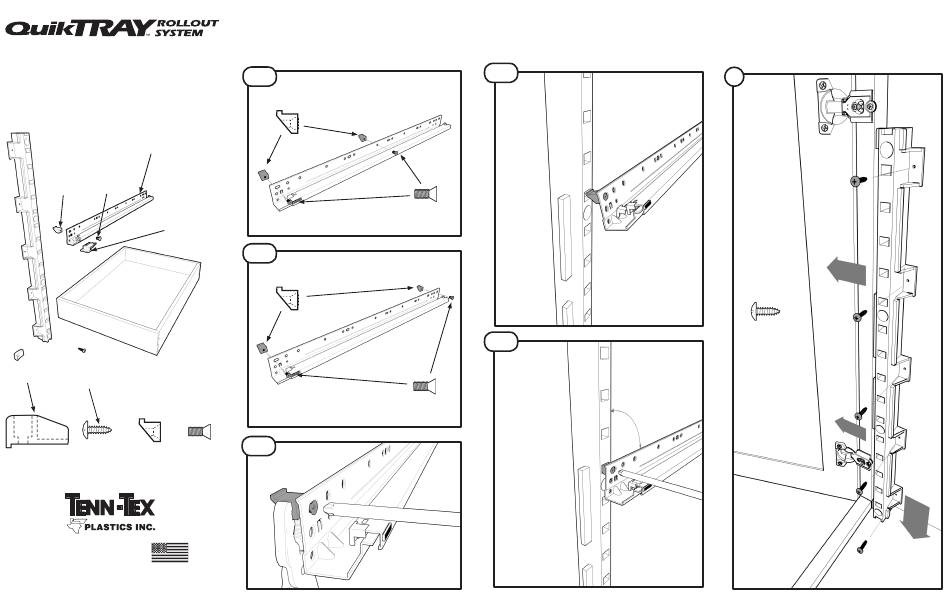

Installation Instructions
for faceframe cabinets
Instrucciones de Instalación
Pilaster
Qty: 4
Drawer Slide
Qty: 2L/2R
Hook
Dowel
Hook
Screw
Dowel
Drawer
connector
Qty: 4
Drawer
box
Qty: 2
#6x1/2"
Bumper
Screw
Qty: 2
Qty: 40
Hook
Dowel
Qty: 8
Additional tools needed:
Screwdriver, pliers
www.quiktray.com
www.tenntex.com
Made in USA
For additional installation questions, call 1-800-TENNTEX
between the hours of 9am and 4pm EST
HOOK DOWEL
ASSEMBLY
1a
With Half Shelf
Hook
Dowel
1b
Without Half Shelf
Hook
Dowel
Hook
Dowel
Screw
Qty: 8
1c
1d
Hook
Dowel
Screw
1e
Use the pilaster
to hold the hook
dowel at 90°
when tightening.
Hook
Dowel
Screw
Mount the hook
dowels so the
lip points up
FRONT PILASTER
INSTALLATION
2
Angle the slide to
get the lip into the
hole in the pilaster.
#6x1/2"
Screw
Qty: 5 per
pilaster
90°
Place QuikTRAY™ pilaster
behind face-frame.
Rest pilaster against
cabinet bottom.
Fasten with 5 screws.
INS-QT01
