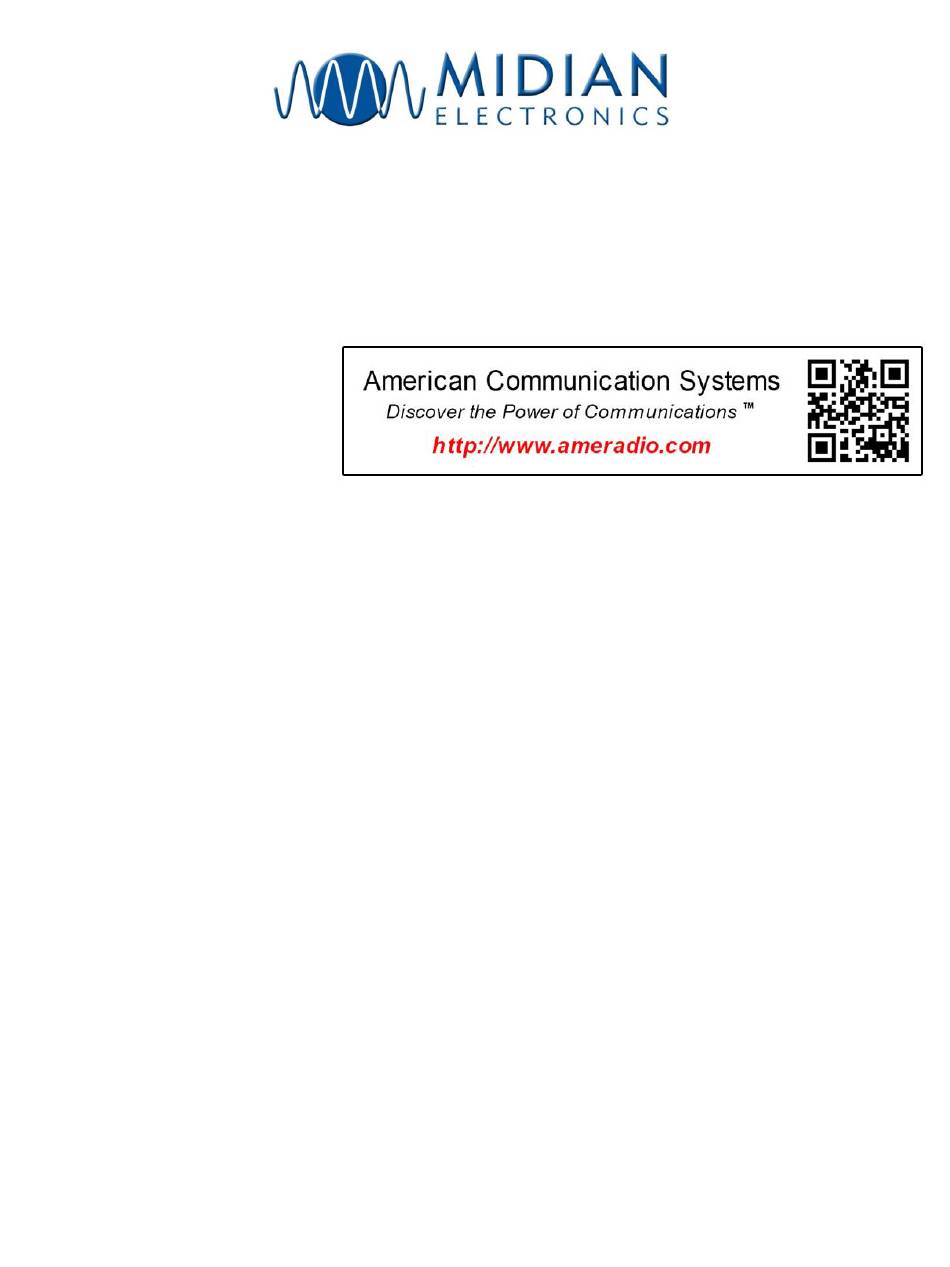

- Page 1 KL-4F Midian Universal USB Programming Interface Manual Revision: 2013-04-30 Covers Hardware Revisions: KL-4F: F & Higher Covers Software Revisions: MPS: 4.30 & Higher...
-
Page 2: Operating System Requirements
Open Windows’ Control Panel and go to Device Manager. Open Ports (COM& LPT) to identify the port assignment issued by computer. Plug in the KL-4F programmer to the USB port and the screen will flash and show the device location. See the example shown below. -
Page 3: Hardware Installation
Plug the Type A USB connector of the supplied USB cable into an available USB port on the PC. Plug the Type B USB connector of the supplied USB cable into the USB port on the KL-4F. See the diagram below:... -
Page 4: Program Out
AE-1, ANI-F, BTD-2, ID-1, PR-1, RD-1, RM-1, RT-2, TDS-1, TDS-3, UD-1B, UE-1, UED-1B, UED-1B-BEZEL There is a six inch wiring harness supplied with the KL-4F that can plug into P5 and P4. Plug the harness into the connector and then plug the module listed above onto the harness. - Page 5 PR-10, PTA-16, RIC-8, STI-1, STI-2, TTC-1 and VAE-10 products require the KL-4F-PC1 in addition to the KL-4F for programming. The KL-4F-PC1 cable is plugged into the P10 RJ-11 connector of the KL-4F and into the stereo connector on the Midian product. The KL-4F-PC1 cable goes from a male RJ-11 connector to a male 3.5 mm stereo connector.
- Page 6 Flea/Alligator Clips: In addition to the products listed above, the flea clips are also used to program (not read) Midian’s RC-10, RD-10, UD-1B-DMH and UED-1B-DMV. Black – Ground – Connect this alligator clip to a common ground with the Midian product. Green –...
-
Page 7: Software Operation
10, RM-1, RT-2, TDS-1, UD-1B, UD-1B-DMH, UE-1, UED-1B, UED-1B-BEZEL and UED-1B-DMH. To read a unit both the Program In and Program Out wires must be connected to the KL-4F. Apply power to the unit and click on read unit. Note: The ANI-F and TDS-3 must have the PTT button pressed and held before pressing the power button to put the unit into read mode upon power up. -
Page 8: Controls And Indicators
PTT. Midian’s products are shipped from the factory programmed for negative PTT. PTT LED: When illuminated this LED indicates that the PTT button is pressed and the KL-4F is giving an active PTT to the module to be programmed. -
Page 9: Technical Notes
TECHNICAL NOTES Help Files: The help files for products such as the AE-1, BTD-2, PR-1, TDS-1 and UED-1 series, as well as a few others, will not display on computers running Windows 7. Help Files written in .hlp format need to be converted to .chm, .html or .xml formats so they will be supported under newer windows versions. - Page 10 MIDIAN CONTACT INFORMATION 2302 East 22 Street Tucson, Arizona 85713 USA Toll-Free: 1-800-MIDIANS Main: 520-884-7981 E-mail: sales@midians.com Web: www.midians.com...
- Page 11 P8:4 5V_SW P8:40 5V_SW P1:14 BEEP[OC] P1:10 P1:8 READ -PTT P1:6 WRITE P1:5 5V_SW SW2 CASE IS MIDIAN ELECTRONICS, INC. KL-4F DOCUMENT NAME CONNECTED TO GROUND. DATE: 2011-01-13 DWN BY: APPR SCHEMATIC SHEET PROJECT NUMBER 1 of 1 7718 DESIGN:...
- Page 12 This page intentionally left blank...
- Page 15 YELLOW[TIP-READ] GREEN[2ND_BARREL-WRITE] BLACK[1ST_BARREL-GND] YELLOW[READ] GREEN[WRITE] RED[NC] TAB FACING UP PIN 1 BLACK[GND] RJ11 4 CONDUCTOR CABLE TYPE: 4 CONDUCTOR FLAT RIBBON WITH STANDARD TELEPHONE HANDSET COLORS 3.5MM STEREO PLUG 36.00...
- Page 16 TAB FACING UP TAB FACING UP RJ-45 10 CONDUCTOR RJ11 4 CONDUCTOR PIN 1 YELLOW[READ] BLUE[PTT] BLUE[PTT] YELLOW[READ] RED[10V] GREEN[WRITE] RED[10V] BLACK[GND] BLACK[GND] WHT[BEEP] GREEN[WRITE] PIN 1 CABLE TYPE: 6 CONDUCTOR FLAT RIBBON WITH STANDARD TELEPHONE HANDSET COLORS 18.00...
