- Page 1 Commander Zweitbesprechung O...
- Page 2 Jumper Functions (JP7 bis JP12, Seriennr. 4716) Jumpers and Potentiometers in the Handset General Safety Information Returning of Old Equipment Order Information Ord.-Nr. Description 412012 Commander Zweitbesprechung O, without call buttons Technical Data Commander Zweitbesprechung O Supply voltage +12 V DC -25% +30% current consumption 50 mA (max.

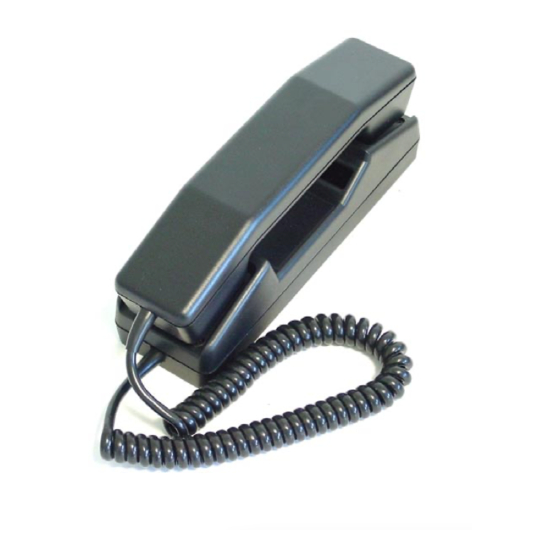

- Page 3 Remark: The Commander Zweitbesprechung is available with call buttons as well. General Remarks The Commander Zweitbesprechung O is a hand set designed for the use as a secondary device in addition to a BOS radio on the same radio circuit. The scope of delivery includes the handset together with the corresponding rest.
- Page 4 To pins 8 and 9 of ST1 a squelch signal of the radio can be applied (factory setting, JP2/JP3 closed at the bottom). The squelch function is not used at Commander Zweitbesprechung O. Alternatively these pins can be used to indicate the status of the hook via an opto-coupler (JP2/JP3...
- Page 5 Jumper Positions REL1 HOOK The earphone is connected to socket ST2. JP11 external loudspeaker JP10 internal loudspeaker JP12 Drawn 02.03.12 Moeller Blatt Funk Tronic GmbH Zweitbesprechung Leiterplatte ZBAUFL_2 Lageplan Check 02.03.12 Pechura D 36381 Schluechtern Auflage.S Jumper Functions (JP7 bis JP12, Seriennr. 4716) File ZBAUFL_2 Jumper...
- Page 6 Jumper Functions (continued) Jumper Function ex Factory JP10 closed -> hook - (pin 8) connected to GND open -> hook - (pin 8) separated from GND open / not in use - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - default JP11 open ->...
- Page 7 November 2005, the purchasers or users are obliged to return old equipment produced by us free of cost. FunkTronic GmbH will dispose of this old equipment at its own expense according to regulations.
