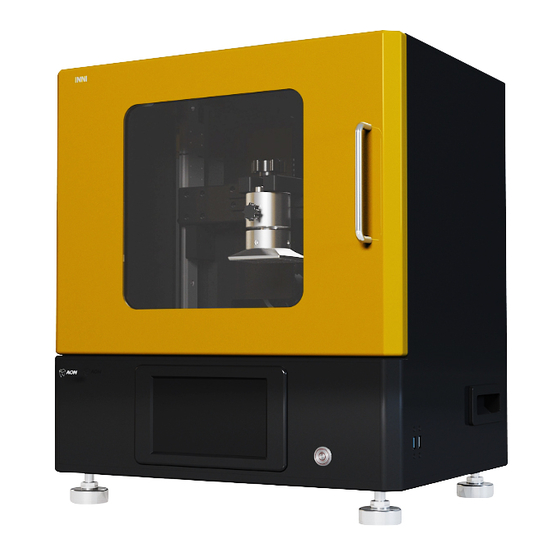

AON INNI User Manual

Bio-ceramic dlp 3d printer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

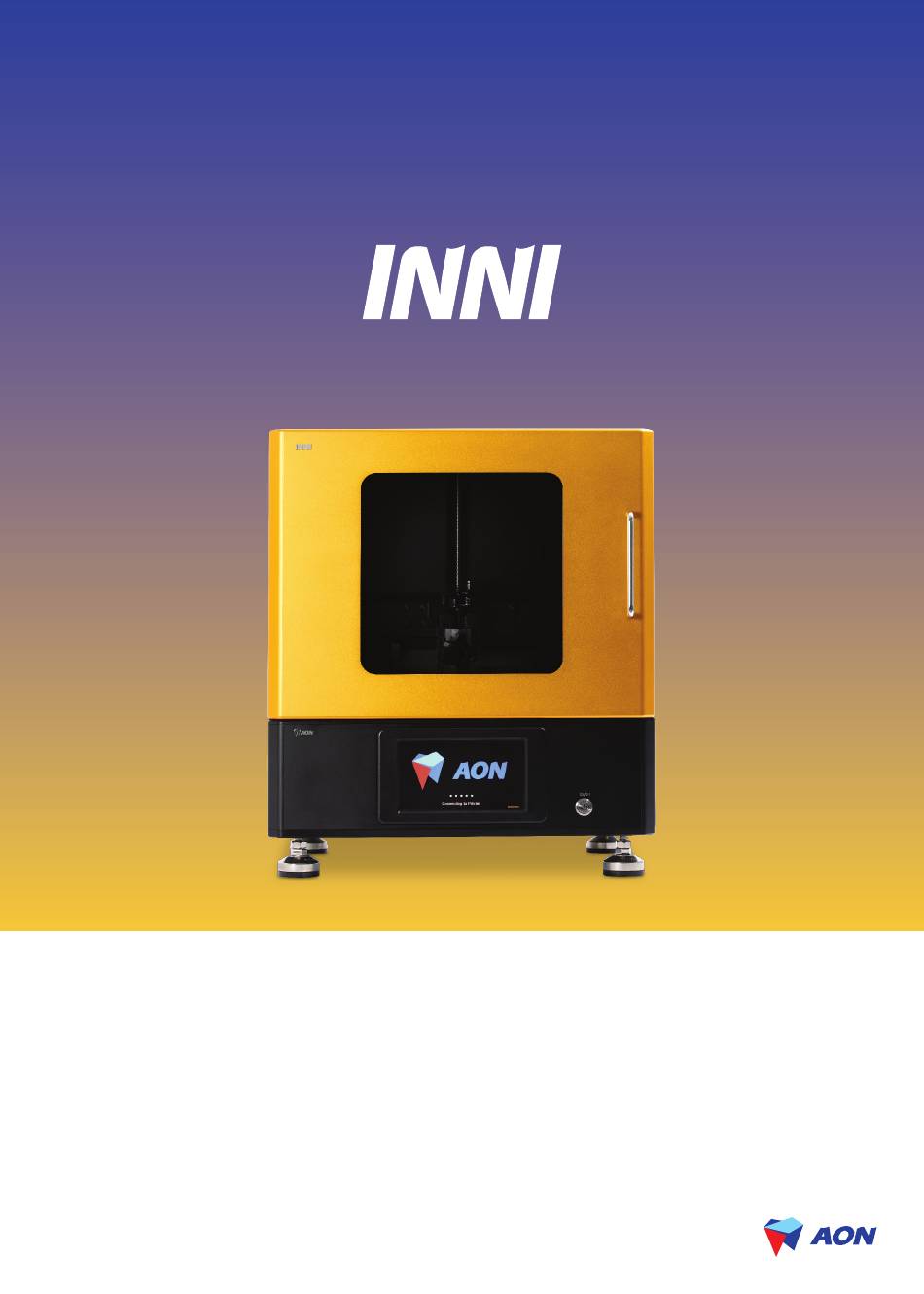

INNI_USER MANUAL_191225PS
BIO-CERAMIC DLP 3D PRINTER
DENTAL
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INNI and is the answer not in the manual?

Questions and answers

Related Manuals for AON INNI

Summary of Contents for AON INNI

  • Page 1 INNI_USER MANUAL_191225PS BIO-CERAMIC DLP 3D PRINTER DENTAL User Manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Chapter 1 Safety Precautions Chapter 2 Introduction to INNI 3D Printer (ACP-M11Y) What is INNI 3D Printer? Special features List of components Additional products Chapter 3 INNI 3D Printer Usage Guide 9~23 Setting Up the Printer 10~13...

  • Page 3: Safety Precautions

    ※ Please follow safety instructions at all times. Read the following precautions carefully and familiarize yourself with the INNI 3D Printer User Manual before setting up and using the printer. Failure to comply with the given warnings can lead to serious injury, fire, or equipment and/or property damage.

  • Page 4: Introduction To Inni 3D Printer (Acp-M11Y) 4~8

    INNI 3D Printer is especially designed to produce artificial teeth. Using INNI-CERA (BCM-W500), a zirconia slurry designed exclusively for INNI 3D Printer, and digital light processing, any dental configuration can be recreated before your very eyes, one layer at a time.

  • Page 5: Special Features

    3D Modeling Bed Film Another key feature of INNI 3D Printer is the special modeling bed film that makes up the base of the modeling bed. Detachable and reversible, it allows for optimized light refraction to achieve higher durability in the printed output and is designed to release the finished product cleanly and easily.

  • Page 6: List Of Components 6~7

    2. Introduction to INNI 3D Printer List of components Outer components ⑨ ⑦ ⑥ ⑧ Air vents Power socket Main power Handle switch ⑤ Ethernet port ③ ① ⑩ ② ④ Main door LCD console Main door panel Power button...
  • Page 7 INNI_USER MANUAL_191225PS Internal components ① LM GUIDE ⑨ Ball screw ② Knob-L30 ⑩ Z-axis main stage arm ⑪ Z-axis stage ③ Blade support ④ Knob-Blade ⑤ Blade ⑫ Knob-L20 ⑥ Modeling bed ⑦ VR15 ⑧ Knob-L15 Name Description LM GUIDE Guide for the z-axis stage Knob-L30 Fixture for the build platform...

  • Page 8: Additional Products

    Build platform AB11-40000A AB11-40000A a computer to INNI 3D Printer Accessories (for purchase) The following is a list of the extra accessories available for INNI 3D Printer. Item Item Hex key (2.5mm) Safety glasses Used to change Protection for the eyes the modeling bed film 2.5mm...

  • Page 9: Inni 3D Printer Usage Guide 9~23

    7) The printed output should detach easily from the base of platform plate. Remove the supports attached underneath and finish it off with a cleaning and final heat treatment. 8) Printed restorations created by INNI 3D Printer are to be used as artificial dental or other prostheses for natural teeth.
  • Page 10 2. Prepare printing - Zirconia slurry (BCM-W500) 1) Pour 150g of the slurry into the modeling bed. 2) Preheat : AON Slicer → Set up → Position control → Preheat (10/20/30mins) * When preheat, a light will turn on inside the printer on the left side.

  • Page 11: Setting Up The Printer 10~13

    • To disconnect, pull on the main body of the plug, not on the cable. 2. Press the power button next to the touch screen console on the front of the printer. Hold and wait for the AON logo to appear.
  • Page 12 3. INNI 3D Printer Usage Guide Setting up the printer 3. Choose the menu item you want to use by tapping the icon. ※ After 10 seconds of inactivity, the screen will move to Position Control automatically. 4. To reset and/or move the build platform, go to Position Control.
  • Page 13 Choose file → Check model → Print Turning off the printer Press and hold the power button on the front of the printer for 3 seconds. The AON logo will disappear and the touch screen will turn off. ※ If the back of the printer is powered on even after the screen is turned off, the front power button will flash red.

  • Page 14: Setting Up The Network 14~15

    3. INNI 3D Printer Usage Guide Setting up the network (Access to AON Slicer) Use an Ethernet(Wired) connection when connecting the 3D printer and the PC. • You may then add a secondary Wi-Fi network connection. Note : Using a wired network as you primary printer-to PC connection is recommended at all times since printer errors may occur due to a weak or lost Wi-Fi signal.
  • Page 15 Printer IP address After connecting the printer and the PC, find and copy the printer's IP address to input into your web browser. AON's Slicer program will then onto the screen. 1. Check via 3D printer 2. Check via IP Scanner Tap the touch screen to begin →...

  • Page 16: Using The Slicer Program 16~17

    3. INNI 3D Printer Usage Guide Using the Slicer program 1. AON Web Browser : Click on the ‘INNICERA Profile’ button to bring up the Settings page and check that the printer’s profile. * DO NOT change these settings or else malfunction may occur.
  • Page 17 Click on 'Plates'. The following screen will appear. For the selected file output, be sure to click the ‘Regenerate’ button to rework the slicing. The file can be reliably used after refreshing. For more details, please refer to the AON Slicer user manual and video, www.aoninni.com...

  • Page 18: Using The Touch Screen Functions 18~23

    3. INNI 3D Printer Usage Guide Using the touch screen functions 1. The display below appears when the power is turned on. 2. Home screen appears after system start-up. Select printer functions from this screen. • Selection of stacked layers (Printing files) •...
  • Page 19 INNI_USER MANUAL_191225PS Plates 3. To use functions Touch the 'Plates' icon to begin. 3-1. File selection screen • Return to the previous screen • Return to Home screen • Add files (*.stl) from external storage (USB or Hard Disk) 3-2 Add new printing file screen ❶...
  • Page 20 3. INNI 3D Printer Usage Guide Using the touch screen functions 3-3. Choose the file you want to print. ❶ • After clicking the Plate file blank, choose the file. 3-4. Choose INNICERA Profile condition after selecting a file. ❸...
  • Page 21 INNI_USER MANUAL_191225PS INNICERA Profiles 4. To use functions Touch the icon to begin. 4-1. Choose the file condition you want to use. 4-2. Check the details.
  • Page 22 3. INNI 3D Printer Usage Guide Using the touch screen functions Projector 5. To use functions Touch the icon to begin. A variety of patterns on the printer’s inner panel can be checked and displayed (ON) Turns off the inner panel...

  • Page 23: Software & Firmware Updates

    Download the relevant update (requires at least 8G of memory space) to your computer or other external drive and install it to INNI 3D Printer. Please contact our Call Center (+82 70 4304 4996) or send us a message through our Support page if any problem occurs during the update.

  • Page 24: Chapter 4 Troubleshooting

    4. Troubleshooting 4. Troubleshooting Useful tips for troubleshooting an issue when using INNI 3D Printer (ACP-M11Y) For more detailed support, call AON Call Center (+82 70 4304 4996) or visit the homepage at www.aoninni.com Issue Solution I can’t download the software from Internet Use Microsoft Edge or Chrome to download.

  • Page 25: Product Specifications

    INNI_USER MANUAL_191225PS 5. Product Specifications Product name AON 3D Printer Model name INNI Product code ACP-M11Y KC Registration No. R-R-AON-ACPM11 SPECIFICATIONS Product dimensions (W x D x H) 480mm x 370mm x 543mm Product weight 46kg Package dimensions (W x D x H) / Weight...
  • Page 26 6. Product Warranty 6. Product Warranty - This product is guaranteed in accordance to the 「Consumer Compensation Regulations of South Korea」. - The warranty period is calculated from the date of purchase. (If the actual purchase date cannot be confirmed, the warranty period is calculated from one month since the date of manufacture.) - The warranty period of this product is 1year.
  • Page 27 - When replacing consumable parts (projector lamp, modeling bed film, filter, etc.) that are worn during normal use - Product failure due to an external cause, not a defect in the product itself - When replacing the UV LCD (replacement cycle for INNI 3D Printer is 5 months)
  • Page 28 www.aoninni.com INNI_USER MANUAL_191225PS #2201,2508 A-dong, Gunpo IT Valley, 17 Gosan-ro, 148 Beon-gil, Gunpo-si, Gyeonggi-do, Republic of Korea +82 (0)31 689 5012 +82 (0)31 689 5019 Call Center. +82 (0)70 4304 4996...
