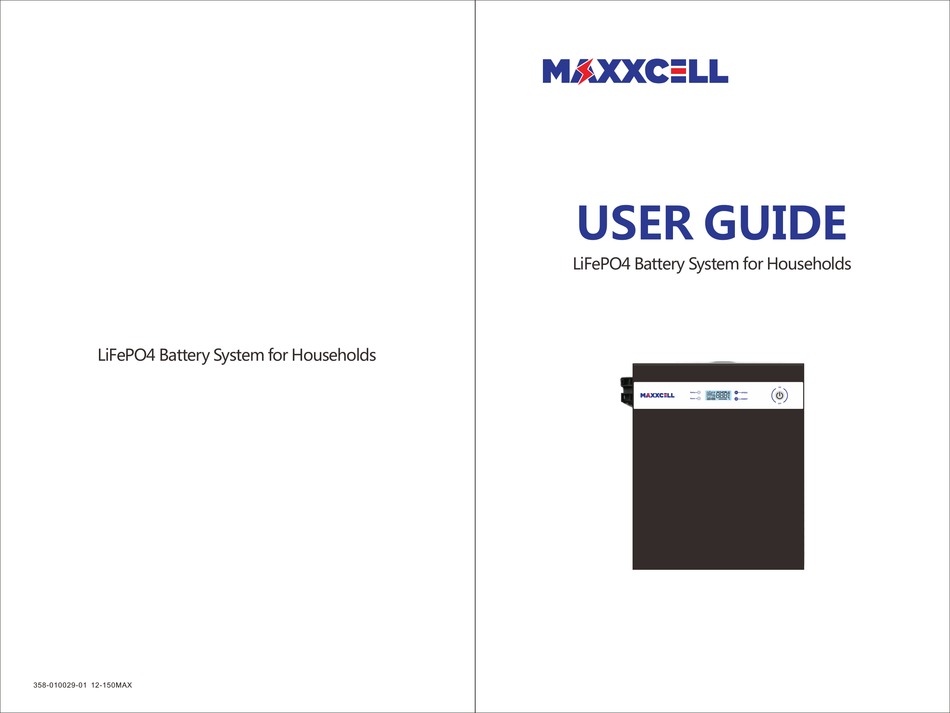

- Page 1 USER GUIDE LiFePO4 Battery System for Households LiFePO4 Battery System for Households 8. 8 . 8 BATCELL MAXMIN ERROR ％ SYNC DISCHARGING 358-010029-01 12-150MAX...
-
Page 2: Table Of Contents
LiFePO4 Battery System for Households Contents 1 ABOUT THIS MANUAL 1.1 Purpose 1 ABOUT THIS MANUAL ..................1 This manual describes the introduction, installation, operation and emergency situations of the battery bank. 1.1 Purpose ....................1 Please read this manual carefully before installations and operation. Keep this manual for future reference 1.2 Scope .................... -
Page 3: Introduction
LiFePO4 Battery System for Households LiFePO4 Battery System for Households 2. INTRODUCTION 2.3 Specifications Model 12-150MAX 12-200MAX Purpose built solar and wind energy storage battery pack. Designed for simple 2 wire installation without the complexity of Inverter and battery BMS compatibility. -
Page 4: Installation
LiFePO4 Battery System for Households LiFePO4 Battery System for Households 3. INSTALLATION 3.3 Connection for Parallel Mode The battery supports parallel connection for capacity expansion. Connect parallel batteries as displayed below. 3.1 Unpacking and Inspection Before installation, please inspect the unit. Make sure that nothing inside the package is damaged. You should have received the following items inside of package. -
Page 5: Operation
LiFePO4 Battery System for Households LiFePO4 Battery System for Households 4.1 Operation and Display Panel Note: A maximum of 6 batteries, connected in parallel is permitted The Operation and display panel, shown in the below chart, is on the front panel of the battery pack. -
Page 6: Lcd Setting
LiFePO4 Battery System for Households LiFePO4 Battery System for Households 5. LCD Setting Function description Icon Press and hold the “DN/ENT” to enter Settings mode, Press the “DN/ENT”or “UP/ESC” button to select Settings Program required. Then, press and hold “DN/ENT” button to confirm the selection. “UP/ESC” button to exit. -
Page 7: Display Information
LiFePO4 Battery System for Households LiFePO4 Battery System for Households 6. Display Information Software Version = 1.00 The LCD displays battery details as per the below table. To change the LCD information displayed, press the“DN/ENT”or “UP/ESC”key. Software Version Selectable information... -
Page 8: Troubleshooting
first 5 years from the date of purchase. Any violation of this manual may void the warranty. Limitation of Liability Any product damage or property loss caused by the following conditions, MaxxCell does not assume any direct or indirect liability.
