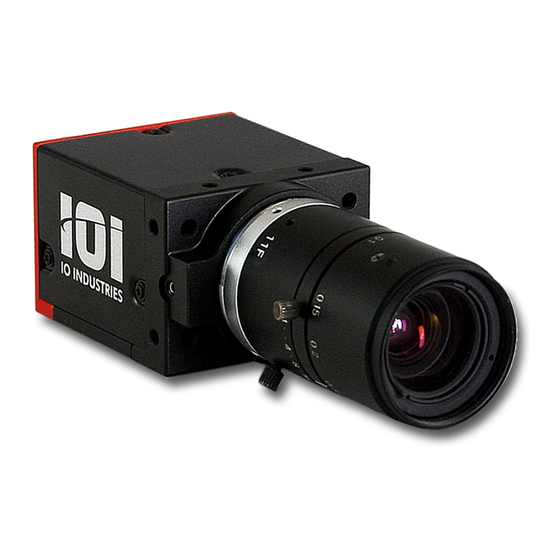

3G-SDI 2K HDR CAMERA SERIES
User's Manual
Revision 3.0
Copyright © 2019 IO Industries Inc. All rights reserved.
Victorem is a pending trademark of IO Industries Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Victorem 2KSDI-Mini and is the answer not in the manual?

Questions and answers

Summary of Contents for ioi Victorem 2KSDI-Mini

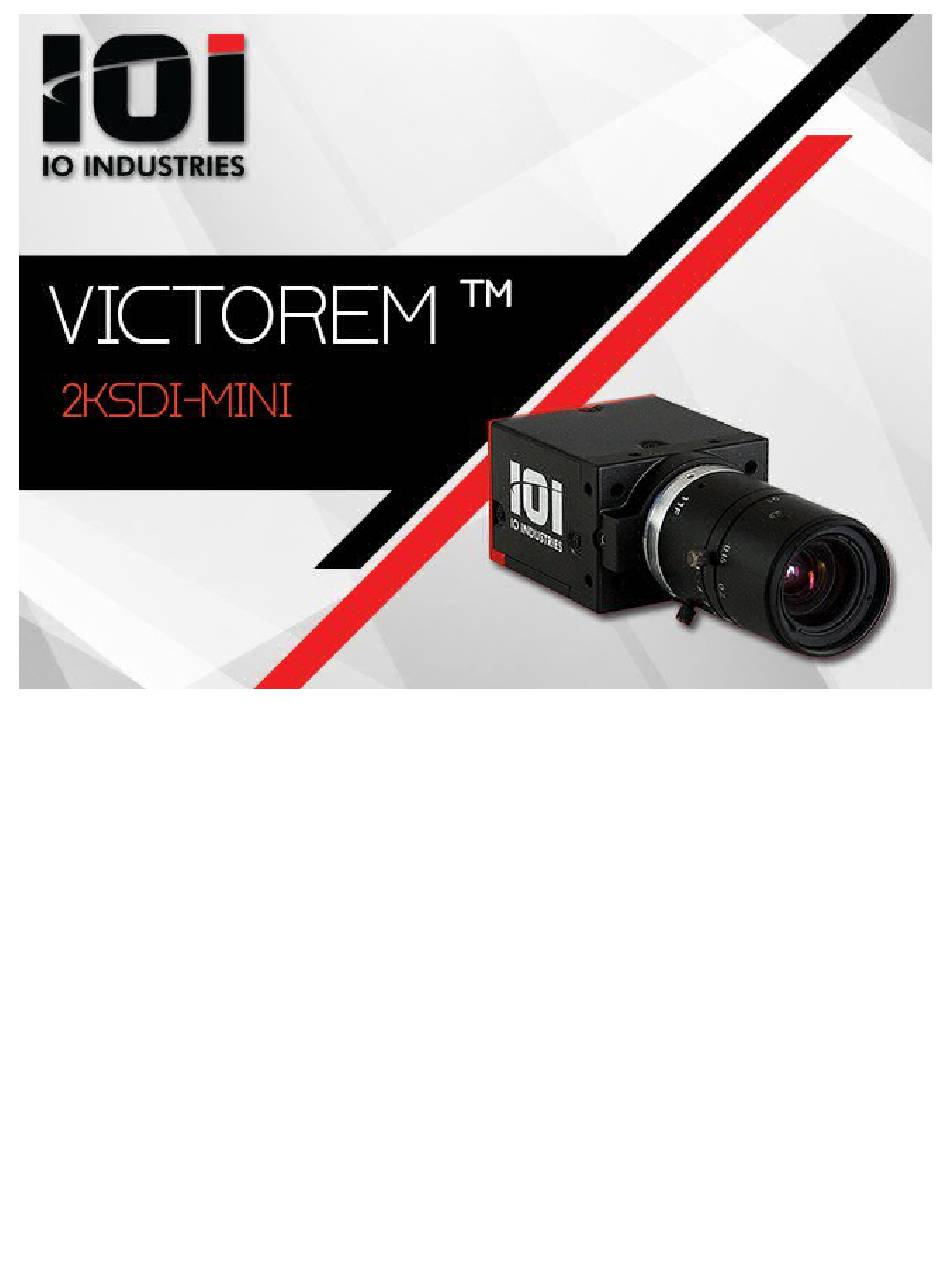

  • Page 1 3G-SDI 2K HDR CAMERA SERIES User's Manual Revision 3.0 Copyright © 2019 IO Industries Inc. All rights reserved. Victorem is a pending trademark of IO Industries Inc.
  • Page 2 Warranty The Victorem 2KSDI-Mini product family is warranted for one (1) year from the date of purchase unless otherwise agreed in writing. If the product proves to be defective during this warranty period, IO Industries Inc. will, at its discretion, either repair or replace the product at no cost. In the case where a new device is to be provided but the product has been discontinued, a product with similar or better performance capabilities and features will be provided.
  • Page 3 2KSDI-Mini User's Manual VICTOREM About IO Industries Inc. IO Industries Inc. designs cutting-edge digital video equipment. Since 1991 we have focused on providing our customers with high performance and high quality solutions for all types of digital video applications. Our products are proudly designed and built in Canada, at our headquarters in London, Ontario.

  • Page 4: Table Of Contents

    2KSDI-Mini User's Manual VICTOREM TABLE OF CONTENTS 1 Introduction............................6 1.1 Output Formats..........................6 1.2 Camera Highlights.........................7 2 Mechanical.............................8 2.1 Mechanical Specifications......................9 2.2 Power..............................9 2.3 Lens..............................10 2.3.1 DC Iris...........................11 3 Environmental............................12 3.1 Temperature ..........................12 3.2 Shock and Vibration........................12 4 Sensor Specifications...........................13 5 Remote Control............................14 5.1 On Screen Display........................15 5.1.1 Sub-Menus..........................16 5.2 Command Protocol........................20...
  • Page 5 2KSDI-Mini User's Manual VICTOREM 6.9.4 Direct Control........................30 6.10 Sync View...........................31 6.11 Misc View............................32 6.11.1 Image Flip..........................32 6.11.2 Image Enhancement......................32 6.11.3 Output Range........................32 6.11.4 Chromatic Error Correction....................33 6.11.5 Test Pattern..........................33 6.11.6 Flat Field Correction......................33 6.11.7 Temperatures........................33 6.11.8 Bad Pixel Replacement......................33 6.11.9 Save/Load Configuration.....................33 7 Camera Commands..........................34 7.1 Command Summary........................35 7.2 Video Format Commands......................43...

  • Page 6: Introduction

    VICTOREM Introduction The compact Victorem 2KSDI-Mini camera series is designed for a broad range of applications, from specialty video production to aircraft or vehicle recording and security or surveillance. The high- quality Sony CMOS sensors give the 2KSDI-Mini cameras outstanding image quality and high dynamic range.

  • Page 7: Camera Highlights

    2KSDI-Mini User's Manual VICTOREM 1.2 Camera Highlights Superior image quality • Low noise and high dynamic range • Multiple output format options • Multiple image sampling formats, 4:2:2 / 4:4:4 / RAW • ISO settings in ½ stop increments (3dB) •...

  • Page 8: Mechanical

    2KSDI-Mini User's Manual VICTOREM Mechanical Mechanical drawings of camera body shown in Figure 1. Front Rear Bottom Side Figure 1. Mechanical drawings IO Industries Inc. www.ioindustries.com Revision 3.0...

  • Page 9: Mechanical Specifications

    2KSDI-Mini User's Manual VICTOREM 2.1 Mechanical Specifications Summary of mechanical specifications are shown in Table 3. Specification Description Size 33.0 mm x 44.0 mm x 53.7 mm Weight 140 g (with no lens) Mounting Holes Bottom – 4x M3 x 0.5 Other sides –...

  • Page 10: Lens

    2KSDI-Mini User's Manual VICTOREM Typical power consumption for 2KSDI-Mini cameras is shown in Table 5. Model Configuration Typical Power (12V supply) 2K/1080P 60Hz, 3G-SDI (res 2, fps 9) 0.29A, 3.5W 2K(M)SDI-Mini 2K/1080P 30Hz, HD-SDI (res 2, fps 4) 0.26A, 3.1W 720P 50 Hz HD-SDI (res 0, fps 7) 0.25A, 3.0W 2K/1080P 60Hz, 3G-SDI (res 2, fps 9)

  • Page 11: Dc Iris

    2KSDI-Mini User's Manual VICTOREM 2.3.1 DC Iris All 2KSDI-Mini cameras are available in a “D” variant that includes an alternate lens connector pinout (Table 7) that supports DC iris lenses. Description Drive+ Damp+ Damp- Drive- Table 7. DC iris lens connector Pinout IO Industries Inc.

  • Page 12: Environmental

    2KSDI-Mini User's Manual VICTOREM Environmental 3.1 Temperature The operating temperature range of the 2KSDI-Mini cameras is -30ºC to 65ºC, with 20-85% relative humidity non-condensing. The Field Programmable Gate Array (FPGA) die and image sensor temperatures can be monitored through the RS485 interface (see tmp and stp commands in Table 15). The storage temperature range is -40ºC to 85ºC, 10-90% relative humidity non-condensing.

  • Page 13: Sensor Specifications

    2KSDI-Mini User's Manual VICTOREM Sensor Specifications The 2KSDI-Mini camera sensor specifications are shown in Table 9. Specification 2KSDI-Mini 2KMSDI-Mini 2KM5SDI-Mini 2KSDI-Mini RS Sony Pregius Sony Pregius Sony Pregius Sony Exmor-R Sensor IMX265 IMX252 IMX250 IMX183 Active Pixels 2048 x 1080 2048 x 1080 2464 x 2056 4096 x 2160...

  • Page 14: Remote Control

    2KSDI-Mini User's Manual VICTOREM Remote Control A handheld remote control can be used to control the 2KSDI-Mini cameras. The remote body is made from machined aluminum with a 9-button membrane keyboard making it extremely rugged and durable. On three sides of the remote there are 1/4"-20 (tripod) mounting holes and the bottom side has a 4-pin LEMO connector for power and communications.

  • Page 15: On Screen Display

    2KSDI-Mini User's Manual VICTOREM The mechanical specifications are shown in Table 10. Specification Description Size 62.0 mm (w) x 99.3 mm (h) x 17.5 mm (d) Weight 150 g Mounting Holes 3x 1/4”-20 (tripod), top and sides Power/Comm Connector 4-pin LEMO EGJ.0B.304-CLA Mating connector used on IO Industries cables: FGJ.0B.304-CLLD52Z Table 10.

  • Page 16: Sub-Menus

    2KSDI-Mini User's Manual VICTOREM Figure 5. Main menu The main menu is overlaid in the top left of the image, inside the safe action zone. The menu is alpha blended with the luma portion of the image for transparency. The top line or title line of the menu indicates whether the main menu or sub-menu is currently being displayed.
  • Page 17 2KSDI-Mini User's Manual VICTOREM Figure 6. Exposure sub-menu The Left scroll button symbol is shown in the top left corner of any sub-menu to indicate how to return to the main menu. Press the Left scroll button to return to the main menu. Use the Up and Down scroll keys on the keypad to navigate the selected sub-menu commands, indicated by the up/down arrow in the top right corner of the menu.
  • Page 18 2KSDI-Mini User's Manual VICTOREM Figure 7. Exposure sub-menu with exposure command selected When a command is selected the current setting is shown to the right of the sub-menu. Only the selected command line is displayed with yellow text and the rest of the sub-menu text is changed to a mid grey value.
  • Page 19 2KSDI-Mini User's Manual VICTOREM Figure 8. Video format sub-menu with format command selected For commands where the Enter key is shown at the end of the parameter line, scroll through the list of parameters using the Up and Down scroll keys and to set the desired parameter press the Enter button. After the command completes the on-screen menu will return to the sub-menu.

  • Page 20: Command Protocol

    2KSDI-Mini User's Manual VICTOREM 5.2 Command Protocol The remote control uses a simple ASCII command protocol similar to the host RS485 adapter. Below are some key points about the serial control: 8-bit, 115200 baud, 1 stop bit and no parity. •...

  • Page 21: Host Control Utility

    VICTOREM 6 Host Control Utility A utility is provided to control the Victorem 2KSDI-Mini cameras using a USB to RS-485 adapter connected to a PC running a 32-bit or 64-bit Windows (XP and higher) operating system. Other RS-485 adapters can be used, however contact IO Industries for a list of supported devices.

  • Page 22: Slider Bar Control

    2KSDI-Mini User's Manual VICTOREM 6.3 Slider Bar Control Many parameters in the control utility are changed using a slider bar control. Use the mouse to move the slider bar to change values, while holding down the left mouse button. Once focus is on the slider bar the following keyboard options can also be used to change the setting: Left/right or up/down arrow keys for fine adjustment.

  • Page 23: Video Format

    2KSDI-Mini User's Manual VICTOREM 6.4.2 Video Format Use the Resolution drop down list to chose the camera's output resolution. The resolution selection overrides the color sampling and frame rate options. For example if the current color sampling is set to 4:4:4 RGB and the resolution is changed to 1080i, the color sampling will be automatically switched to 4:2:2 YCbCr.

  • Page 24: Exposure Time

    2KSDI-Mini User's Manual VICTOREM Figure 10. Exposure view 6.5.1 Exposure Time Use the slider bar to or enter a value to set the exposure time. Exposure time in the camera is in units of lines, but the Exposure Time Unit selection changes the control's display to be either lines, microseconds, degrees or fractions of a second as desired.

  • Page 25: Auto Exposure Modes

    2KSDI-Mini User's Manual VICTOREM Model / Mode Exposure Error (μs) RS models / 1080p or 2K, 60 2.18 or 59Hz RS models / all other modes 2.11 All other models and modes 13.73 Table 14. Exposure error 6.5.2 Auto Exposure Modes The Exposure view with automatic exposure enabled is shown in Figure 11.

  • Page 26: Gain/Level View

    2KSDI-Mini User's Manual VICTOREM When automatic exposure is enabled, the camera calculates the average luma of a 1/5 height by 1/5 width zone and compares it to the Target Luma value. Adjustments are made to the exposure, gain and aperture to reach the target value. Use the edit box or slider bar to adjust Target Luma. Move the auto exposure zone by selecting its X and Y position with the drop down lists.

  • Page 27: Master Pedestal

    2KSDI-Mini User's Manual VICTOREM 6.6.2 Master Pedestal Use the slider bar or edit box in the Master Pedestal section to set the output master pedestal. 6.6.3 Black Balance The black balance can be used to apply an offset to each color plane independently. The range of the offsets is -511 to 511.

  • Page 28: Balance

    VICTOREM 6.7.1 Balance The Victorem 2KSDI-Mini has a number of color temperature presets from 2000K to 8000K, in 100K increments. Select the desired color temperature from the Use Preset Temperature list to load the color matrix with the preset. With a color preset selected the red, green, and blue multipliers in the Color Correction Matrix (CCM) cannot be changed and will be greyed out.

  • Page 29: Lut View

    The LUT control view is shown in Figure 15. 6.8.1 LUT The Victorem 2KSDI-Mini cameras have two user lookup table (LUT) stages in the data path. The first stage allows separate lookup tables to be applied to each of the color planes independently before color space conversion.

  • Page 30: Lens View

    2KSDI-Mini User's Manual VICTOREM 6.9 Lens View The Lens control view is shown in Figure 17. This view is used to control lenses connected to a camera with an EF lens mount. The Lens control view is not available for “D” model cameras that support DC Iris lenses.

  • Page 31: Sync View

    The Sync/Misc control view is shown in Figure 18. Figure 18. Sync view The Victorem 2KSDI-Mini has a sync input on the back of the camera supporting tri-level sync signals. Uset the radio button to enable tri-level sync. Possible status indications are listed in .

  • Page 32: Misc View

    2KSDI-Mini User's Manual VICTOREM 6.11 Misc View The Misc View is shown in Figure 19. Figure 19. Sync view 6.11.1 Image Flip The output of the camera can be flipped in the vertical and/or horizontal (non-RS only) directions. 6.11.2 Image Enhancement Image Enhancement can be enabled to improve the sharpness of edges and lines in the output image.

  • Page 33: Chromatic Error Correction

    The dynamic pattern adds a moving vertical line and a moving horizontal line. 6.11.6 Flat Field Correction For lenses that do not evenly illuminate the camera's sensor, the Victorem 2KSDI-Mini cameras include a flat field correction algorithm. Once calibrated, the flat field correction can eliminate lens vignetting.

  • Page 34: Camera Commands

    2KSDI-Mini User's Manual VICTOREM 7 Camera Commands For advanced users, control of a 2KSDI-Mini camera can be done using a terminal program or control can be incorporated into a custom user interface or application using the simple ASCII command protocol. Below are some key points about the serial control: 8-bit, 115200 baud (default), 1 stop bit and no parity.

  • Page 35: Command Summary

    2KSDI-Mini User's Manual VICTOREM 7.1 Command Summary Table 15 summarizes all available commands. The presence and size of a command's parameters are shown with the letter 'Y' (see Format column). Each letter 'Y' represents a hexadecimal digit from 0 to Command Format Description...
  • Page 36 2KSDI-Mini User's Manual VICTOREM Command Format Description Sync Detect Returns 4-bit value (single hex digit) Bit 0 – line locked Current output clock trained to TLS line time ('1'). • Bit 1 – frame locked • Output frame locked to TLS input, with +/- 8 line times (0 analog point) ('1').
  • Page 37 2KSDI-Mini User's Manual VICTOREM Command Format Description RS485 Baud Rate sbd Y 0 – 9600 1 – 19200 2 – 38400 3 – 57600 4 – 115200 (default, remote) 5 – 230400 6 – 460800 Image Flip flp Y 0 – off 1 –...
  • Page 38 2KSDI-Mini User's Manual VICTOREM Command Format Description Overlay apo Y 0 – off 1 – on AUTO EXPOSURE AEC Min Exposure amn YYY Minimum auto exposure time in lines (H) Range 0x001 – max (amx) AEC Max Exposure amx YYY Maximum auto exposure time in lines (H) Range min (amn) - 0x454 AEC Min Gain...
  • Page 39 2KSDI-Mini User's Manual VICTOREM Command Format Description crg YYYY Default 0x1FDA (default matrix values changed in firmware version 10) RS model default 0x2026 crb YYYY Default 0x2027 RS model default 0x200D cgr YYYY Default 0x1F12 RS model default 0x1F1E cgg YYYY Default 0x2400 cgb YYYY Default 0x1F97...
  • Page 40 2KSDI-Mini User's Manual VICTOREM Command Format Description Green Tone LUT glt Y 12-bit LUT Blue Tone LUT blt Y 12-bit LUT Piecewise Gamma Curve yc1 YYYYYY Input (X) and output (Y) position of first kneepoint Kneepoint 1 X – bits 11:0, Y – bits 23:12 X range = 0x001 to (yc2 X –...
  • Page 41 2KSDI-Mini User's Manual VICTOREM Command Format Description Frame Number Fnm Y Replace the first pixel luma value with a frame counter. The (2KM5SDI-Mini Only) value counts from 64 to 940 before restarting to keep it within SDI data value limits. 0 –...
  • Page 42 2KSDI-Mini User's Manual VICTOREM Command Format Description ADMIN Camera Model Returns camera model string Victorem 2KSDI-Mini Serial Number Returns 8 character serial number Firmware Version Returns firmware version (2 char) Hardware Version Returns hardware version (2 char) Get Camera Parameters...

  • Page 43: Video Format Commands

    2KSDI-Mini User's Manual VICTOREM 7.2 Video Format Commands Notes on video format commands (res, sam and fps), and their interaction: Resolution command (res) takes top priority. • Can always be changed to any value in full range (0-3). • res command will change the current sampling and frame rate, and adjust their allowable •...

  • Page 44: Firmware Update Utility

    2KSDI-Mini User's Manual VICTOREM Firmware Update Utility The FPGA firmware in a 2KSDI-Mini camera can be updated using a USB to RS-485 adapter connected to a PC running 32-bit or 64-bit Windows operating system. The firmware update utility, victorem_isp.exe, is in the Bin sub-folder of the install directory for the Victorem software, typically C:\\Program Files\IO Industries\Victorem\Bin.

  • Page 45: Order Numbers

    2KSDI-Mini User's Manual VICTOREM 9 Order Numbers Part Number Description 2KSDIMINI Camera, 2K, 1080p/i, 720p, 1/2in. IMX265 sensor, color, global shutter, OLPF/IR filter, 3G/HD-SDI 2KSDIMINIRS Camera, 2K, 1080p/i, 2/3in. IMX183 sensor, color, rolling shutter, OLPF/IR filter, 3G/HD-SDI 2KSDIMINID Camera, 2K, 1080p/i, 720p, 1/2in. IMX265 sensor, color, global shutter, OLPF/IR filter, 3G/HD-SDI, DC auto iris Camera, 2K, 1080p/i, 2/3in.

  • Page 46: Accessories

    2KSDI-Mini User's Manual VICTOREM 10 Accessories Part Number Description VICPWRLIO AC to 12V DC power adapter (universal) with LEMO for RS485 CABVICBATT Battery power cable with PowerTap connector and LEMO for RS485 ACPWRTAP AC power adapter (universal) with PowerTap connector CAB2KMINIAEF Adapter cable, connects 2KSDI-Mini to VICLENSMOUNT-A CAB2KMINIDCI...

  • Page 47: Document Revision History

    2KSDI-Mini User's Manual VICTOREM 11 Document Revision History Revision Date Description 2018-04-12 Preliminary release. 2018-08-24 Add control program. 2018-09-17 Add 2KM5SDI-Mini model 2018-12-20 Document improved data path and associated commands 2019-02-22 Updated firmware revision history 2019-03-01 Updated firmware revision history 2019-03-27 Updated firmware revision history 2019-04-09...

  • Page 48: Firmware Revision History

    2KSDI-Mini User's Manual VICTOREM 12 Firmware Revision History 2KSDI-Mini, 2KMSDI-Mini Revision Date Description 2018-05-16 Preliminary release. 2018-06-05 Move overlay to primary output. Improve sharpening filter. Add 2KMSDI-Mini model. Add D models. 2018-06-28 Fix user set loading lockup. 2018-08-15 Fix loading color temperature preset from user set. Adjust CCM, offset, and black balance minimum to match 4KSDI-Mini 2018-08-24 Fix bug in EF lens control...
  • Page 49 2KSDI-Mini User's Manual VICTOREM 2KM5SDI-Mini Revision Date Description 2018-05-16 Preliminary release. 2018-06-05 Move overlay to primary output. Improve sharpening filter. Add 2KMSDI-Mini model. Add D models. 2018-06-28 Fix user set loading lockup. 2018-08-15 Fix loading color temperature preset from user set. Adjust CCM, offset, and black balance minimum to match 4KSDI-Mini 2018-08-24 Fix bug in EF lens control...
  • Page 50 2KSDI-Mini User's Manual VICTOREM 2KSDI-Mini D, 2KMSDI-Mini D Revision Date Description 2018-05-16 Preliminary release. 2018-06-05 Move overlay to primary output. Improve sharpening filter. Add 2KMSDI-Mini model. Add D models. 2018-06-28 Fix user set loading lockup. 2018-08-15 Fix loading color temperature preset from user set. Adjust CCM, offset, and black balance minimum to match 4KSDI-Mini 2018-12-19 Corrected color shift when using Color Correction Matrix (CCM).
  • Page 51 2KSDI-Mini User's Manual VICTOREM 2KSDI-Mini RS Revision Date Description 2018-05-16 Preliminary release. 2018-06-05 Move overlay to primary output. Improve sharpening filter. Add 2KMSDI-Mini model. Add D models. 2018-06-21 Improve scaler. 2018-06-28 Fix user set loading lockup. 2018-08-15 Fix loading color temperature preset from user set. Adjust CCM, offset, and black balance minimum to match 4KSDI-Mini 2018-08-24 Fix bug in EF lens control...
  • Page 52 2KSDI-Mini User's Manual VICTOREM 2KSDI-Mini RS D Revision Date Description 2018-05-16 Preliminary release. 2018-06-05 Move overlay to primary output. Improve sharpening filter. Add 2KMSDI-Mini model. Add D models. 2018-06-21 Improve scaler. 2018-06-28 Fix user set loading lockup. 2018-08-15 Fix loading color temperature preset from user set. Adjust CCM, offset, and black balance minimum to match 4KSDI-Mini 2018-12-19 Corrected color shift when using Color Correction Matrix (CCM).
