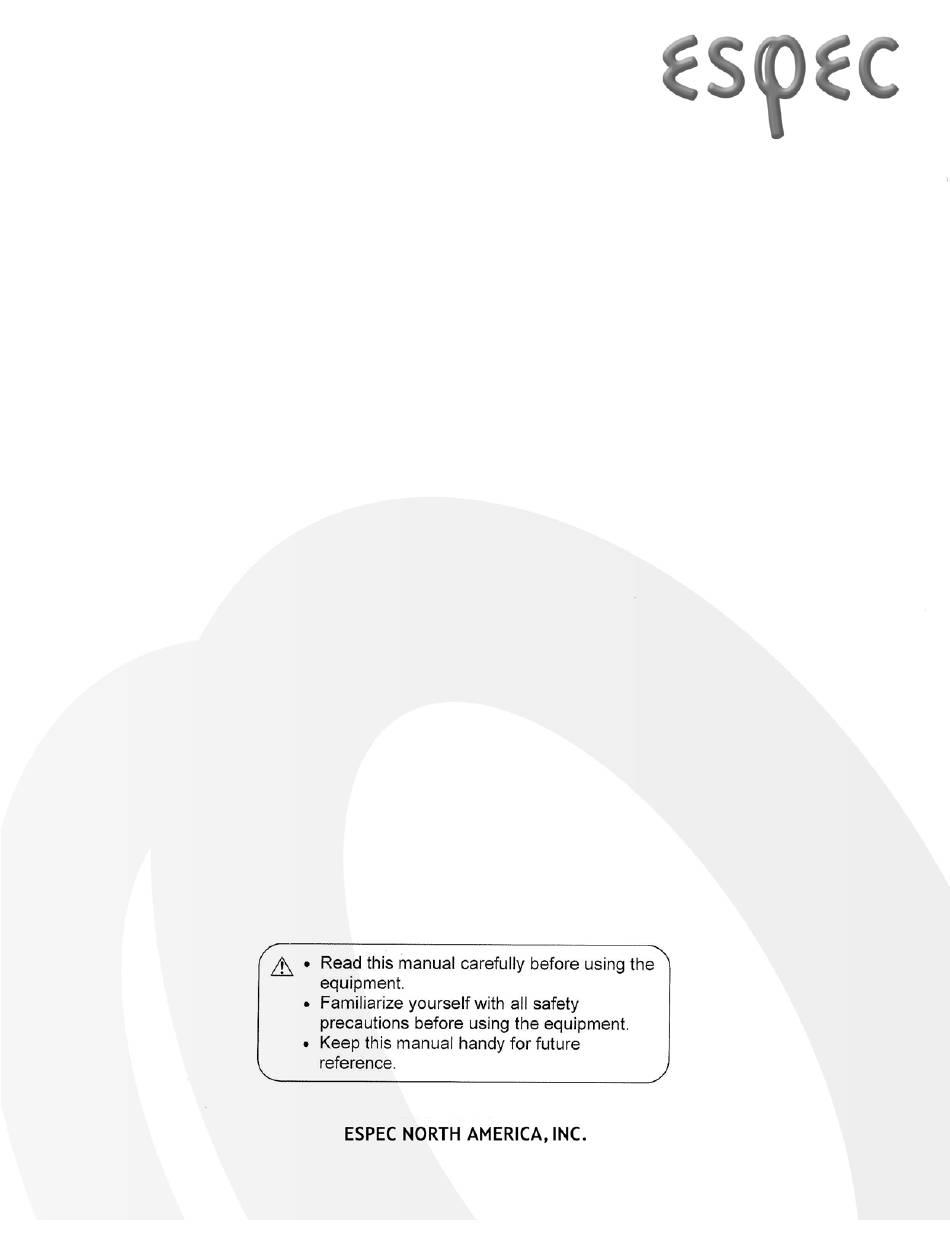

- Page 1 P-300 WEB CONTROLLER CONFIGURATION AND TROUBLESHOOTING MANUAL...
-
Page 3: Table Of Contents
Web Controller Configuration 9 Introduction 9 Web Controller Configuration Procedure 11 Additional Web Controller Configuration Functions 13 Custom Temp-Humidity Performance Graphic Files 13 Uploading and Downloading Configuration Parameter Files 13 Web Controller Configurations Map 14 P-300 Web Controller Configuration and Troubleshooting Manual... - Page 4 P-300 Web Controller Configuration and Troubleshooting Manual...
-
Page 5: P-300 Communication Settings
Connect the DB9 end of the cable to the serial (COM1) port of your PC. For further explanation of the steps to follow to connect and communicate serially, follow steps 1-10 of the “Web Controller Firmware Download Procedure” document. P-300 Web Controller Configuration and Troubleshooting Manual... -
Page 6: Web Browser Alert Box Listings And Descriptions
The “scale” function it is tied to was hidden for debugging purposes only. Program Page Cannot erase ROM programs (21 to 30). This error appears when we try to save to a ROM program slot. P-300 Web Controller Configuration and Troubleshooting Manual... - Page 7 Setup Page Error saving chamber name. This appears when there is a problem saving the chamber name. Setup Page TCP forwarder settings saved. P-300 Web Controller Configuration and Troubleshooting Manual...
-
Page 8: Manually Clearing Trend Graph History
Num bers within the cham ber’s hum idity range. Tim e Hours 0 to 999 Tim e M inutes 0 to 59 Product Control Deviation Lim its Positive num bers within the cham ber’s deviation lim its. P-300 Web Controller Configuration and Troubleshooting Manual... -
Page 9: Device Configuration
Any valid hostname or IP address. SMTP Port Any valid port number (1 to 65535). SMTP User Any valid SMTP user name. Send E-mail as Any valid e-mail address. Alert Addresses Any line-separated list of e-mail addresses. P-300 Web Controller Configuration and Troubleshooting Manual... -
Page 10: Hardware Connection & Installation Details
Mount the web server assemly onto the I/O Boards, using stand offs. Connect the P-300/Web Control RS-232 communications cable between the P-300 main board connec- tor CNM22 and the serial connection on the web server (labeled #3 on the image above). -
Page 11: Hardware Installation Verification
Turn on the P-300 HMI. After about 30 seconds, you should see the communications light under the P-300 HMI start to blink. It should blink on and off once about every 60 seconds after RS232 communications has been estab- lished between the SCP and the web server. - Page 12 P-300 Web Controller Configuration and Troubleshooting Manual...
-
Page 13: Web Controller Configuration
ENA standard test chamber models. In order to use a preset, skip the instructions in section 2.1.1, and go directly to the Load Preset Instructions in the “Web Controller Configuration Procedure” on page P-300 Web Controller Configuration and Troubleshooting Manual... - Page 14 Actual Data Test chamber has humidity Constant setup screen (yes or no) If the chamber has humidity, This data is not on the P-300 does it have “low humidity” screens, verify actual with or “ultra low humidity” chamber specification or...
-
Page 15: Web Controller Configuration Procedure
Click the appropriate “on” or “off” radio button for “Humidity control”. This value corresponds to item #2 from the data chart that you filled in at the start of this process. P-300 Web Controller Configuration and Troubleshooting Manual... - Page 16 P-300 Web Controller Configuration and Troubleshooting Manual...
-
Page 17: Additional Web Controller Configuration Functions
“Edit Config” section of the screen update with the new parameters. Click the “Save” button, and then the “Reboot chamber controller” button (at the bottom of the page) to complete the process. P-300 Web Controller Configuration and Troubleshooting Manual... -
Page 18: Web Controller Configurations Map
Walkin PANELIZED with walk-in_low_humidity.gif PTCON low humid option *Note: Standard polling interval of 60s will give 18 days of storage. ***Standard web server firmware ships with “EPU,Z no PTCON” configuration file. P-300 Web Controller Configuration and Troubleshooting Manual... - Page 19 P-300 Web Controller Configuration and Troubleshooting Manual Original 1.00: January 7, 2013 Edited and Published by: Espec North America 4141 Central Pkwy Hudsonville MI 49426 Phone: 616-896-6100 Fax: 616-896-6150 www.espec.com...
