INSTRUCTION MANUAL CODE 80300 REV C 09/2020 Page: 2 Indice 1. COMPONENTES / COMPONENTS ........................2 2. INFORMACIÓN GENERAL Y SEGURIDAD ....................3 3. DESCRIPCIÓN DEL EQUIPO ........................3 4. LISTA DE EMBALAJE ............................3 5. INSTALACIÓN Y MONTAJE ..........................3 6. PUESTA EN MARCHA ...........................4 7.
Pueden estar a una temperatura elevada. violencia. 3. DESCRIPCIÓN DEL EQUIPO Los termostatos de inmersión RONER se utilizan en la cocción de alimentos y en el calen- tamiento de los baños. Estos equipos incorporan una bomba de circulación que permite regular la temperatura con precisión y estabilidad y mejorar la homogeneidad dentro del baño.
INSTRUCTION MANUAL CODE 80300 REV C 09/2020 Page: 4 6. PUESTA EN MARCHA 6.1 Panel de mandos 1. Tecla de Paro / Inicio ciclo 2. Tecla Reducir Valor 3. Tecla Incrementar Valor 4. Ajuste (cambio entre temperatura / tiempo). 6.2 Puesta en marcha 1.
La manipulación de los circuitos electrónicos por personal no autorizado puede Riesgo eléctrico provocar daños de difícil reparación. Consulte al servicio técnico autorizado de ICC. LIMPIEZA Para la limpieza de las partes accesibles del equipo, utilice limpiacristales o un producto similar.
10. GARANTÍA Este producto tiene una garantía de un año. La garantía no cubre los daños causados por un uso indebido o por causas ajenas a ICC. Cualquier manipulación del equipo por personal no autorizado anula los beneficios de la garantía.

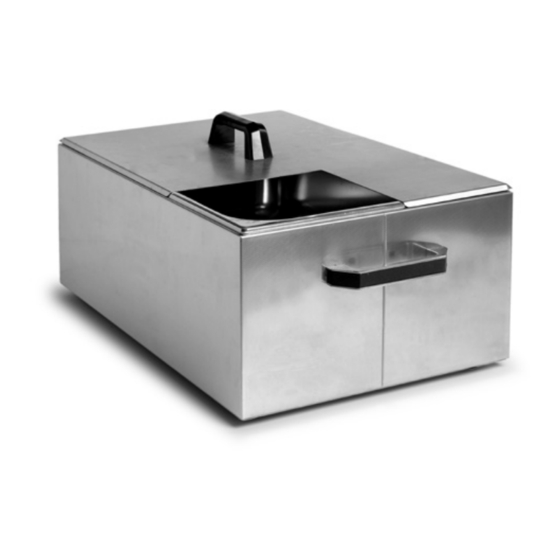

5.1 Liquid tank A bucket or tank will be needed for the thermostat to operate. See ICC’s product range on the catalogue. Our tank is made with a thermal insulation of large capacity 0.034W / mC, 40mm thick which allows for a greater stability and preservation of temperature.
INSTRUCTION MANUAL CODE 80300 REV C 09/2020 Page: 8 6. STARTING UP 6.1 Control panel 1. Stop / Start cycle Key 2. Reduce value key 3. Increase value key 4. Adjustment (change between temperature / time). 6.2 Starting up 1. With the equipment installed in the bucket, fill it with water to cover the pump completely.
7. MAINTENANCE & CLEANING MAINTENANCE: Before operating inside, disconnect from the mains. The manipulation of the equipment internal electronic circuits by unauthorized personnel can cause irreparable damage. Take it to one of ICC’s authorized Electric risk technical services. CLEANING: To clean the accessible parts of the equipment, use a cleaner or a similar product.
This product is guaranteed for one year. It does not cover damages caused by an incorrect use or causes beyond the control of ICC. Any manipulation of the equipment by personnel not authorized by ICC automatically cancels the guarantee. .P. SELECTA s.a.u.
