Connecting Speakers Together
(USA and Canada only)
In order to conserve wall outlets, the AV570
speakers can be connected to each other.
1. Plug the AC power cord into the "power
input" outlet on the back of one speaker.
2. Plug the two-pronged end of the AC power cord
into the wall outlet.
3. Plug a second AC power cord into the back of
the first speaker.
4. Connect the other end of the power cord to the
"power input" outlet on the back of the second
speaker.
Note: Do not connect more than two Powered
Partners together in this manner.
Placing the Speakers
The AV570 speakers have been designed to
provide a superior listening experience in a home
environment. The following are some basic
suggestions for achieving the best results from your
new speakers.
• Speakers should be placed near a wall, on a
shelf, or on the floor.
• Orienting the speakers so they directly face
the preferred listening area can have audible
benefits in stereo imaging and depth of
image.
• The amount the speakers are "toed in" for
best performance should be determined by
experimentation. For example, when the
desired listening area is large relative to the
distance from the speakers, the speakers
should be angled in even more so that their
axes cross in front of the listening area.
• The minimum separation between the
loudspeakers is determined by their distance
from the listening position. If they are placed
too close together, the stereophonic stage
will be narrow and restricted. Stage "width"
will broaden as the speakers are moved
apart, but too large a separation will give the
effect of two separate sound sources with no
central images and a poor blend of sound
between the speakers. A good starting point
is to have the separation between the
speakers be the same as the distance from
each speaker to the listening position.
Using the Controls
Power On/Off Switch
This switch is located on the input panel on the back
of the speakers. Pushing the button in the "on"
direction turns the speaker's built-in amplifier on. The
green light is illuminated if the speaker is turned on.
Automatic On/Off and Tri-Level LED Indicator
After the power is turned on, the speakers are ready
to receive a music signal. Approximately one minute
after the music stops, the unit will automatically shut
down to a low power consumption mode, and the
LED indicator light will dim to a pale green. This
feature allows you to leave the power on all the time
without concern for consuming too much power.
For extended periods of non-use, push the power
switch to the "off" position, and the LED will turn off.
Volume Control
This control is used to set the maximum volume that
can be achieved for a given input. When using a
personal stereo (or any other device which has its
own volume control) as a sound source, turn the
volume control knob on you speakers to the largest
dot on the dial, then use the volume control on your
sound source to control the actual volume level while
listening.
If the sound source for your Powered Partners does
not have a volume control (for example, a stereo
tuner) then the overall volume level can be controlled
by turning the volume control on each speaker.
Note: Do not turn on the Powered Partners
with the volume control turned fully up.
Treble Control
The treble on the AV570 speakers can be
controlled by turning the treble control clockwise
(toward the treble note depicted on the dial) for more
high-frequency output and counterclockwise to
decrease high frequency output.
Bass Control
AV570 speakers contain a bass boost
equalizer to contour the bass response of your
speaker system. The bass control increases or
decreases the amount of bass boost. For maximum
bass, turn the knob clockwise toward the bass note
depicted on the dial.
Note: For maximum volume without distortion,
turn the bass control all the way down. Placing
the Powered Partners on the floor or in a
corner will greatly increase bass response.

Mounting the Speakers

The Powered Partners AV570 speakers are
equipped with versatile mounting holes that can be
hidden if desired. Simply loosen the die-cast end cap
and flip around the spherical metal mounting cap to
expose the mounting holes.
The spherical metal end cap with mounting holes can
be installed in the top or bottom of the speaker. It is
locked in place by re-tightening the die-cast end cap.
The metal end cap has three holes with 8-32 threads
(1/2 inch deep) and one large center hole with 7/16-
10 threads (3/4 inch deep). For safety reasons, be
sure that the mounting surface and mounting method
selected can support at least 40 pounds.
For information about the availability of mounting
brackets, please call your Advent dealer or call
Advent directly at 800-225-9847.
Servicing the Speakers
If the speakers aren't functioning properly, please call
Advent at 800-225-9847.
If the speakers have to be returned for repair (either
inside or outside the warranty period), please first
make sure they are properly packed. Neither Advent,
its agents, the distributor, or the carrier can be held
responsible for damage due to poor packing.
In these circumstances, any repairs to correct transit
damage would be charged to the sender.

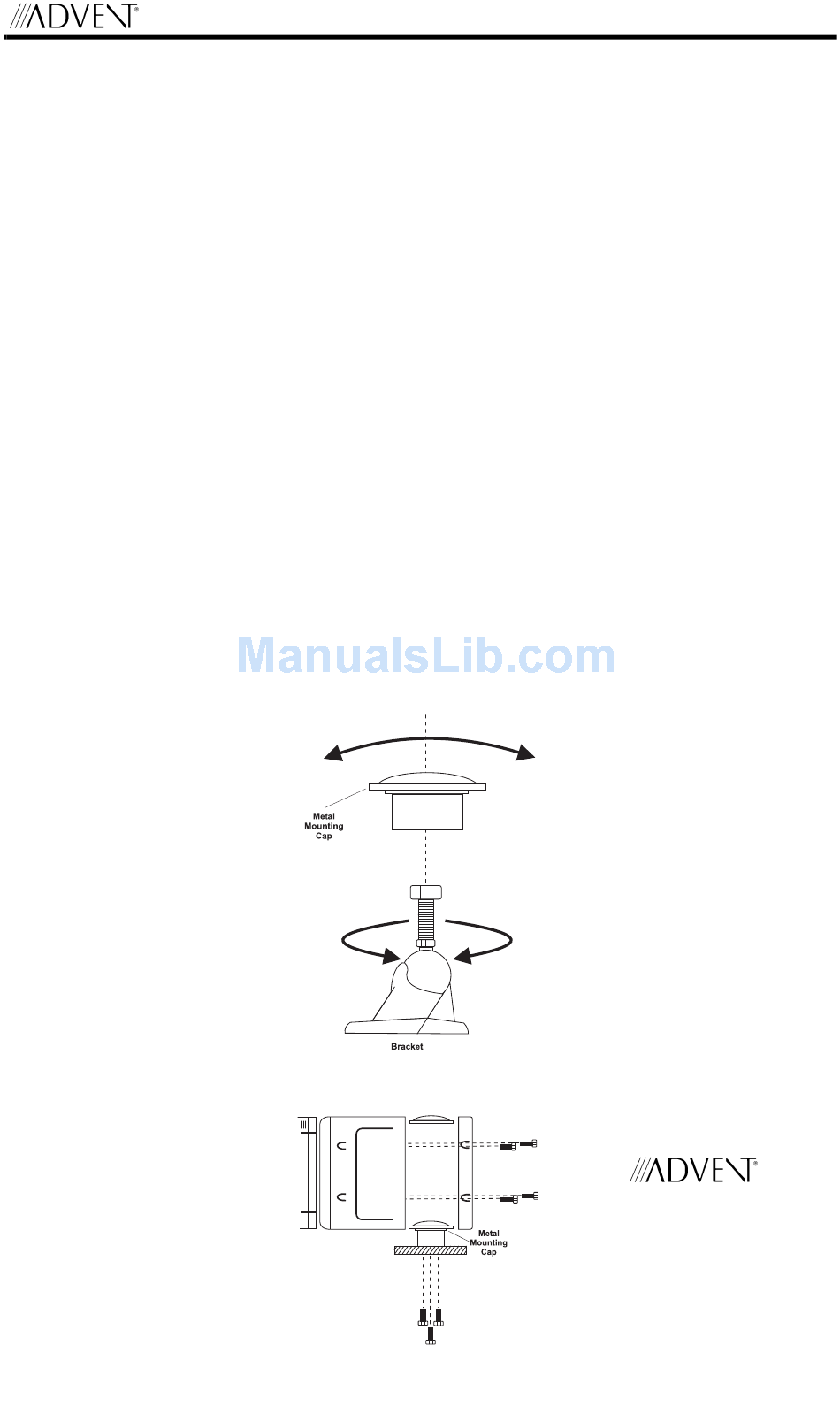

Metal Mounting Cap and Bracket
Mounting the Speakers
AV570 Instruction Manual
Cleaning the Speakers
The scratch-resistant finish of the AV570
speakers needs very little maintenance. If it needs
cleaning, simply wipe the surface with a damp cloth.
Do not use chemical cleaners on the surface.

Specifications

System Type
Fully self-contained powered two-way acoustic
suspension loudspeaker system.
Drive Units
5" (127 mm) polypropylene long-throw woofer and
liquid-cooled 1" (25 mm) tweeter. Both drive units are
shielded for compatibility with video systems.
Acoustic Output
Each loudspeaker system is capable of delivering
peak sound pressure levels at 1m in excess of 109
dB (AC power supply).
Power Requirements - AC Power Supply
120 volt version - 70 watts, 60 Hz; DC power supply:
9-25 volts, 14V nominal, 25V maximum.
Amplifier Performance
(AC Power Supply) 30 watts continuous per speaker,
<0.5% total harmonic distortion, 40Hz-20kHz, >85 dB
signal-to-noise ration (IHF A-network), 35 Watts
dynamic power.
Input Sensitivity
200mV for maximum output.
Input Impedance
20K ohms.
Frequency Response
-3 dB (half power) points at 40Hz and 20kHz.
(Performance depends on tone control settings.)
Crossover Frequency
5kHz.
Controls
Power on/off, LED power-on indicator, rotary volume
control, rotary bass control, rotary treble control, auto
power on/off.
Input/Output Panel
RCA receptacle for audio input, AC input socket, DC
input socket, AC output receptacle, on/off switch.
Cabinet Internal Volume
.015 cu. ft. (2.97 liters)
System Dimensions
(HxWxD): (Including grille) triangular shape 6 1/8" x
10 1/2" x 7 5/8" deep. (155mm x 267mm x 194mm)
System Finish
Die cast alloy case and end-cap, textured, scratch-
resistant paint, molded front panel, black metal grille.
System Weight
Approximately 8 lbs. (3.16kg) unpacked per speaker;
17 lbs (6.82kg) packed two speakers per carton.
Accessories Supplied
Removable AC power cord, 3.5mm stereo plug to
RCA plug adapters 10 ft. (3m) long, Allen wrench,
instruction manual.
Note: In keeping with Advent's policy of
continuous product development, we reserve
the right to change specifications of any
Advent product without notice if such a
change will, in our opinion, improve
performance or produce any other advantage
to the consumer or ourselves.
