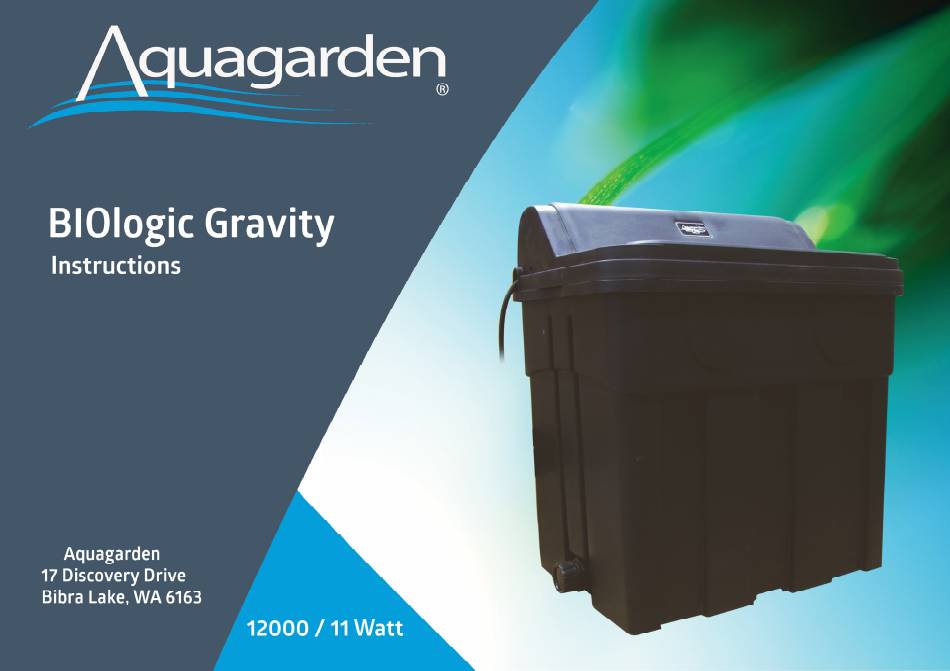

Summary of Contents for Aquagarden BIOlogic Gravity 12000
Page 2
① Label Instructions Before operating this appliance, please read this Instruction Manual carefully and keep it handy for future ② Upper cover With UVC reference. Please pay special attention to the Safety Instructions. Operate the unit correctly on the base of completely ③ Control window understanding the instructions. ④ Hose adapter General Safety Instructions ⑤ Seal Following charts are used in this Instruction Manual ⑥ UV lamp Warning! How to avoid possible personal hazard. ⑦ Band Danger! Avoid possible danger. ⑧ Tapping screw Caution! Describe the procedures you should obey or avoid to prevent the equipment or others from damage. ⑨ Small black bio‐sponge ⑩ Bio‐sponge Warning! ⑪ Clapboard Take care of the children; be sure they do not play with the product. ⑫ Bio‐sponge UV radiation is harmful for eyes and skin. Never use the UVC lamp outside the unit. ⑬ Bio‐balls Do not operate the unit if persons are in the water! Ensure that the filter will not overflow. Danger of emptying the pond. ⑭ Non‐standard nut A high‐voltage connector is in the unit. Switch off the mains voltage (Disconnect the power supply) prior to carrying out cleaning or maintenance on the unit. ...
Page 3
After switching on the UVC clarifying unit, check whether or not the UVC lamp is lit blue (b) through the control window on the upper cover (With UVC). Ensure that the drain pipes for the water return are laid towards the pond with a suitable incline Important Safety Instructions – continued. (<1m). Can also return the clean water into the pond via a water course to additionally enrich the water with oxygen. Hazards encountered by the combination of water and electricity! The combination of water and electrocution, if the unit is incorrectly connected or misused. Prior to reaching into the water, always switch off the mains voltage to all units used in the water. Please do not place the product where it may fall into the pond. Please do not operate the product during thunder storm, or it may result to electric shock. Install the unit so that it is not exposed to direct sun radiation (max. 40° C). Keep the socket and power plug dry. The unit, the connections and plugs are not water‐proof and must not be routed or installed in water. Extension cables and power distributors (e.g. outlet strips) must be suitable for outdoor use. The unit may be used exclusively as follows: ...
Page 4
housing. Loosen the screw (h). Screw off the union nut, pull off the quartz glass including the O ring by a slight rotary movement (i). Clean the quartz glass outer face with a moist cloth carefully and check for damage. When replacing the UVC lamp, remove the quartz glass. (Fig. E) Replace the UVC lamp. Only use lamps the designation and rating of which match the information on the type plate. Important Guarantee Switch the pump of first, then the UVC clarifying unit. We provide a guarantee of 2 years from the date of purchase on the Aquagarden BIOlogic Gravity Filter. Do not operate the unit without water flowing through. This guarantee does not cover parts subject to wear and tear, such as batteries, impellers, lamps, ceramic The unit switches on automatically when power connection is established. discs and O rings, or any damages that are a result of misuse, tampering (including damage and alteration After a new installation, the unit only reaches its fully biological cleaning effect after a few weeks. of the cable), negligence, damage and technical modification. We reserve the right to repair or replace The full effect on bacteria is only reached as from a water temperature of +10°C. the unit. No repairs or replacement will be undertaken for products that have not been properly maintained. The guarantee will be honoured only if the product is returned to your dealer or Aquagarden Switching on: Connect power plug to socket. (freight pre‐paid) compete with your receipt. Product will deteriorate with prolonged exposure to After switching on the UVC clarifying unit, check whether or not the UVC lamp is lit blue (Fig. A) sunlight and fading of the product is not covered by the guarantee. through the control window on the upper cover (with UVC). The refund of costs for removal or installation, onsite inspection, check and claims for lost profit caused Check all connections for leaks. by the unit or its use are exempted from the guarantee. Switching off: Disconnect the power plug. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are ...
