Hoxton Shower Mixer with Diverter Chrome /
Matt Black/ Brushed Brass
HOX.005CP/ HOX.005MB/ HOX.005BB
Hoxton Shower Mixer without Diverter Chrome /
Matt Black/ Brushed Brass
HOX.006CP/ HOX.006MB/ HOX.006BB
Important
● We recommend that this product is installed by a qualified professional contractor. Such as a plumber who is certified by NVQ
(National Vocational Qualification) or SNVQ (Scottish National Vocational Qualification) Level 3.
● Please check this product immediately to ensure that it has not been damaged and is complete. Before installation, please make
sure this product is the correct model and you have all the parts required for installation and using.
● Please read these instructions carefully and keep it for future reference
Dimension
HOX.005 CP/MB/BB
120mm
215mm
73mm
7mm
10mm
48mm
46mm
3mm
HOX.006 CP/MB/BB
120mm
215mm
1 - 3
93mm
7mm
38mm
48mm
46mm
10mm
3mm
A
Advertisement
Table of Contents
Related Manuals for Britton Hoxton HOX.005CP
Summary of Contents for Britton Hoxton HOX.005CP

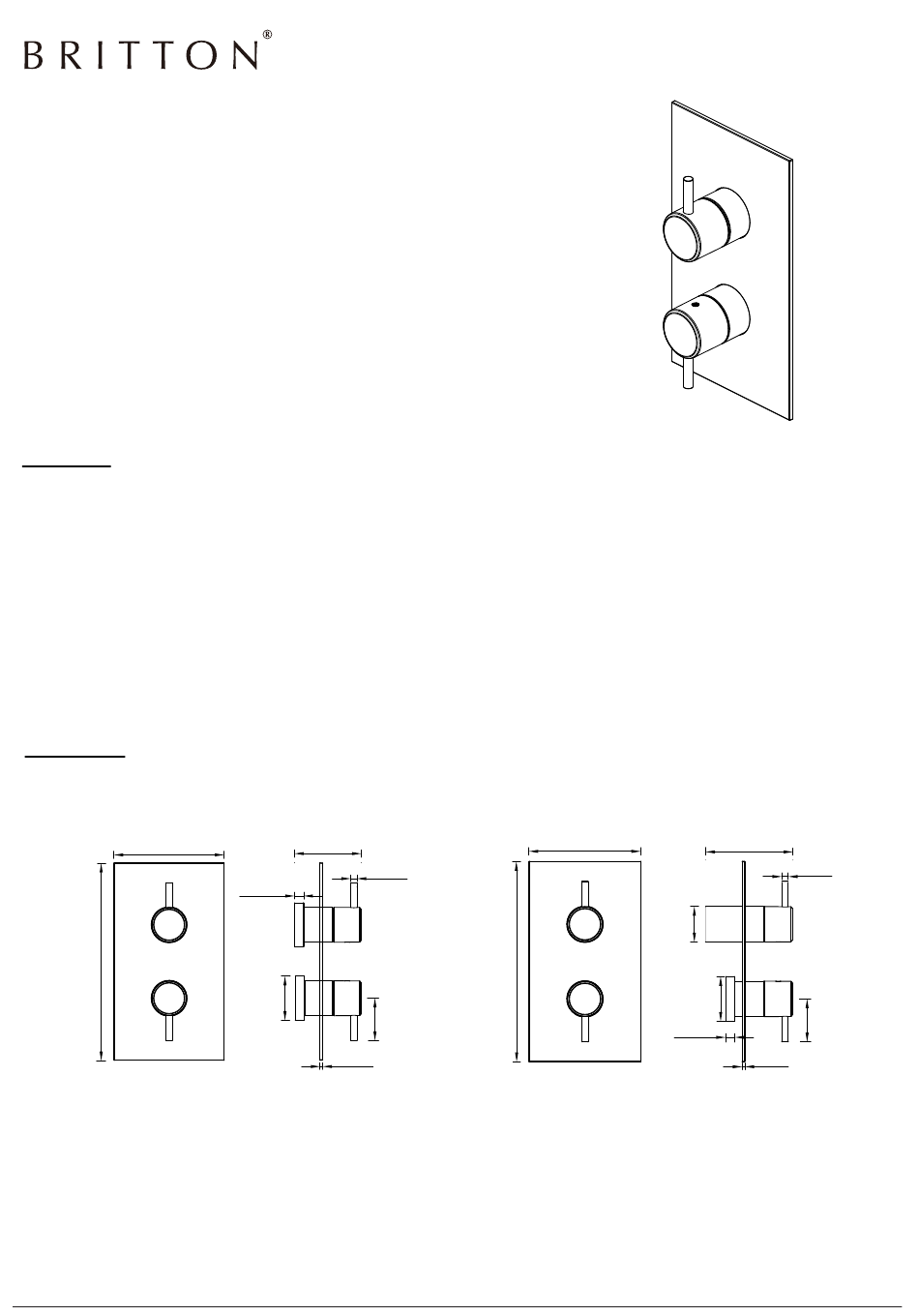

- Page 1 INSTALLATION INSTRUCTIONS Hoxton Shower Mixer with Diverter Chrome / Matt Black/ Brushed Brass HOX.005CP/ HOX.005MB/ HOX.005BB Hoxton Shower Mixer without Diverter Chrome / Matt Black/ Brushed Brass HOX.006CP/ HOX.006MB/ HOX.006BB Important ● We recommend that this product is installed by a qualified professional contractor. Such as a plumber who is certified by NVQ (National Vocational Qualification) or SNVQ (Scottish National Vocational Qualification) Level 3.
