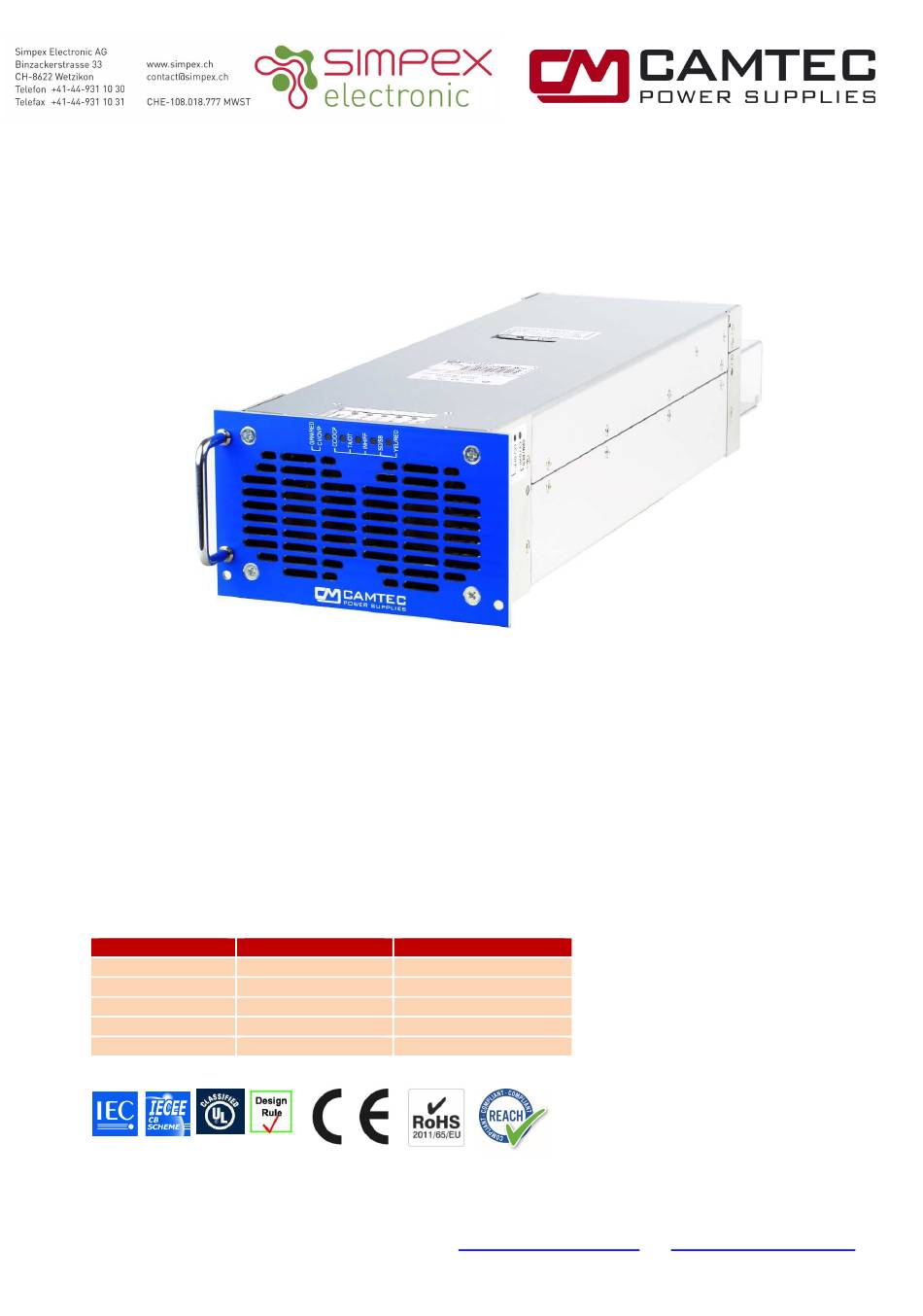

CPS-i2000
19" embedded 2U/3U or hardmount in all positions, PFC 0,99
Features:
•
3D-HD (3D Heat Dissipation)
•
Real time C/V programming
•
Real time & value C/V-monitoring
•
Reference voltage f. autonomous programming
•
CSB Current Share Bus
•
Inhibit for safe interlocking
•
Remote Shutdown
•
Sense mode
•
Power Good Relay DC-ok
Model
Voltage [V]
CPS-i2000.018
0-18Vdc
CPS-i2000.030
0-30Vdc
CPS-i2000.060
0-60Vdc
CPS-i2000.090
0-90Vdc
CPS-i2000.150
0-150Vdc
In accordance with IEC60950-1
Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany
Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77
(Technical changes and errors. This product may not readily be used in life support systems.)
2000W Lab Power Supply scalable
•
Precise dynamics on load change
•
Series & parallel operation up to >100kW
•
EMC norm classe B
•
Efficiency 92-94%
•
PFC Powerfactor 0,99
•
Variable controlled fans from Papst
•
Long lifetime under hard operation
•
Quick down programming option PSOT
•
Solid 2U and 3U subframes available
Current [I]
0-165A
0-100A
0-50A
0-33A
0-20A
www.camtec-gmbh.com
Made in Germany
S.1/20 (03/2016.01.3)
-
info@camtec-gmbh.com
Advertisement
Related Manuals for Simpex Electronic CAMTEC CPS-i2000
Summary of Contents for Simpex Electronic CAMTEC CPS-i2000
- Page 1 Made in Germany CPS-i2000 2000W Lab Power Supply scalable 19“ embedded 2U/3U or hardmount in all positions, PFC 0,99 Features: • • 3D-HD (3D Heat Dissipation) Precise dynamics on load change • • Real time C/V programming Series & parallel operation up to >100kW •...
- Page 2 Made in Germany Technical description - a unique mechanical concept The Camtec CPS-i models are high-precision lab power supplies „Made in Germany“. These power supplies are designed for scalable power systems in the testing automation. For more than 20 years the Camtec Power Supplies manufactures high-end switch mode power supplies in Germany.
- Page 3 Made in Germany Features Idling behavior Master-Slave Mode (Ureg-Out/Ireg-OUT) The CPS-i Series is permanently open-circuit proof. When an output The master-slave mode can be defined in the parallel operation. One device voltage is preset it comes stable. If a load is switched suddenly, the unit can be set as the master, the other involved network units act as a slave and stabilized within <1ms.
- Page 4 Made in Germany Technical Data Table AC Input Range 184 – 265Vac AC Input Frequency 47 – 63Hz DC Input Range 250 – 350Vdc AC Nominal Voltage 230Vac <10A DC Nominal Voltage 250Vdc <9,3A 350Vdc <6,7A DC Vout programmable 0-18Vdc 0-30Vdc 0-60Vdc 0-90Vdc...
- Page 5 Made in Germany Manual und Technical Details Analog Interface CON1 (Connector Model Weidmueller 1277320000 = included) Name Type Function Signal Remarks AC OK-1 Output Closers, Signal AC OK Relay Potential-free DC OK-1 Output Closers, Signal DC OK Relay Potential-free AC OK-2 Output Center, Signal AC OK Relay...
- Page 6 Made in Germany - Interface pluggable Push-Pull-Connectors from Weidmueller (included) - Input Power Connector Neutrik NAC3FCA (included) - Output Power Connection M8 Powerbars - Lock-Pins snap into the 2U/3U 19“ subrack CON1 0,14- Push In 1,5mm² CON2 AWG26-16 CON3 CON4 DC +/- 200A/60°C 250Vac...
- Page 7 Made in Germany LED Operating Signal CV/OVP CV Constant Voltage Mode LED lits Green OVP Overvoltage maloperation or interference voltage LED lits Red CC/OCP CC Constant Current Mode LED lits Yello OCP Over Voltage LED flashes Red, also see >>Fuse Mode<< TA/OT TA Temperature Alarm LED lits Yello, warning temperature shutdown pending OT Over Temperature Shutdown LED lits Red...
- Page 8 Made in Germany Programming V/C via Potentiometer (Uadj/Iadj) – Stand Alone Operation The power supply is equipped with 2 potentiometers Uadj and Iadj for setting voltage and current. To enable the setting on the potentiometer, configure the interface via the DIP switch for 0-5V. Connect each Uadj and Iadj of CON3 to the inputs Ureg-IN and I reg-IN.
- Page 9 Made in Germany Compensation of Load Line Drop Voltage (Sense ++/--) battery charger operation mode Remote Sensing as a battery charger If the CPS-i power supply unit is used as a battery charger, it is recommended to refrain from sensing. It can lead to severe damage to the power supply, if the polarity of the sense line is confused (field experience: such error often occurs when system service is required, e.g.
- Page 10 Made in Germany External Shutdown (SD) The power supply is set to the Shutdown mode, when the control input is either shorted via a relay contact, a switch contact or an NPN transistor with open collector (voltage drop <1V, current typ. 1,5mA). Alternatively, a voltage of 10 to 30V (typ.
- Page 11 Made in Germany Signal Inhibit (INH) Interlock INH is high, as soon as the connection between the contacts of the control input INH is interrupted. Output Open Collector C =10mA, V ≤0,6V, V =30V. Auxiliaryy Voltage +12V (AUX) The power supply offers an auxiliaryy voltage 12V/500mA. The accuracy is ±500mV. Ripple & Noise 30mVpp.
- Page 12 Made in Germany Constant Current Mode (CC) The alarm signal CC is high when the power supply operates as a constant voltage source. Output Open Collector C =10mA, V ≤0,6V, V =30V. When OVP, INH, SB, SD, FF, OCP or defective PFC occur the message signal CC is low because the power output is switched off.
- Page 13 Made in Germany C/V Chart and Operating Point The output voltage set Vout is always linear proportional to the control signal Ureg. The desired control signal is selected via the DIP switcher: 0-5V, 0-10V, 0-20mA oder 4-20mA. Model Value UA1 (V) Value IA1 (A) Value UA2 (V) Value IA2 (A)
- Page 14 Made in Germany Open Collector Circuit Interface Z3.3 Between all open collector outputs and the power input and the power output is a reinforced Insulation of max. 400Vdc. (Note: this applies to all signals from CON1 and CON2, regardless of whether they are designed as open collector, or not) Series Operation Two or more units of the same model and output voltage can be operated up to a total voltage of 600Vdc in...
- Page 15 Made in Germany Electrical Safety (Factory-Test / Fieldtest Owner) ¹) Type Test 60s 2500Vac 3000Vac 500Vdc 3000Vac Factory Test 5s 2000Vac 2000Vac 500Vdc 1000Vdc Field Test 2000Vac 2000Vac 500Vdc 1000Vdc ¹) ≥60Vdc= 1200Vdc / ≥150Vdc= 2100Vdc Type and Factorytest are the manufacturer. While repating damage can happen to the power supply unit.
- Page 16 Made in Germany Mechanics Aluminium-housing IP20. Cooling is achieved via front-to-rear fans. In order to ensure adequate heat dissipation, 50mm to the front and 150mm blockade-free distance from the device back wall must be guaranteed. The harnesses are to be designed and installed to that the air outlet of the unit is not being blocked.
-
Page 17: Available Options
Made in Germany Available Options PS Option for Quick Downward Programming (PSOPT) Quick Down Programming: The input capacitance of a power supply can be discharged only slowly at low load. A quick downward programming of the output voltage of an almost non-loaded power supply is not possible. This fact leads to undesirably long cycle times on a test bench. - Page 18 Made in Germany 19“ 48TE Subrack 2U & 3U 2U Subrack 48TE for 1-3 CPS-i2000 or CPS-i3000 with up to 6KW continuous power 3U Subrack 48TE for 1-5 CPS-i2000 or CPS-i3000 with up to 10KW continuous power Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany S.18/20 (03/2016.01.3) Tel.
- Page 19 Made in Germany Wall Mount Option & 3D Heat Dissipation (3D-HD) Our aligned and controlled heat dissipation design opens possibilities that are formerly being reserved to custom design power supplies: Steplessly hard mount of the CPS-i2000/3000 power supply modules in a 3D-room.
- Page 20 Made in Germany Term Information Camtec Article Number CPS-i2000.018 0-18Vdc 3041106001CA CPS-i2000.030 0-30Vdc 3041106002CA CPS-i2000.060 0-60Vdc 3041106003CA CPS-i2000.090 0-90Vdc 3041106004CA CPS-i2000.150 0-150Vdc 3041106005CA CPS-i2000.018PS PowerSink / Quick Downward Programming 3041106011CA CPS-i2000.030PS PowerSink / Quick Downward Programming 3041106012CA CPS-i2000.060PS PowerSink / Quick Downward Programming 3041106013CA CPS-i2000.090PS PowerSink / Quick Downward Programming...
