Nero Radio 8113 UPMi Manual

1.2 Features
possibility to program transmitters without the programming button on the receiver's housing;
convenient side location of contacts;
possibility to connect an extra one-button switch by any producer.
1.3 Technical characteristics
Working range, MHz..............................................................................................................................................434,42 ± 0,37
Switching current, max À.........................................................................................................................................................3
Number of motors for operation .............................................................................................................................................1
Memory (number of transmitters), pcs ...............................................................................................................................500
Duration of commands "UP", "DOWN", sec......................................................................................................................100
Duration of command "Comfort", sec. .................................................................................................................................7
Dimensions, mm.........................................................................................................................................................51?51?29
Working temperature......................................................................................................................................from 0 to + 45°Ñ
Working conditions .................................................................................................................................dry heated buildings
IP protection class ...............................................................................................................................................................IP20
1.4 Installation and connection of the Radio 8113 UPMi
Unpack the Radio 8113 UPMi receiver.
Follow the connection scheme on Fig.1b to install the receiver Radio 8113 UPMi..
Use double-sided skotch tape to fix the Radio 8113 UPMi receiver inside the
installation box.
Screw the one-button switch to the installation box.
à)
Fig. 1 à) Installation of the 8113 UPMi; b) connection of the Radio 8113 UPMi to the motor.
2 Programming the Radio 8113 UPMi receiver
2.1 Enter the programming mode:
Way 1: press and hold > 4 sec. the switch button or a button of the transmitter that has been previously programmed until
the motor stops (if it was working) or rolls up and down;
Way 2: activate the motor (up or down), stop it and in 3 sec. press the switch or touch the programmed transmitter button
five times (the motor will indicate that the programming mode is activated by making an up and down movement).
1
Single-channel radio receiver Radio 8113 UPMi
1 General information
1.1 Application

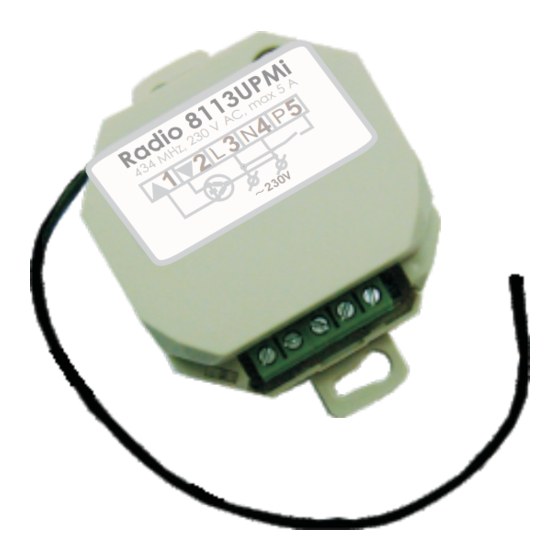

The receiver Radio 8113 UPMi is designed to control motors of roller shutters and roller
shade.
Manual
WALL
INSTALLATION
BOX
RADIO 8113 UPMi
ONE-BUTTON
SWITCH
Contacts description:
1 — connect to UP direction cable of the motor;
2 — connect to DOWN direction cable of the motor;
3 — connect to L of the ~230 V power line;
4 — connect to N of the ~230 V power line;
5 — connect to the one-button switch.
Radio 8113 UPMi
1 2 3 4 5
One-button
switch
Motor
b)
