AudioSource PSW100 User Manual

With active crossover

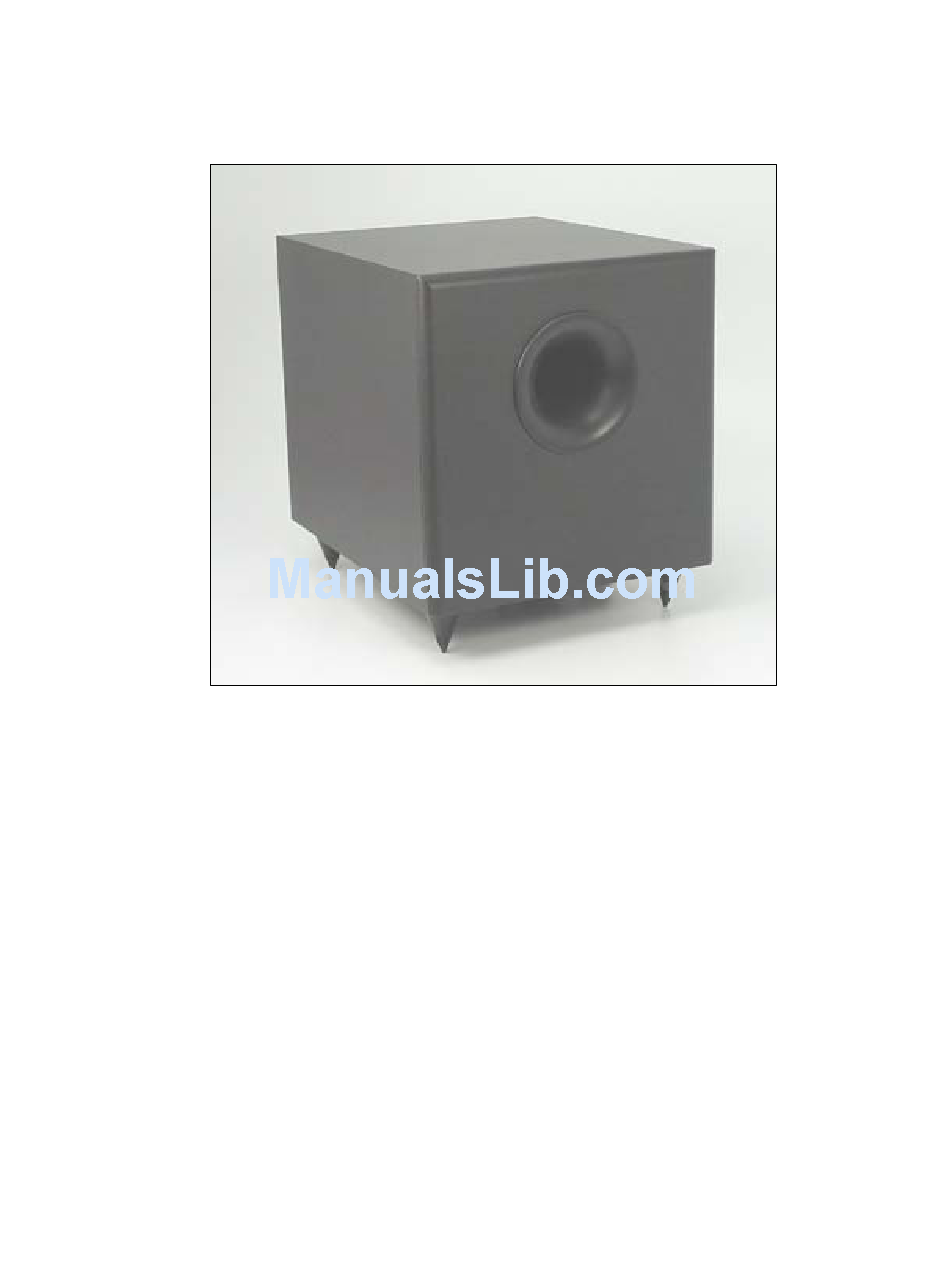

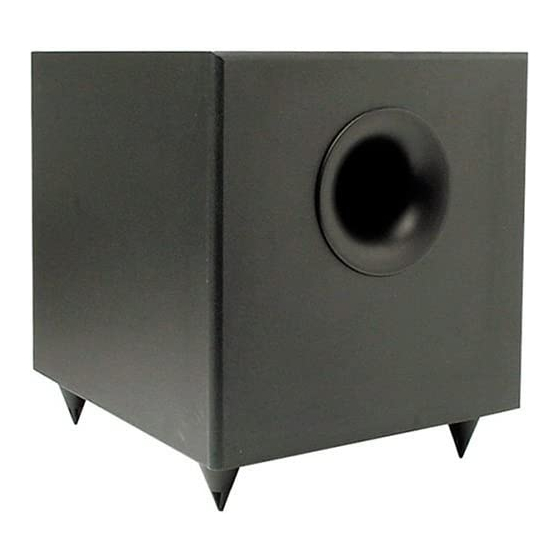

PSW100 Powered Subwoofer

With Active Crossover

User Manual

Congratulations on your purchase. We trust that you will enjoy the value and quality of your AudioSource PSW100

for many years. Please take a few moments to read this manual, and retain it for your reference.

PSW100 Overview

The AudioSource PSW100 represents the very latest in affordable state of the art in subwoofer design. The highly

efficient ported enclosure houses a rugged ten-inch, mica filled polypropylene driver, a powerful one hundred watt

amplifier and an integral crossover network. This precision matched combination ensures the PSW100 will deliver

the best sound possible, under the most demanding conditions. Both crossover frequency and input level are

variable over a wide range, allowing the PSW100 to compliment a wide variety of loudspeaker systems. Line level

and speaker level inputs and speaker level outputs are provided for fast and easy connection to virtually any system.

What You Need to Know About Subwoofers

Subwoofers are designed to extend the bass response of your system beyond the limitations of most speakers. This

subwoofer is to be used in conjunction with, not in place of, your existing speakers. The low frequency sounds

reproduced by the subwoofer will radiate equally in all directions. It is not necessary to have a pair of subwoofers, as

Table of Contents

Do you have a question about the PSW100 and is the answer not in the manual?

Page 1: User Manual
With Active Crossover User Manual Congratulations on your purchase. We trust that you will enjoy the value and quality of your AudioSource PSW100 for many years. Please take a few moments to read this manual, and retain it for your reference.
Page 2: Placement Guidelines
Using the Controls Power Switch The Power Switch allows the PSW100 to be turned off when there are no plans to use it over an extended period. Level Since your subwoofer is designed to work in conjunction with other speakers, we have provided a Level control that will allow you to balance the output of your subwoofer with the rest of your system.
Page 3 PSW100. If the line level subwoofer output is controlled through an internal crossover in the surround sound device, you should make sure that the crossover frequency of the PSW100 is set to a frequency well above the crossover frequency set by the surround sound device.
Page 4: General Features And Specifications
PSW100’s line level input. As mentioned elsewhere in this manual if the subwoofer output of the device connected to the PSW100 has its own crossover frequency, you should be sure that the crossover adjustment on the PSW100 is set to a higher frequency than the crossover frequency of the connected device.
Page 5 • Shipping Weight: 27.3 lbs. (12.38kg)
