  • Page 1 Curtarolo (Padova) Italy www.avselectronics.com MANUALE GENERALE INSTALLAZIONE SIRENE LED PLUS Dispositivo omologato secondo la norma EN50131-4 Ente cerificatore SISTEMA DI QUALITA’ CERTIFICATO UNI EN ISO 9001:2008 IST0846V2.5 - 1 -...

  • Page 2: Caratteristiche Generali

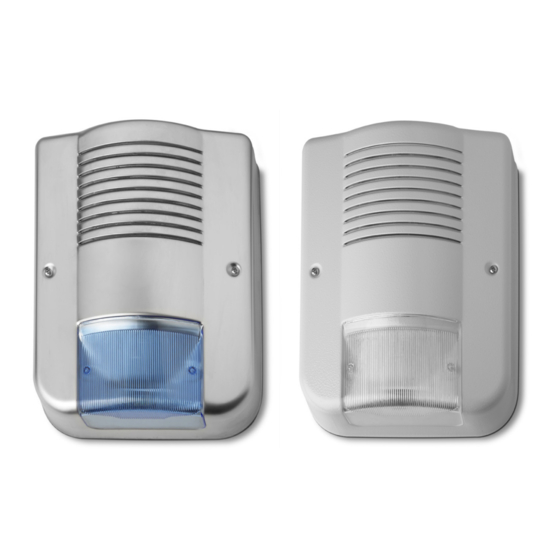

    • TS85 P LED Plus con contenitore ABS bianco • TS85 V LED Plus in contenitore di Ferro zincato verniciato colore bianco TS85 X LED Plus in contenitore Acciaio INOX AISI 304 • I modelli TS85 P/V/X LED Plus, sono provvisti all’interno di un coperchio con il fissaggio indipendente, che crea un secondo ostacolo ad eventuali manomissioni.
  • Page 3 Caratteristiche Tecniche CITY (X) LED Plus TS85 V LED Plus TS85 P LED Plus CITY CARB.LED Plus TS85 X LED Plus Tensione di alimentazione 9,6 V = / 15 V = 9,5 V (non è garantita la ricarica della batteria – non compatibile con i requisiti EN50131) Tensione di alimentazione minima 12,8 V (è...

  • Page 4: Installazione

    Installazione Apertura sirena Togliere il coperchio esterno (principale) TS85 P/V/X LED Nei modelli TS85 P/V/X LED, fissare il copri lampeggiante al Togliere il coperchio principale coperchio interno CITY PLUS LED Montaggio della sirena Utilizzare la dima o il fondo della Per il posizionamento corretto della sirena per predisporre i 3 fori sirena, utilizzare la bolla in dotazione...

  • Page 5: Uscita Dalla Programmazione

    Collegamenti Mentre per FA, B e TT i collegamenti sono fissi, per STC, +SA e AUX variano in base alla configurazione effettuata. Esempio 1. Collegamenti con parametri di default (Passi 1 = 3, 2 = 2, 9 = 1 della Tabella Funzioni): MORSETTI •...
  • Page 6 NUMERO IMPULSI LED VERDE FUNZIONI Negativo a Negativo a Positivo a Positivo a POSITIVO Sbilanciamento Negativo Negativo Positivo togliere con dare con re- togliere con dare con re- a togliere a dare a dare resistenza sistenza da resistenza sistenza da TOGLIERE da 4k7 Ohm 4k7 Ohm...
  • Page 7 NUMERO IMPULSI LED VERDE FUNZIONI 1 (MAX) 8 (MIN) Livello sonoro I Valori sono relativi sia al livello sonoro del Suono Principale che a quello del Suono Alternativo. 1 è il Massimo e 8 è il Minimo. Durata massi- 1 minuto 2 minuti 3 MINUTI 4 minuti...
  • Page 8 35010 (Padova) ITALY Tel. 049 9698 411 / Fax. 049 9698 407 avs@avselectronics.it www.avselectronics.com Assistenza Tecnica: 049 9698 444 support@avselectronics.it AVS ELECTRONICS S.p.a. si riserva il diritto di apportare modifiche in qualsiasi momento e senza preavviso. - 8 -...
  • Page 9 Curtarolo (Padova) Italy www.avselectronics.com GENERAL MANUAL INSTALLATION LED PLUS SIRENS Device complies with EN50131-4 Certified by CERTIFIED QUALITY SYSTEM UNI EN ISO 9001:2008 IST0846V2.5 - 9 -...

  • Page 10: General Features

    • TS85 P LED Plus with white ABS container • TS85 V LED Plus with white varnished Galvanized iron container • TS85 X LED Plus in AISI 304 STAINLESS Steel container The TS85 P/V/X LED Plus models internally have an independent fastening cover that creates a second obstacle to possible tampering.
  • Page 11 Technical Features CITY (X) LED Plus TS85 V LED Plus TS85 P LED Plus CITY CARB.LEDPlus TS85 X LED Plus Power supply 9.6 V = / 15 V = Minimum operating voltage 9,5V (battery charging not warrantied – not compliant with EN50131 requirements)

  • Page 12: Installation

    Installation Opening of the siren Remove the external cover (main) TS85 P/V/X LED Fasten the flash covers to the Remove the main cover of the TS85 P/V/X internal cover LED Plus models CITY PLUS LED Installing the siren Use the bottom of the siren to Use the supplied bubble for the proper prepare the 3 holes used to fasten positioning of the siren...

  • Page 13: Accessing Programming

    Connections The connections are fixed for FA, B and TT and vary for STC, +SA and AUX based on the configuration. Example 1. Connections with default parameters (Steps 1 = 3, 2 = 2, 9 = 1 of the Functions Table): CONTROL •...
  • Page 14 NUMBER OF GREEN LED IMPULSES FUNCTIONS Negative to N e g a t i v e Positive to Positive to POSITIVE Negative to Negative to Positive to remove with to give with remove with g i v e w i t h SA unbalancing remove give...
  • Page 15 NUMBER OF GREEN LED IMPULSES FUNCTIONS 1 (MAX) 8 (MIN) Sound level The values are relative to the sound level of both the Main Sound and the Alternative Sound. 1 is the Maximum and 8 is the Minimum. Maximum dura- 1 minute 2 minutes 3 MINUTES...
  • Page 16 35010 (Padova) ITALY Tel. 049 9698 411 / Fax. 049 9698 407 avs@avselectronics.it www.avselectronics.com support@avselectronics.it AVS ELECTRONICS S.p.A. reserves the right to modify the technical and esthetical characteristic of the products at any time. - 16 -...
  • Page 17 Curtarolo (Padova) Italie www.avselectronics.com MANUEL GÉNÉRAL D'INSTALLATION SIRÈNES LED PLUS Appareil conforme à la norme EN 50131-4 Grade 3 Classe IV Certifié par SYSTÈME DE QUALITÉ CERTIFIÉ UNI EN ISO 9001:2008 IST0846V2.5 - 17 -...

  • Page 18: Caractéristiques Générales

    • TS85 P LED Plus en boîtier en ABS blanc • TS85 V LED Plus en boîtier en fer galvanisé verni blanc TS85 X LED Plus en boîtier acier INOX AISI 304 • Les modèles TS85 P/V/X LED Plus, sont équipés, à l'intérieur, d'un couvercle à fixation indépendante, qui constitue un deuxième obstacle en cas de tentatives de sabotage.
  • Page 19 Caractéristiques techniques CITY (X) LED Plus TS85 V LED Plus TS85 P LED Plus CITY CARB.LED Plus TS85 X LED Plus Tension d’alimentation 9,6 V = / 15 V = 9,5 V (chargement de la batterie non garanti – ne répond pas aux critères EN50131) Voltages minimums 12,8 V (charge de la batterie correcte - répond aux critères EN50131)
  • Page 20 Installation Ouverture sirène Retirer le couvercle exté- rieur (principal) TS85 P/V/X LED Dans les modèles TS85 Retirer le cou- P/V/X LED Plus, fixer le vercle intérieur couvre clignotant au cou- vercle principal CITY PLUS LED Montage de la sirène Dans le fond de la sirène utiliser Pour le bon positionnement de la si- les 3 trous pour la fixation au rène, utiliser la bulle prévue à...
  • Page 21 Branchements Pour FA, B et TT les branchements sont fixes, alors que pour STC, +SA et AUX ils varient selon la configuration effectuée. Exemple 1. Branchements avec paramètres par défaut (Pas 1 = 3, 2 = 2, 9 = 1 du Tableau Fonctions) : B O R N E S •...
  • Page 22 NOMBRE IMPULSIONS LED VERTE FONCTIONS Disparition Apparition Disparition Apparition D I S PA R I - du Négatif du Négatif d u P o s i t i f d u P o s i t i f Disparition Apparition Apparition Activation SA TION...
  • Page 23 NOMBRE IMPULSIONS LED VERTE FONCTIONS 1 (MAX) 8 (MIN) Niveau sonore Pour le niveau sonore du Son Principal et du Son Alternatif. 1 est le Maximum et 8 est le Minimum. D u r é e m a x i - 1 minute 2 minutes 3 MINUTES...
  • Page 24 35010 (Padova) ITALY Tél. 049 9698 411 / Fax. 049 9698 407 avs@avselectronics.it www.avselectronics.com support@avselectronics.it AVS ELECTRONICS S.p.a. se réserve le droit d'apporter des modifications en tout moment et sans préavis. - 24 -...
  • Page 25 Curtarolo (Padova) Italy www.avselectronics.com MANUAL GENERAL INSTALACIÓN SIRENAS LED PLUS Dispositivo cumple con la norma EN 50131-4 Certificado por SISTEMA DE CALIDAD CERTIFICADO UNI EN ISO 9001:2008 IST0846V2.5 - 25 -...

  • Page 26: Características Generales

    • TS85 P LED Plus con caja ABS blanca • TS85 V LED Plus en caja de Hierro cincado barnizado color blanco • TS85 X LED Plus en caja Acero inoxidable AISI 304 Los modelos TS85 P/V/X LED Plus están provistos en el interior de una tapa con fijación independiente, que crea un segundo obstáculo en caso de alteraciones.
  • Page 27 Características técnicas CITY (X) LED Plus TS85 V LED Plus TS85 P LED Plus CITY CARB.LED Plus TS85 X LED Plus Tensión de alimentación 9,6 V = / 15 V = Tension minima de alimentaciòn 9,5V= (la recarga de la bateria no se garantiza a esta tension – no cumple con los requisitos...

  • Page 28: Instalación

    Instalación Apertura sirena Quite la tapa exterior (principal) TS85 P/V/X LED En los modelos TS85 P/ Quite la tapa V/X LED HP, fije el cubre- interior luz parpadeante a la tapa principal. CITY PLUS LED Montaje de la sirena Para situar la sirena de modo correcto, Utilice el fondo de la sirena para utilice la burbuja que se entrega de serie realizar los 3 orificios para la...
  • Page 29 Conexiones Para FA, B y TT las conexiones son fijas, mientras que para STC, +SA y AUX varían en base a la configuración realizada. Ejemplo 1. Conexiones con parámetros por defecto (Pasos 1 = 3, 2 = 2, 9 = 1 de la Tabla Funciones): BORNES •...
  • Page 30 NÚMERO DE IMPULSOS DEL LED VERDE FUNCIONES Señal nega- Señal nega- Señal posi- Señal positiva Señal Señal SEÑAL Señal tiva ausente tiva presen- tiva ausente Desequilibrio presente con Negativa Negativa P O S I T I VA Positiva con resis- te con re- con resis- resistencia de...
  • Page 31 NÚMERO DE IMPULSOS DEL LED VERDE FUNCIONES 1 (MÁX) 8 (MÍN) Nivel sonoro Los Valores se refieren tanto al nivel sonoro del Sonido Principal como al del Sonido Alternativo. 1 es el Máximo y 8 es el Mínimo. Duración máxi- 1 minuto 2 minutos 3 MINUTOS...
  • Page 32 35010 (Padova) ITALY Tel. 049 9698 411 / Fax. 049 9698 407 avs@avselectronics.it www.avselectronics.com support@avselectronics.it AVS ELECTRONICS S.p.a se reserva el derecho de aportar modificaciones en cualquier momento sin previo aviso. - 32 -...

This manual is also suitable for:
