Prostat PRF-914B User Manual

Miniature concentric ring fixture
Hide thumbs

Advertisement

Quick Links

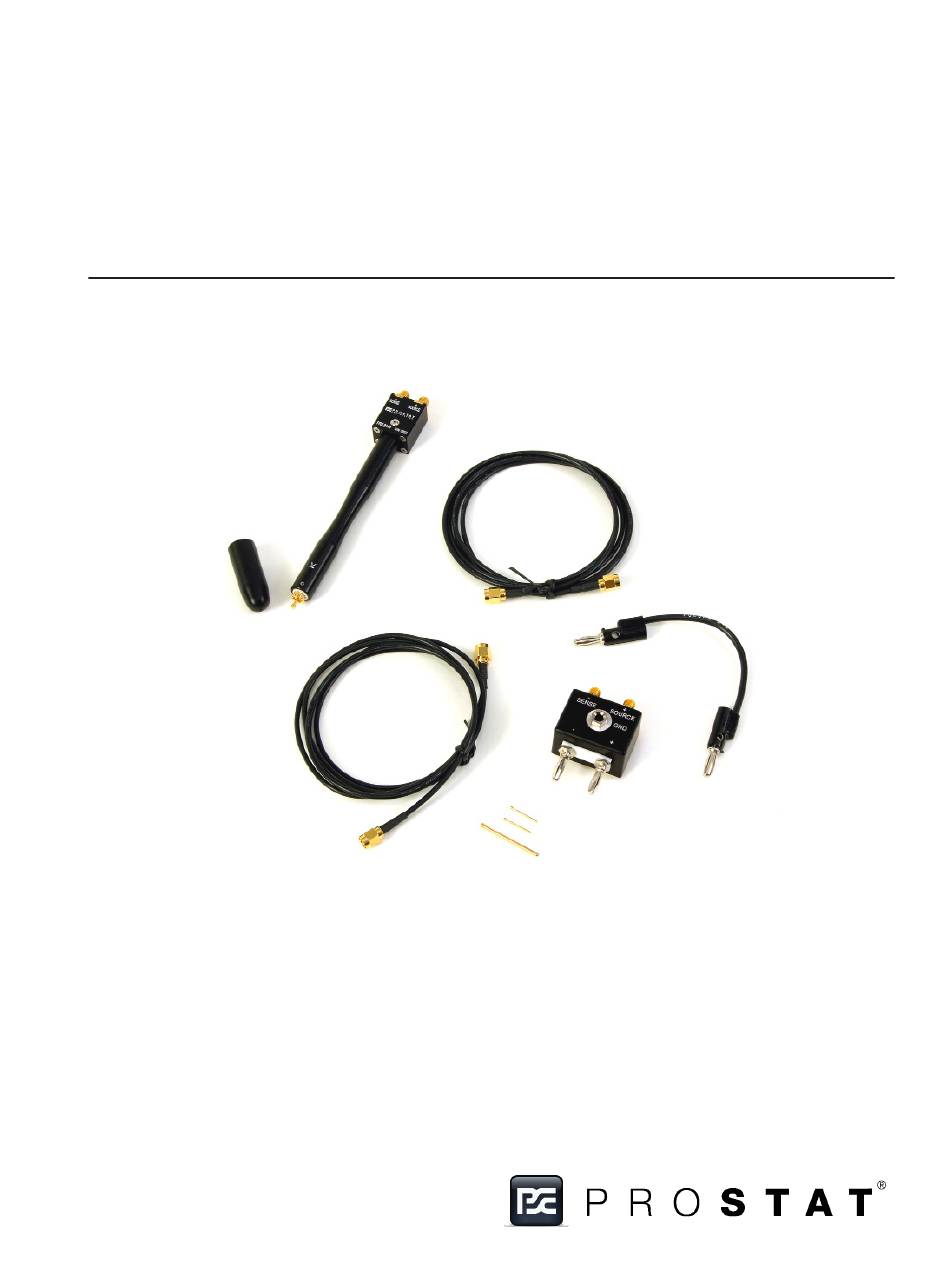

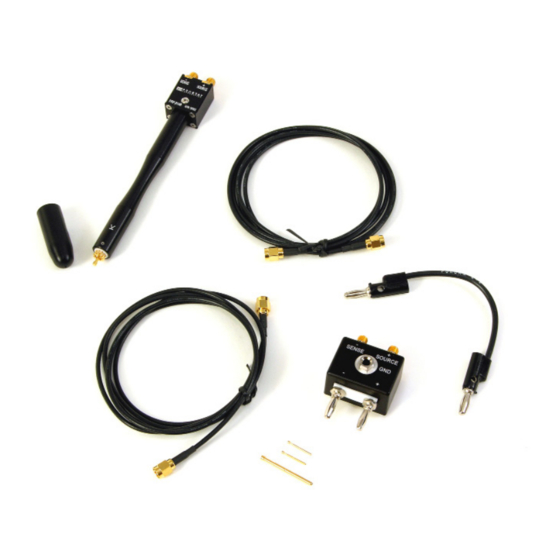

MINIATURE CONCENTRIC RING FIXTURE
PRF-914B
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the PRF-914B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Prostat PRF-914B

Summary of Contents for Prostat PRF-914B

  • Page 1 MINIATURE CONCENTRIC RING FIXTURE PRF-914B User Manual...

  • Page 3: Table Of Contents

    Warranty Information General Specifications Copyright © 2012 by Prostat® Corporation. All rights reserved. Printed in the United States of America. No part of this manual may be used or reproduced in any manner whatsoever without written permission. For information contact Prostat Corporation, 1072 Tower Lane, Bensenville, IL 60106 USA Prostat is the registered trademark of Prostat®...

  • Page 4: Introduction & Description

    PRF-914B, however, is approximately 1/10th the size of the S11.11 fixture. Based on its size the PRF-914B is often referred to as a “micro probe”. 1. The resistance measurement range of the PRF-914B fixture is 0.9 ohms at <10 volts to 1.0E+14 (1.0x10 ) ohms at 100 volts.
  • Page 5 It provides a specific reference resistance of 1.0 x 10 ohms (±1%) on the two-point side. 2. Properly used, the PRV-913B insures that all PRF-912B & PRF-914B spring loaded test probes make defined contact with the refer¬ence surface. It has the capability of providing a 1-meg- ohm (1.0x10 ohm) reference measurement with a theoretical maximum total variance of 9.5x10...

  • Page 6: Cautions & Warnings

    A. Use of Measurement Power Supply 1. The PRF-914B is a high performance micro probed designed for use with a maximum input voltage of 100 volts. As such, it is capable of delivering an annoying shock to any person touch- ing the spring-loaded contacts when they are energized.
  • Page 7 Never, under any conditions, exceed 500 volts during fixture test or repair. B. Other Operational Precautions 1. Do Not Use the PRF-914B Micro Probe if it fails to function during its continuity inspection test. 2. Do Not Use the PRF-914B Micro Probe if it becomes damaged in any way 3.

  • Page 8: Prf-914B Micro Probe & Prv-913B Verifier Operations

    PRF-914B High Resistance Miniature Concentric Ring Fixture Set 9. Do Not Drop or cause mechanical damage to these devices. III. PRF-914B Micro Probe & PRV-913B Verifier Operations A. PRF-912B Setup 1. Connect measurement cable to PRF-914B a. Carefully attach one RG-174 cable SMA connector to the fixture’s (-) Sense terminal.
  • Page 9 1. To confirm general setup and function of the PRF-914B, place the electrodes against a clean metal surface. For example, the plated metal side of the Prostat PTB-920, Dual Surface Test Bed.
  • Page 10 PRF-914B High Resistance Miniature Concentric Ring Fixture Set 2. Remove PRF-912B Probe Cover (Figure 8). 3. Position PRF-914B vertically into the PRV-913B Verifier with its spring loaded pin electrodes making direct contact with the Verifier’s gold plated test segments. 4. Depending on your resistance instrument select either 10V or 100V test voltage.

  • Page 11: Handling & Maintenance

    Figure 11: Measurement Illustrations Using the Prostat PRF-914B Fixture IV. Handling & Maintenance 1. Store the PRF-914B in a clean, dry environment with both BNC and Probe covers installed for environmental and mechanical protection. 2. Periodically, remove all spring-loaded test pins. Clean the spring-loaded test probes and Teflon mounting disk with a solution of laboratory grade isopropyl alcohol and a lint-less cloth, or laboratory quality swab.
  • Page 12 PRF-914B High Resistance Miniature Concentric Ring Fixture Set Figure 14: Insert Test Probe into its Socket Figure 13: View of PRF-912B Spring-Loaded and Press Firmly to fully seat Test Pins, Socket & Teflon Mounting Disk 3. After cleaning, perform Continuity, High Resistance and Verifier checks.

  • Page 13: Warranty Information

    Limit of Liability – in no event will PROSTAT or any seller be responsible or liable for special, incidental, or consequential losses or damages, under any legal theory including but not limited to contract, negligence, or strict liability.

  • Page 14: General Specifications

    PRF-914B High Resistance Miniature Concentric Ring Fixture Set PRF-914B & PRV-913B Miniature Concentric Ring Fixture Set Specifications PRF-914B Miniature Concentric Ring Physical Dimensions: Length: 6.3 inches (160mm) without probe cover. 6.9 inches (175mm) with probe cover. Probe diameter 0.5 inches (12.7mm). Probe cover outer diameter 0.63 inches (16mm).
  • Page 15 PRF-914B High Resistance Miniature Concentric Ring Fixture Set NOTES Rev. A / November 2005...
  • Page 16 PRF-914B High Resistance Miniature Concentric Ring Fixture Set NOTES Rev. A / November 2005...
  • Page 17 PRF-914B High Resistance Miniature Concentric Ring Fixture Set NOTES Rev. A / November 2005...
  • Page 18 PRF-914B High Resistance Miniature Concentric Ring Fixture Set NOTES Rev. A / November 2005...
  • Page 20 Specifications are subject to change without notice. All Prostat trademarks and trade names are the property of Prostat Corporation. All other trademarks and trade names are the property of their respective companies. P R O F E S S I O N A L...
