- Page 1 Integra Luxtec ® ® OPERATION AND SERVICE MANUAL MLX 300 Watt Xenon Light Source Integra® Luxtec® MLX 300 Watt For use with ACMI, Wolf, Storz and Olympus Fiber Cables...
- Page 2 Integra Luxtec ® ® MLX 300 Watt Xenon Light Source...
-
Page 3: Table Of Contents
Table of Contents Indications for Use ......................................3 Symbols ..........................................4 General Warnings ......................................... 5 Precautions ........................................... 5 Overview ..........................................6 Operation ..........................................6 Xenon Lamp Module Replacement ..................................8 Fuse Replacement ........................................9 Optional Floor Stand Assembly ..................................10 Replacement Parts and Accessories .................................. 11 Maintenance and Cleaning .................................... -
Page 4: Indications For Use
® illumination of a surgical field during a surgical and/or medical procedure. The Integra Luxtec MLX Light Source should never be used in ocular surgery or in a surgical procedure requiring direct illumination of the eye. This device is intended to be used by professional healthcare users. -
Page 5: Symbols
Symbols Found on a medical grade light source, other illumination related equipment, fiber optic cables and corresponding packaging. Consult Instructions for Use Caution Fuse Caution: High Voltage Alternating Current High Temperature Type CF Equipment Refer to Instruction Manual Type BF Equipment Equipotentiality Do Not Dispose Protective Earth... -
Page 6: General Warnings
Integra Luxtec ® ® MLX 300 Watt Xenon Light Source General Warnings The user should carefully study the Operation and Service Manual before using the equipment in a clinical environment. This Manual contains information about the proper procedures for preparing this product for its use and care. Instructions should be followed, with special attention given to warnings, controls and user specifications. -
Page 7: Overview

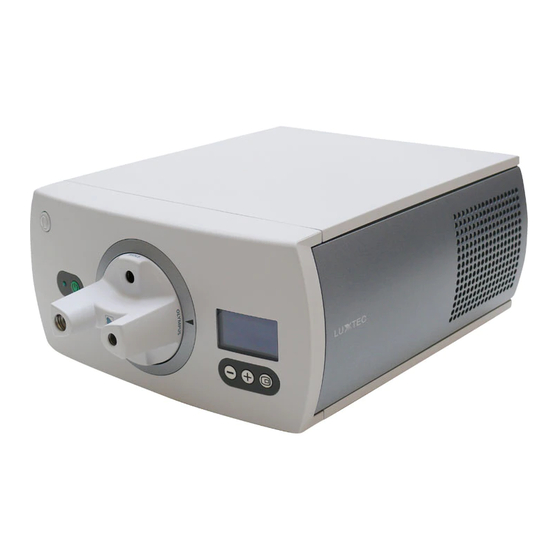

Overview The MLX light source delivers 300 watts of cool white infrared (IR) filtered light. The lamp is housed in a lamp module that can be easily serviced without special tools. Set Up And Inspection Before Use The light source comes with the hospital grade power cord packaged separately. Verify that both components are in good condition. - Page 8 Integra Luxtec ® ® MLX 300 Watt Xenon Light Source 5. The system will start up at the same light intensity as when last used. For new systems, the light intensity will start at the minimum 20% setting. 6. To adjust the light intensity, push the Membrane Switches (Figure 4): + to increase or - to decrease the light output or intensity.
-
Page 9: Xenon Lamp Module Replacement
Xenon Lamp Module Replacement Note Please adhere to appropriate safety precautions when performing lamp replacement. Only qualified personnel should service this device. Protective facemask and/or proper safety glasses should be worn when replacing the lamp module. Before changing the lamp module, turn power off and allow the light source to cool for at least fifteen (15) minutes. Please read and comply with all Precautions and General Warnings listed in this manual. -
Page 10: Fuse Replacement
(Figure 10). 3. Check to see if either fuse is blown; if blown, replace with a fuse of the same rating (Integra P/N 600987). 4. Replace the red block in the housing. -
Page 11: Optional Floor Stand Assembly
Optional Floor Stand Assembly The floor stand assembly includes the following components along with the necessary Phillips head screwdriver: 1. Base with five (5) casters (2 locking) 2. One column with light source base plate Figure 10 3. Handle 4. MLX light source base Floor stand assembly instructions: 1. -
Page 12: Replacement Parts And Accessories
MLX 300 Watt Xenon Light Source Replacement Parts And Accessories To place an order, contact your local Integra distributor or call Integra Customer Service at 1-800-431-1123 (USA & Canada only) or +1-914-789-7094 to identify your local Integra representative. Light Source... -
Page 13: Troubleshooting
Change lamp. Module Part number 001320LX 1000 hours) Fan failure Shut off system to reset. If it does not reset contact Integra for service Lamp overheat Shut off system to reset. If it does not reset contact Integra for service Attenuator motor failure Shut off system to reset. -
Page 14: Specifications
Integra Luxtec ® ® MLX 300 Watt Xenon Light Source Specifications Lamp Type Xenon Short Arc Lamp Wattage 300 Watts Lamp Life 1000 Hours Light Source Dimensions 15.4”L x 11.2”W x 5.9”H (390mm L x 285mm W x 150mm H) Weight 12.5 lbs. -
Page 15: Electromagnetic Compatibility (Emc) User Information
Electromagnetic Compatibility (EMC) User Information Warning Medical Electrical Equipment needs special precautions regarding EMC and needs to be installed and put into service according to the Electromagnetic Compatibility [EMC] information provided in the accompanying documents. Warning Portable and Mobile RF Communications Equipment can affect Medical Electrical Equipment. Warning The equipment or system should not be used adjacent to or stacked with other equipment. - Page 16 Integra Luxtec ® ® MLX 300 Watt Xenon Light Source Electromagnetic Compatibility (EMC) User Information Table 202: Guidance and Manufacturer’s Declaration—Immunity All Equipment and Systems The MLX light source is intended for use in the electromagnetic environment specified below. The customer or user of the MLX light source should assure that it is used in such an environment.
- Page 17 Electromagnetic Compatibility (EMC) User Information Table 204: Guidance and Manufacturer’s Declaration – Emissions Equipment and Systems that are NOT Life-Supporting The MLX light source is intended for use in the electromagnetic environment specified below. The customer or user of the MLX light source should assure that it is used in such an environment.
-
Page 18: Block Diagram
Integra Luxtec ® ® MLX 300 Watt Xenon Light Source Block Diagram... -
Page 19: Repair And Return
Integra warrants that the new MLX light source shall be free from defects in material and workmanship under normal use and service for a period of three (3) years from the date of shipment. Integra’s sole and exclusive liability under the warranty shall be, at Integra’s option, either to repair any component which fails during the warranty period due to any defect in... - Page 20 Integra, the Integra logo, Luxtec and UltraLite are registered trademarks of Integra LifeSciences Corporation or its subsidiaries in the United States and/or other countries. ACMI, Wolf, Storz, and Olympus are the trademarks or trade names of their respective owners.
