DETAILS
SODEX INTERNATIONAL
18 rue de l'Avenir - Bât. 224
14650 CARPIQUET
Phone: + 33 (0) 2.31.53.78.70
Email: karine.chaigneau@sodexinternational.com
DESCRIPTION
Steel structure ф90
Plastified
CONFORM
European norm
NF EN 16630
The equipement has to be regularly maintained by the owner. If one of the modules has to be repaired,
users should not be able to access to it until the repair is done. To ensure good use, routine visual ins-
pections are required, paying special attention to the following points: The cleanliness, ground clearance,
surface condition, visible foundations, sharp edges , missing parts, excessive wear of moving parts and
the structural integrity. Moreover, a more thourough functional check should be carried out every two
months on the following points:
- Check that all the screws are correctly tightened
- Remove all the non expected elements (ex: stickers, clothes, ropes,...)
- Fix paint defects if the module has been damaged, using the adapted paint, specified by the manufactu-
rer.
- Replace all damaged or missing parts with a spare part recommended by the manufacturer.
- Check that all the instruction labels stuck on the modules are in condition and are readable. Replace
them if necessary.
- Check the stability of the modules. If one of them is sligthly unfixed from the foundation,
- Check that all the anchors are secure in the ground.
- Clean all dirty parts with soapy water.
Every year, it is recommended to check carefully the ground fixation. In order to do this, remove the dirt
covering the attachment plate, and inspect cautiously the wear of the fixations and of the concrete. Re-
place them if necessary. Check that the screws are firmly tightened.
Note : If the screws untighten too easily, do not hesitate to use Loctite !
One full year parts and labor guarantee. Every claim regarding condition of the delivered equipment has to
be done within the legal period of the reception of the material. The warranty will not apply to:
-
all degradation during the transport.
-
all degradation due to use differing from which was intended.
-
all degradation due to poor maintenance.
-
any defect claimed after the end of the legal period.
-
any damaged due to a faulty installation and assembly of the module
THIS PRODUCT HAS BEEN BUILT AND DESIGNED ACCORDING TO THE FRENCH AND EUROPEAN STANDARD EN-NF 16630

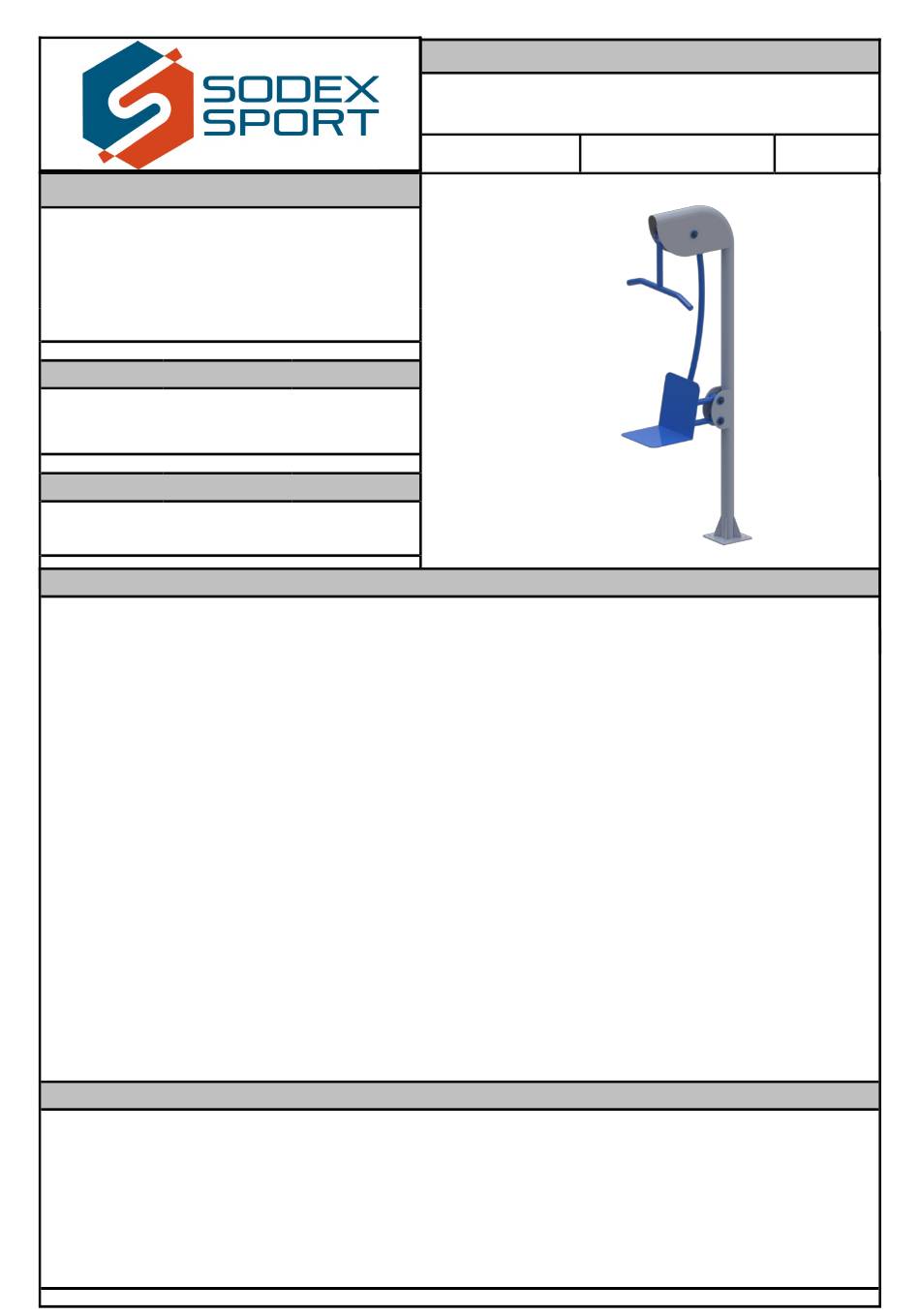

PRODUCT SHEET
PRODUCT REF
MAINTENANCE
WARRANTY

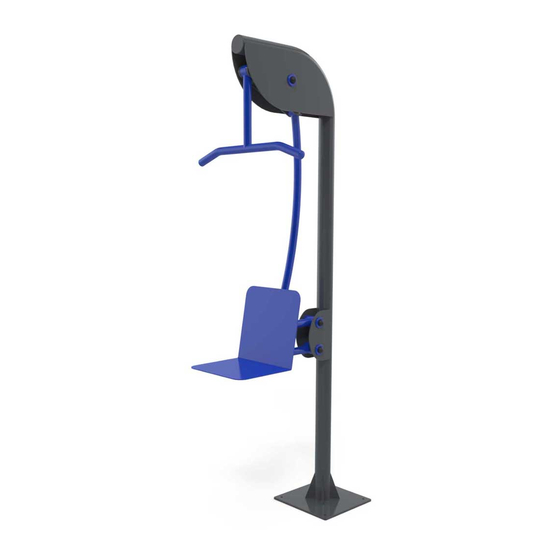

PULL CHAIR
S80109
:
UNIT
1
Advertisement
Related Manuals for Sodex Sport S80109
Summary of Contents for Sodex Sport S80109
- Page 1 PRODUCT SHEET PULL CHAIR UNIT S80109 PRODUCT REF DETAILS SODEX INTERNATIONAL 18 rue de l’Avenir - Bât. 224 14650 CARPIQUET Phone: + 33 (0) 2.31.53.78.70 Email: karine.chaigneau@sodexinternational.com DESCRIPTION Steel structure ф90 Plastified CONFORM European norm NF EN 16630 MAINTENANCE The equipement has to be regularly maintained by the owner. If one of the modules has to be repaired, users should not be able to access to it until the repair is done.
- Page 2 TECHNICAL DETAILS AND DRAWINGS Exercise space and evolution space Dimensions Height of free fall: 650 mm Evolution zone area: 17 m²...
- Page 3 USER MANUAL Precautions: - Be careful during the access and egress to the module - Only one person at a time Muscular strengthening: This module is ideal to reinforce: - shoulders, back and chest muscles - coordination - flexibility Example: Sit on the chair.
-
Page 4: Included Items
FIXATION & SEALING NECESSARY TOOLS (NOT INCLUDED) Wrench 27 Shovel INCLUDED ITEMS NB: All the dimensions are in millimeter Dig a hole for the concrete according to the drawing above. The dimensions of the holes are: - Depth : 0.75 m - Width : 0.7 m - Length : 0.7 m... -
Page 5: Necessary Items
FIXATION & SEALING - Assemble the plate attachments as follow: - Pour concrete (EN 206-1), and stop when you are at 25cm of the surface. - Insert the attachments plates into the concrete, ensuring they are settled vertically. Let the concrete set during 3 or 4 days. NECESSARY ITEMS... - Page 6 FIXATION & SEALING Remove the nuts and the washers from the at- tachment plates. Mount the equipment onto the attachment plate and fix them together thanks to the fixing kit already used. Fill the gap with dirt, then cover. NECESSARY ITEMS...
- Page 7 PACKING LIST FITNESS PULL CHAIR PRODUCT REF S80109 Index A UNIT NOMENCLATURE Package Weight Dim. Index Designation Description Quantity Packing Method N° (kg) (mm) Plastic 2520x1050x7 S80109-01 Pull chair bubbles+cardb oard 5 layers Plastic S80109-02 Accessories bubbles+cardb 450x450x100 oard 5 layers...
-
Page 8: Packing List
PACKING LIST FITNESS PULL CHAIR PRODUCT REF S80109 Index A UNIT PRE-ASSEMBLED ACCESSORIES Package Designation Description Note N° Rubber stops Cover Ø90 ACCESSORIES PUT IN PVC CLEAR BAG Package Designation Description Note N° To be put on the Fixing kit M18...
