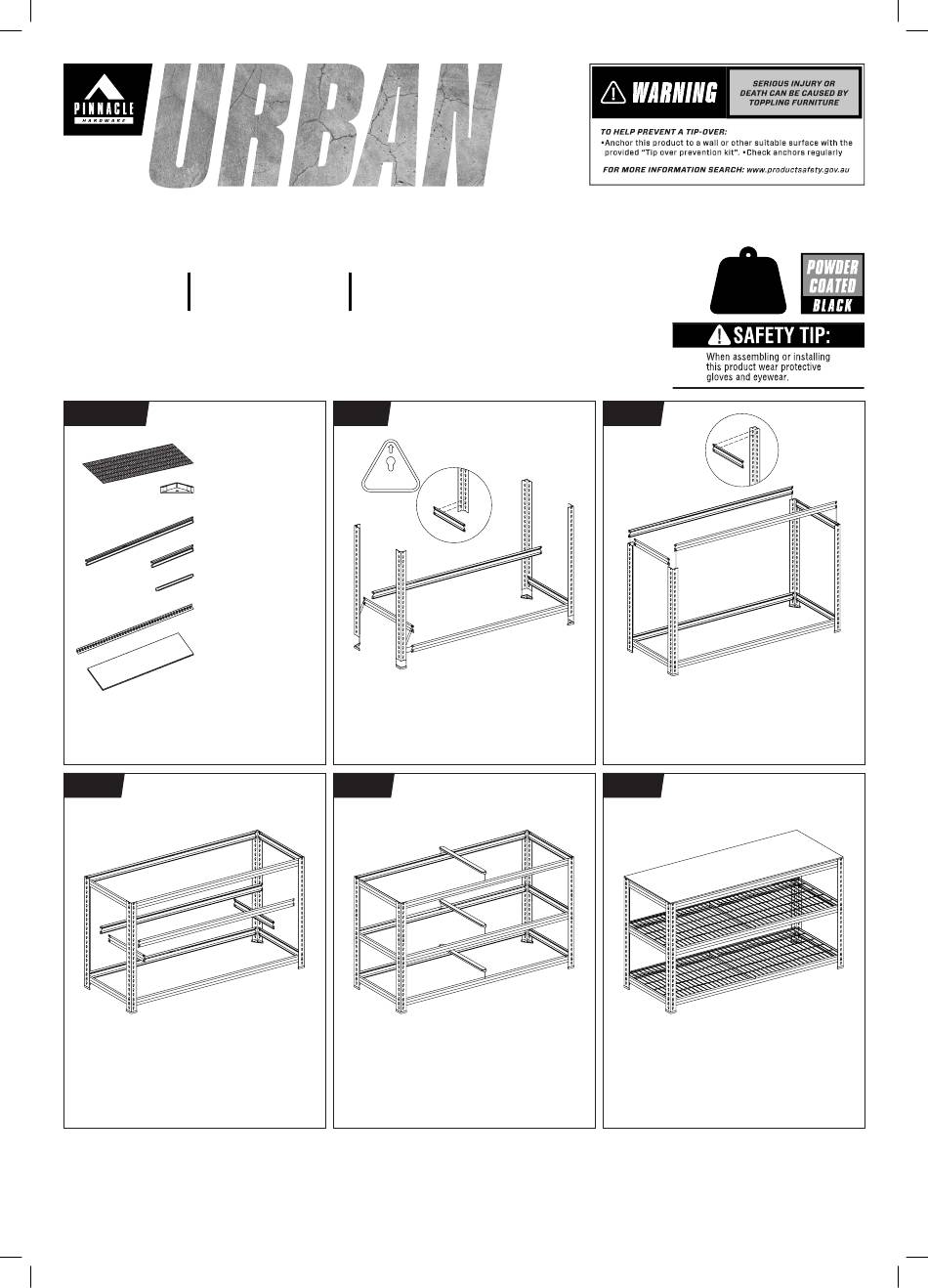

Pinnacle URBAN GOS105 Quick Start Manual

3 TIER INDUSTRIAL BENCH
HEIGHT
920 1500
mm
Very Important: Unpack the unit and confirm that you have all the parts listed. Assemble the unit on a
solid, level surface. Avoid carpet. You will need the assistance of a second person during assembly.
Safety tip: For added safety and support we recommend you fix unit to a wall.
You will need the following: Rubber mallet
Parts List:
Wire Shelves
Foot End Caps
Brackets 'A'
Brackets 'B'
Braces 'C'
Legs 'D'
Timber
Bench Top 'E'
NOT TO SCALE
PLEASE NOTE: Tip-over prevention kit included
(refer to last page for installation).
Step 3
A
B
Fix remaining Brackets 'A' and Brackets 'B' to
desired shelf height. As before, a rubber mallet
can be used to lightly tap all brackets into the
keyholes of the legs.
WARRANTY CONDITIONS: Any claim under this warranty must be made within 1 year of the date of purchase of the product. To make a claim under this warranty, take the product (with proof of purchase)
to any Bunnings store (see www.bunnings.com.au for store locations). Pinnacle Hardware bears reasonable, direct expenses of claiming under the warranty. You may submit details and proof of purchase to
our support center for consideration. The warranty covers manufacturer defects in materials, workmanship and finish under normal use. This warranty is provided in addition to other rights and remedies you
may have under law: Our goods come with guarantees that cannot be excluded under the Australian consumer law or Consumer Guarantees Act 1993 (NZ). You are entitled to a replacement or refund for a
major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure. This warranty excludes damage resulting from product misuse or product neglect, any modifications, additions or alterations to the product including the addition of extra
shelves. Additions or modifications can compromise the structure and safety of the product. The warranty covers domestic use only and does not apply to commercial applications. This warranty is given by
Pinnacle Hardware, ABN 87 614 496 196, 28 Hudson Court, Keysborough Vic 3173, 1800 349 776, Email: support@pinnacle.net.au. New Zealand customers please contact HARCO (Harkness & Young Ltd),
Email: sales@harknessyoung.co.nz. 'Pinnacle' is a trademark. © Pinnacle Hardware. Suitable for model number GOS105.
WIDTH DEPTH
540
mm
Step 1
x 2
Note: Keyhole
Upright Position
x 4
D
x 6
x 6
x 3
x 4
B
x 1
Add Foot End Caps to bottom of Legs 'D'. Fix
Brackets 'A' to the bottom of Legs 'C' as shown
followed by Brackets 'B'. A rubber mallet can be
used to lightly tap all brackets into the keyholes of
the legs. Allow one keyhole free between the foot
end cap and the shelving bracket.
Step 4
A
A
B
Slot Braces 'C' into position through the holes
provided on Brackets 'A'.
mm
D
B
A
B
A
C
A
200
kg
PER SHELF / BENCH
Step 2
D
B
A
A
D
B
Fix Brackets 'A' to the top of Legs 'D' as shown
followed by Brackets 'B'. A rubber mallet can be
used to lightly tap all brackets into the keyholes
of the legs.
Step 5
Lay Wire Shelves and Timber Top Bench 'E'
between the brackets as shown to complete your
bench.
PLEASE NOTE: Refer to next page for attaching
the provided Tip-over prevention kit.
B
