Summary of Contents for Mi True Wireless Earbuds Basic 2
- Page 1 Mi True Wireless Earbuds Basic 2 User Manual...
-
Page 2: Product Overview

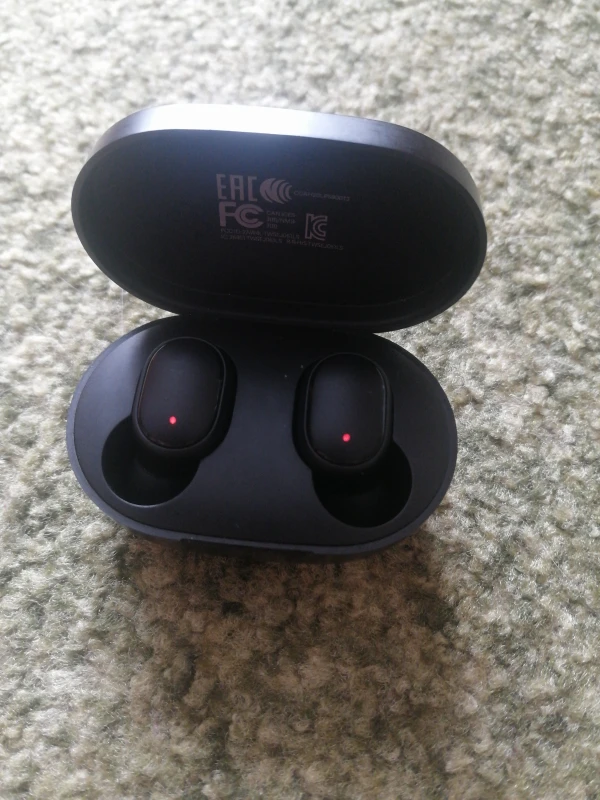

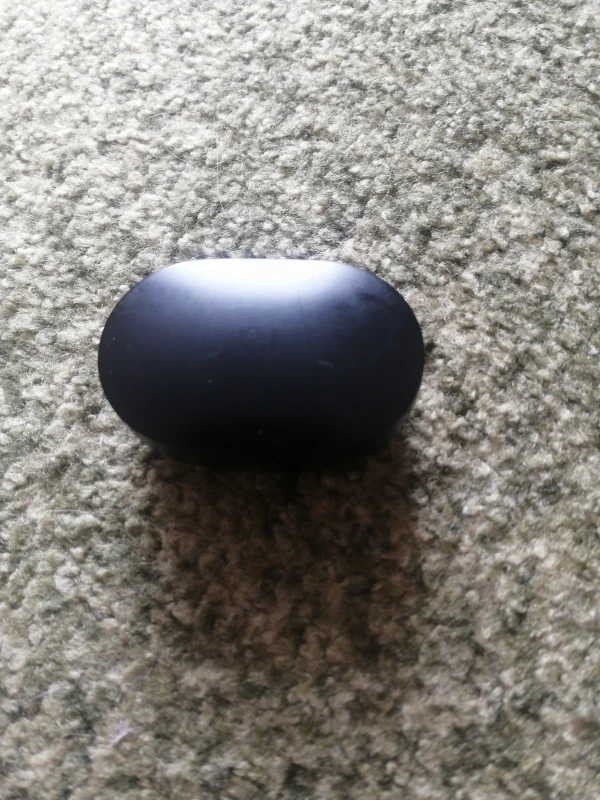

Read this manual carefully before use, and retain it for future reference. Product Overview Charging Case Micro USB Charging Port Charging Pins Charging Indicator... - Page 3 Earbuds Indicator Microphone Charging Contact Points The earbuds come with the size M of ear tips installed, you can switch to size S or L if the installed size does not suit your ear.
- Page 4 Wearing Gently insert the earbud into the ear canal, make sure it is not easy to sway when shaking your head. expose the microphone during calls.
- Page 5 Charging Before using the device, please tear off the protective film from the earbuds' contact points to fully charge them and their charging case. Protective Film Connect the charging cable to charge the earbuds and the charging case simultaneously. The indicator is red while charging, and changes 1 minute.
-
Page 6: Turning Off
Turning On Once you remove the earbud from the charging case, it automatically turns on. In case the earbuds are not in the charging case and turned off, press and hold the multi-function Press and hold for 1 second Indicator is white for 1 second Turning Off Once you place the earbud into the charging... - Page 7 When white, please enable the Bluetooth function on your device and search for "Mi True Wireless EBs Basic 2" to connect. 2. Once your device and earbuds are successfully...
- Page 8 Reset Earbuds If the earbuds cannot connect properly, please carry out the following steps to reset: Remove the earbuds from the charging case, and make sure they are turned o . Press and hold the multi- seconds until the indicator alternately blinks red and place the earbuds back in the charging case.
-
Page 9: Function Overview
Function Overview The following functions can be used on both earbuds: Answer/End calls end calls. Press Reject a call a call. Press and hold for 1 second... - Page 10 Play/Pause Music the music while using the earbuds. Press Turn On Voice Assistant the voice assistant while using the earbuds. Note: The function of voice assistant and quick wake-up must be supported and enabled on your device. Double press...
- Page 11 Answer a Second Call/Switch between Calls second incoming call during an ongoing call. between the two calls. Switch between Earbuds and Device During a call, press and hold the multi-function earbuds and your phone. Mute/Unmute unmute the earbuds during an ongoing call.
- Page 12 Precautions Warning 1. Do not disassemble, repair or modify the product for any reason, as this may cause fire or even completely destroy the product. 2. Do not expose the product to environments where the temperature is too low or too high (below 0°C or above 45°C).
- Page 13 Note 1. If the product has not been used for more than 2 weeks, it is recommended to charge the product before use. 2. Only use certified chargers supplied by qualified manufacturers. 3. Continuous use of the earbuds for a long time is detrimental to one's hearing.
-
Page 14: Specifications
Specifications Name: Mi True Wireless Earbuds Basic 2 Model: TWSEJ061LS Bluetooth Operating Frequency: 2402-2480 MHz (For EU) Max RF Output Power: < 20 mW Earbuds Dimensions: 26.65 × 16.4 × 21.6 mm Net Weight: Approx. 4.1 g (per earbud) Wireless Range: 10 m (in an obstacle-free environment) Charging Time: Approx. -
Page 15: Eu Declaration Of Conformity
EU DECLARATION OF CONFORMITY Hereby, Qianxing Inc., declares that the radio equipment type TWSEJ061LS is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: declaration.html CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. - Page 16 WEEE Information All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local...
- Page 17 flammable liquid or gas; and a that may result in an explosion or the leakage of flammable liquid or gas. For further information, please go to www.mi.com Manufactured for: Xiaomi Communications Co., Ltd. Manufactured by: Chongqing Qianxing Technology Co., Ltd.
