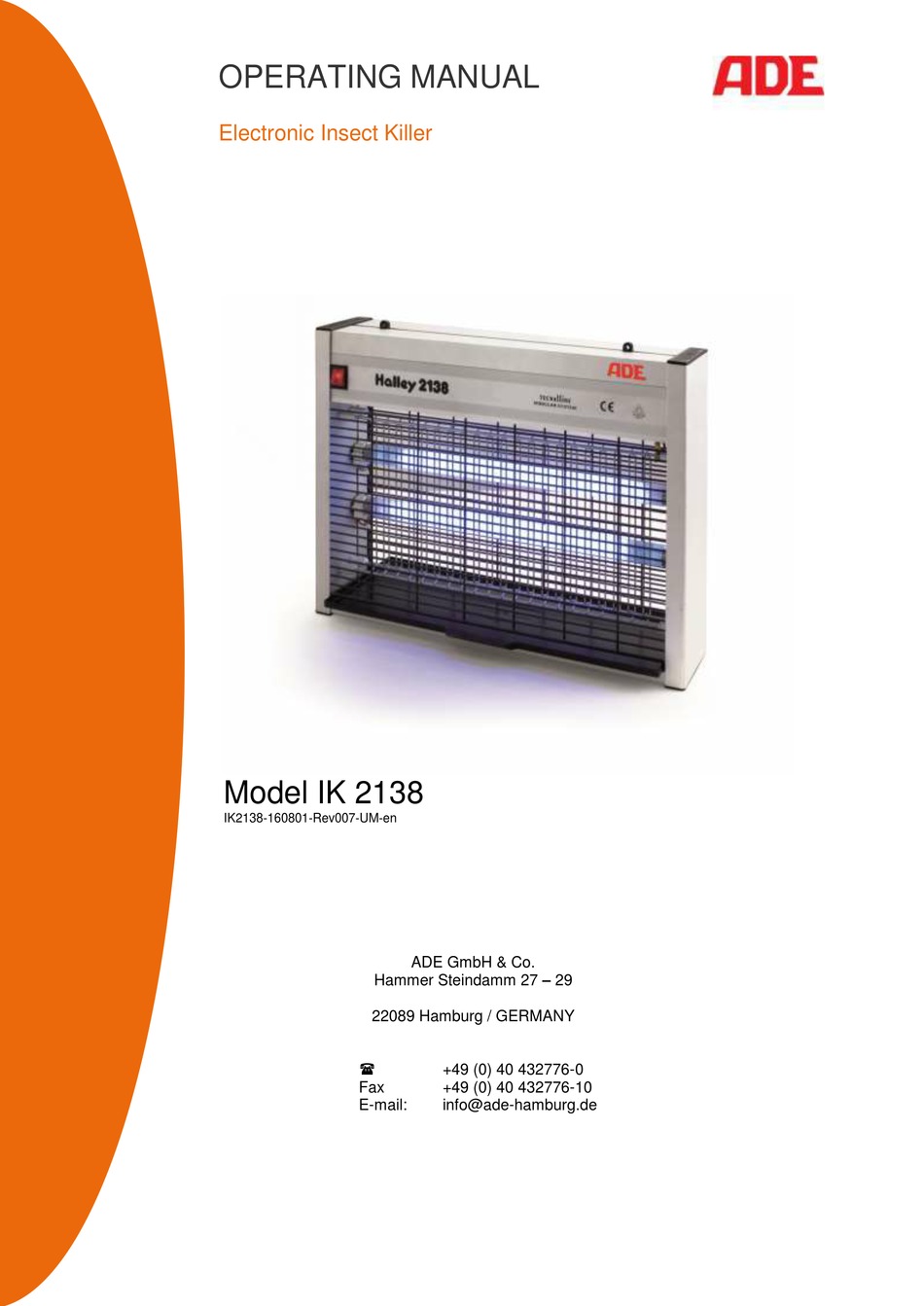

- Page 1 OPERATING MANUAL Electronic Insect Killer Model IK 2138 IK2138-160801-Rev007-UM-en ADE GmbH & Co. Hammer Steindamm 27 – 29 22089 Hamburg / GERMANY +49 (0) 40 432776-0 +49 (0) 40 432776-10 E-mail: info@ade-hamburg.de...
- Page 2 Content Content ................................1 Installation and Operation of Electronic Insect Killer ................... 2 Check content of the packing ...................... 2 Installation ............................. 2 Operation ............................2 General safety guidelines ......................3 Quality check ..........................3 Cleaning and Maintenance ..........................3 Cleaning ............................
- Page 3 Installation and Operation of Electronic Insect Killer Your ADE Electronic Insect Killer IK2138 is a quality product which works reliable and hygienic. It impresses with its easy handling. These instructions are intended for the USER. Read the warnings they contain carefully since they provide important guidance for safe installation, use and maintenance.
- Page 4 Never immerse the device in water and never clean it by spraying it with water. Quality check ADE products correspond to the applicable EC Directives and European standards to manufacture and distribute world-wide devices as per the latest technical standard offering a long lifetime and continuous reliability.
- Page 5 Disconnect all cables before transport to avoid unnecessary damages. Warranty – Liability ADE will repair or replace this product within a period of 1 years from date of delivery applying to defects occurred due to poor material or workmanship (presentation of invoice is necessary).
- Page 6 Exploded view Spare parts list Spare Parts Art-No. Switch H2632-009 Starter H2632-006 Lamp-holder H2632-003 Lamp, 15W H2632-001 Collection Tray H2632-002 Chain H2632-008 IK2138-160801-Rev007-UM-en...
- Page 7 Circuit diagram Technical Data Lamps: 2 x 15 W Dimensions: 510 x 385 x 120 mm Dead Weight: approx. 7,4 kg Type of current: 230 V Effective space: approx. 150 m² Easy care light-alloy housing Effective high-voltage grid For positioning or suspending Removable collecting tray Automatic switch-off when grid is open IK2138-160801-Rev007-UM-en...
- Page 8 RoHS Directive 2011/65/EC in the currently valid versions. This declaration loses its validity if modifications are made to the scale without our approval. Hamburg, August 2016 ADE GmbH & Co. Hammer Steindamm 27 – 29 D-22089 Hamburg Manufacturer: ADE GmbH & Co.
