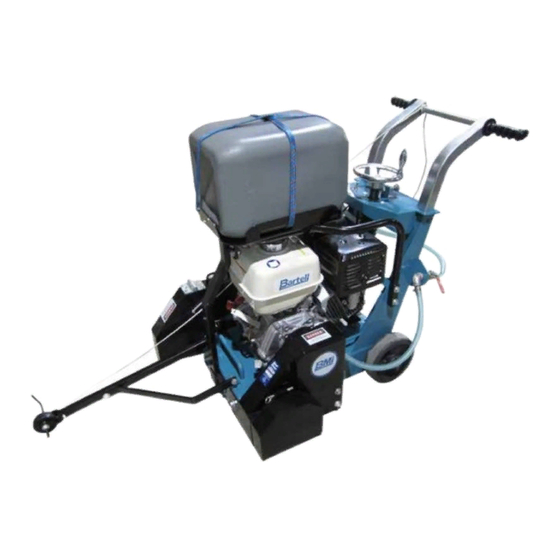

- Page 1 STREET SAW BSS1813 BSS1813W Doc. # OI-B09041 Orig. Rel. - 05-2013 Curr. Rev. - 03 Rev. Date - 12-2013...
- Page 2 WALK-BEHIND POWER TROWEL WARRANTY • All products sold by Bartell Morrison Inc. and Bartell Morrison (USA) LLC (the “Company”) are warranted against defects in materials and/or worksmanship; excluding the normal wear on wearing components covered by a separate original manufacturing warranty, for a period of 12 months for machine except 36 months for gearbox from the date of sale to the original end user purchaser that certain conditions have been met.
-
Page 3: Safety Warnings
STREET SAW INSTRUCTION MANUAL SAFETY WARNINGS PERSONAL SAFETY Warning：Read and understand instructions before operating saw！ hearing eye head • Always wear safety approved respiratory protection. • Sturdy boots with nonslip soles providing proper footing. steel-toed safety boots are recommended. Under certain conditions sparks may fly... -
Page 4: General Saw Safety
STREET SAW INSTRUCTION MANUAL GENERAL SAW SAFETY • Saw must not be left unattended while the engine is running • Always remember to keep both hands on handles when the engine running. • operate machine if there is a fuel leak. -
Page 5: General Instructions
STREET SAW INSTRUCTION MANUAL GENERAL INSTRUCTIONS 1. Be certain you have the correct diamond or abrasive blade. Contact your authorized servicing dealer for the correct specification. Getting the correct blade will make a tremendous difference in your blade costs and performance. 2. -
Page 6: To Start Sawing
STREET SAW INSTRUCTION MANUAL TO STARTSAW Fill the fuel tank and check the engine oil level.Refer to the engine manual details 2. Start engine. Follow procedure in engine manual Let engine warm up half throttle. 4. AII sawing done at full throttle. Governor factory for correct engine speed. -
Page 7: Maintenance Instructions
STREET SAW INSTRUCTION MANUAL FINISH OF CUT To Maneuver Saw". 1. Bring the blade out of the by method explained under " Raise blade high enough to clear the pavement when maneuvering the saw. 2. Turn off water valve. Close engine throttle to idle position. - Page 8 STREET SAW INSTRUCTION MANUAL Tighten fasteners regularly. Nuts and bolts may become loose particularly after first few hours of operation. On some models care must be taken select the proper tools and fasteners (Metric or English). Most are Metric however a few items English or...
- Page 9 STREET SAW INSTRUCTION MANUAL 1813 STREET SAW ASSEMBLY DRAWINGS AND PARTS LIST 375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA L5T 3A7, 905-364-4200 FAX 905-364-4201...
- Page 10 STREET SAW INSTRUCTION MANUAL 375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA L5T 3A7, 905-364-4200 FAX 905-364-4201...
- Page 11 STREET SAW INSTRUCTION MANUAL Ref. No. Parts No. Description CC12-002 basemnet GB/T7180-1995 bearing SKFFL207 GB/T7810-1995 bearing UFCL204 CC12-038 washer of bearing CC12-015 wheel welding assy. CC12-031 smallwheel GB/T276-1994 bearing 6303-2RS CC12-027 small retainer CC12-030 bog wheel CC12-025 bushing of wheel shaft CC12-024 big retainer CC12-026...
- Page 12 STREET SAW INSTRUCTION MANUAL Ref. No. Parts No. Description CC12-009 slider CC12-011 spring CC12-033 pulley CC12-033A pulley (PJ type) CC12-005 engine pulley CC12-005A engine pulley (PJ type) CC12-043 rear blade cover CC12-042 front blade cover CC12-050 rubber protect CC12-049 press plate CC12-047 water pipe CC12-048...
- Page 13 STREET SAW INSTRUCTION MANUAL Ref. No. Parts No. Description GB/T77-2000 M18X10 screw GB/T276-1994 bearing 6204-2RS GB/T95-1985 M4 plate washer GB/T70.1-2000 M4X12 screw GB/T77-2000 M6X10 screw GB1096-79 5X35 keyway GB/T894.1-1986 M10 shaft lock GB/T91-2000 pin 2.2X32 GB/T41-1998 M12X45 bolt GB/T95-1985 plate washer GB/T889.1-2000 M12 nut GB/T1096-79-5...
- Page 14 BARTELL MORRISON BARTELL MORRISON INC. BARTELL MORRISON (USA) LLC. 25 200 Commerce Dr. 375 Annagem Blvd. 12 Industrial Drive. Freehold, New Jersey, USA Mississauga, Ontario, Canada Keyport, New Jersey, USA 07728 L5T3A7 07735 Toll Free: 888-999-1570 Toll Free: 866-501-1683 Toll Free: 888-999-1570...
