AUthorised dealer:
Keypads models 5715, 5750,5750-K are compatible with 4200 (solenoid) and 4200M (motor), 3800/3801/3802/3803 Firmware, 4300
(solenoid) and 4300M (motor), 3800/3801/3802/3803 Firmware, 6040 (solenoid) and 6040M (motor) High Security electronic locks.
LA GARD 5750
Electronic Entry Device
OPENING THE LOCK
1. Enter valid combination (factory set to 1-2-3-4-5-6).
2. The lock will indicate a valid combination entry with a double signal.
3. Within four (4) seconds, turn the keypad to the open position (clock-wise) if using a
dead bolt style lock, or turn the handle to the open position if using a swing bolt style
lock.
4. Pull door open.
• Invalid Combination Entry
IMPORTANT
NOTE: Change the combination before putting the lock into operation.
WRONG TRY PENALTY
• Entry of four (4) consecutive invalid combination starts a five (5) minute delay period.
- LED flashes red at ten (10) second intervals.
• At the end of the delay period, two more consecutive invalid combination will restart
the five (5) minute delay period.
NOTE: Entry will not respond to keystrokes during delay period.
CHANGING YOUR COMBINATION
CAUTION! Always perform this operation with the door open
1. Enter "zero" six times.
2. Enter your existing six (6) digit combination one time.
3. Enter your NEW six (6) digit combination two times.
(P/N) 7031.0316 Rev A
02/17 • © copyright 2017

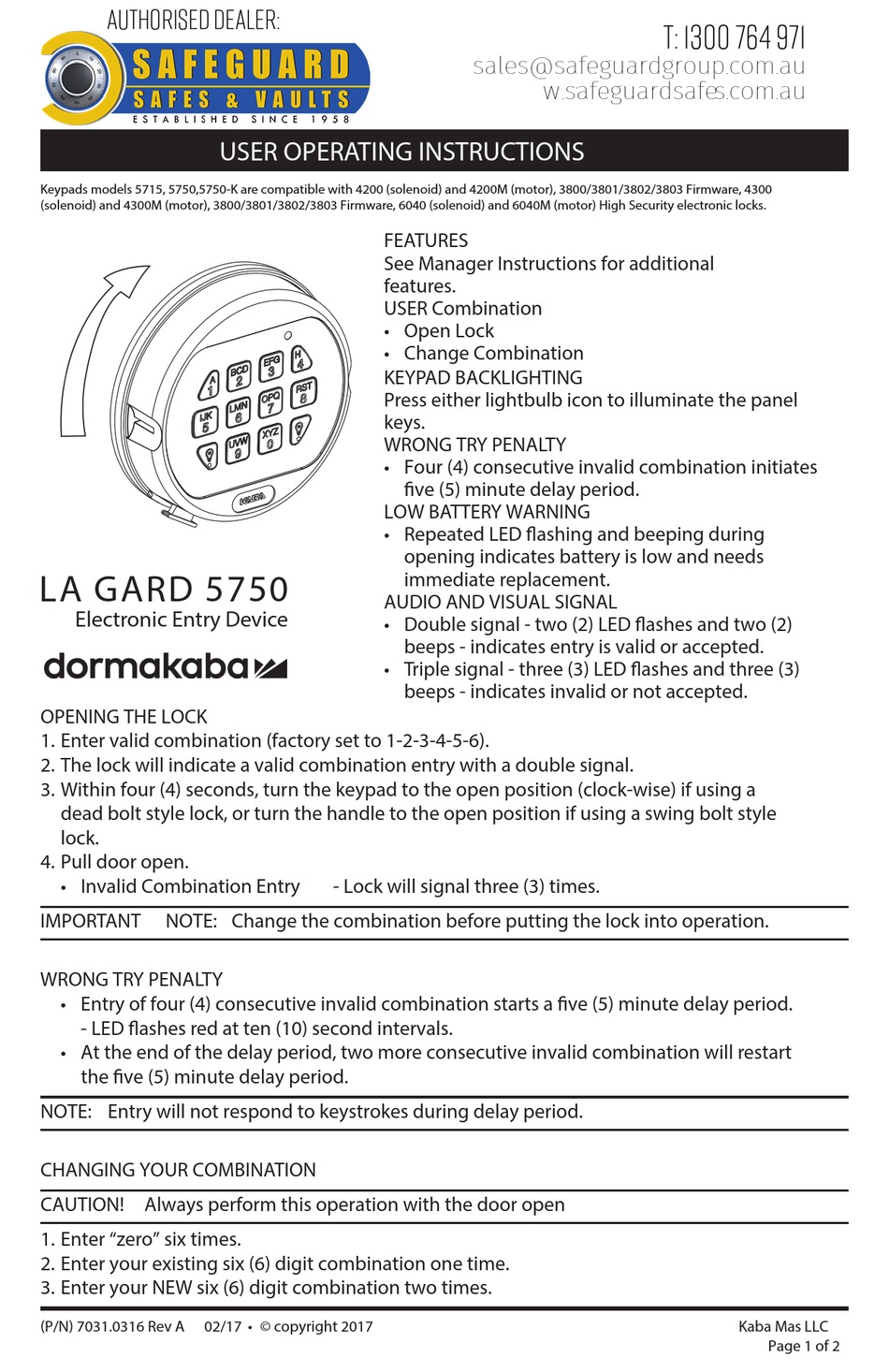

USER OPERATING INSTRUCTIONS
FEATURES
See Manager Instructions for additional
features.
USER Combination
• Open Lock
• Change Combination
KEYPAD BACKLIGHTING
Press either lightbulb icon to illuminate the panel
keys.
WRONG TRY PENALTY
• Four (4) consecutive invalid combination initiates
LOW BATTERY WARNING
• Repeated LED flashing and beeping during
AUDIO AND VISUAL SIGNAL
• Double signal - two (2) LED flashes and two (2)
• Triple signal - three (3) LED flashes and three (3)
- Lock will signal three (3) times.
sales@safeguardgroup.com.au
w . .safeguardsafes.com.au
five (5) minute delay period.
opening indicates battery is low and needs
immediate replacement.
beeps - indicates entry is valid or accepted.
beeps - indicates invalid or not accepted.
T: 1300 764 971
Kaba Mas LLC
Page 1 of 2
Kaba Mas LLC
Page 1 of 2
