Thank you for choosing to grow with Blueprint
Controllers! Your satisfaction and success are
important to us. For best results, carefully read
the following instructions before using your
Blueprint Digital Cycle Timer.

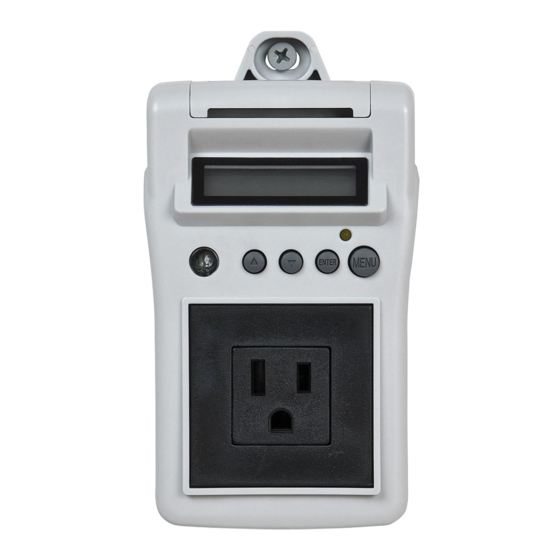

Features of your Blueprint Digital Cycle Timer
120V, BDCT-1
• Precisely controls a 120V device on an adjustable on/off cycle
• Integrated photocell allows day, night or 24-hour operation
• Digital clock with lithium battery backup
• Wall mountable
• 3-year warranty
Specifications
Input Voltage: 120V
Maximum Amperage: 14.5A @ 120V
Timer Settings: Day ON/OFF, Night ON/OFF
On/Off Setting Range: 1 second to 168 hours
Dimensions: 3" x 6" x 3.5"
Installation
1. Connect the unit to a 120V power source.
2. If desired, mount the unit to the wall or alternate support using
the mounting tab.
3. Program desired settings.
4. Connect the device to be controlled.
Caution
Ensure the device being connected
to the Controller has the proper voltage and
will not exceed the maximum amperage
rating of the unit.
Warning
Do not expose the unit to water.
Factory Settings
• Day On Time: 1 Minute
• Day Off Time: 1 Hour
• Night On Time: 10 Seconds
• Night Off Time: 2 Hours
• Select Timer Mode: Day
• Photocell Function: Active
• Power Loss Mode: Continue
Restoring Factory Settings
Factory settings can be reinstated at any time by pressing and
holding the MENU and UP arrow buttons for 3 seconds, then
pressing ENTER.

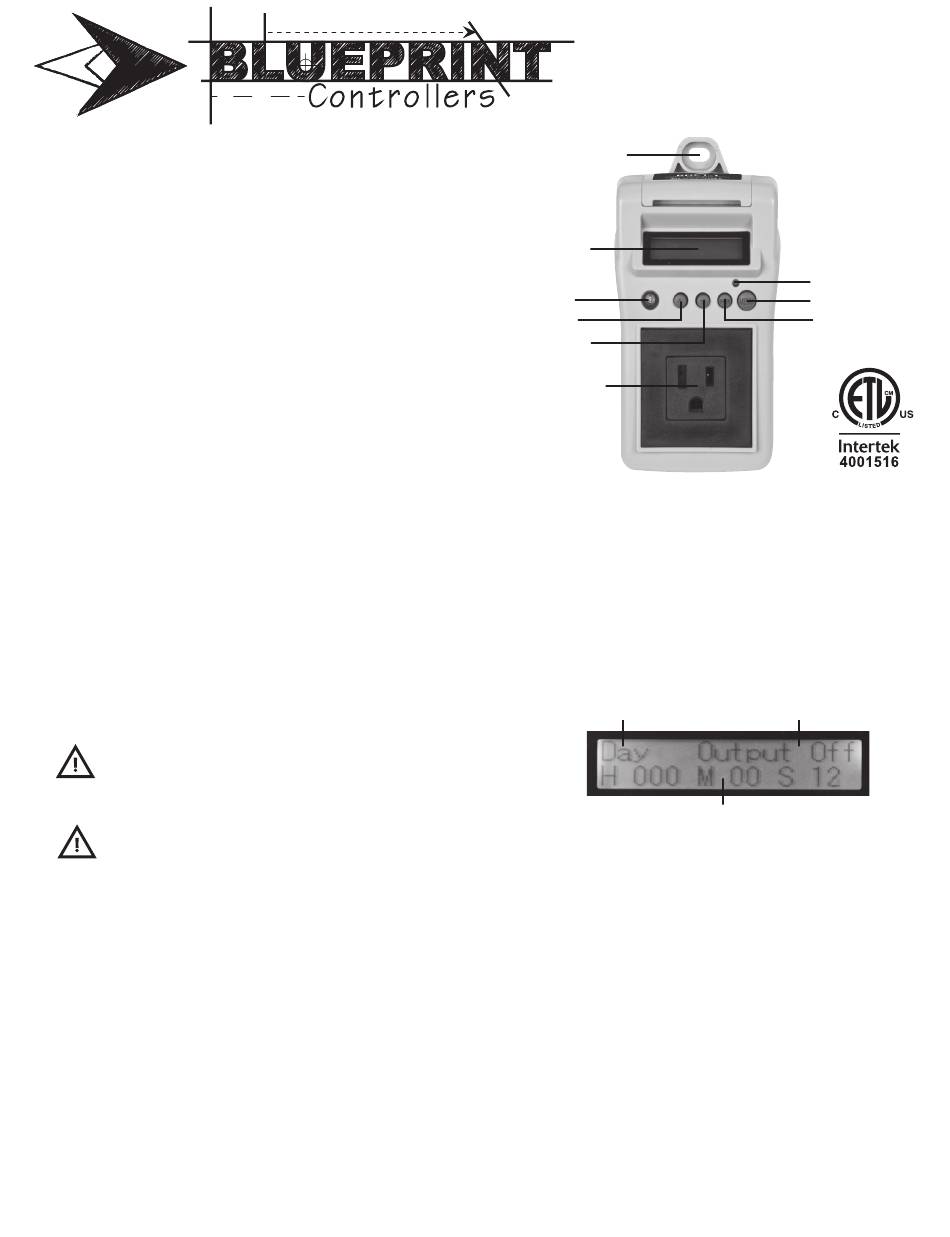

Wall Mount Access
LCD Screen
Photocell
Up Button
Down Button
Equipment Power
Connection
LCD Screen
If the timer is active, the timer will be counting down the
remaining time.
Photocell Status
Selecting Timer Settings
Day On Time: To set the amount of time the output will be
cycled on when the photocell detects light, press the MENU but-
ton to display the first menu item. Use the UP and DOWN arrow
buttons to scroll through and find "Set Day On Time" on the LCD
screen. To change the settings, press the ENTER button. The
current hour setting will be highlighted to indicate the setting can
be changed. Enter the hour setting using the UP and DOWN ar-
row buttons and press the ENTER button to move to the minute
setting. Enter the minute setting using the UP and DOWN arrow
buttons and press the ENTER button to move to the seconds
setting. Enter the seconds setting using the UP and DOWN
arrow buttons and press the ENTER button to accept the new
settings and store them into memory.
LED Indicator
Menu Button
Enter Button
Output Status
Time Remaining
rev:112013
Advertisement
Related Manuals for Blueprint BDCT-1
Summary of Contents for Blueprint BDCT-1
- Page 1 Thank you for choosing to grow with Blueprint Wall Mount Access Controllers! Your satisfaction and success are important to us. For best results, carefully read the following instructions before using your Blueprint Digital Cycle Timer. LCD Screen Features of your Blueprint Digital Cycle Timer...
- Page 2 Day Off Time: To set the amount of time the output will be cycled off Photocell Function: To operate the unit continuously regardless of when the photocell detects light, press the MENU button to display the the ambient lighting, disable the photocell function. To change the first menu item. Use the UP and DOWN arrow buttons to scroll through photocell option, press the MENU button to display the first menu and find “Set Day Off Time” on the LCD screen. To change the settings, item. Use the UP and DOWN arrow buttons to scroll through and find press the ENTER button. The current hour setting will be highlighted to “Select Photocell” on the LCD screen. To change the settings, press indicate the setting can be changed. Enter the hour setting using the UP the ENTER button. Use the UP and DOWN arrow buttons to select...
- Page 3 Sunleaves Garden Products warrants that the Blueprint Digital Cycle Timer will remain free from appearance of defects in workmanship and materials for 3 years from date of original retail purchase. This warranty is sub- ject to the following limitations: (a) manufacturer’s liability is limited to the replacement or repair of the unit, as decided by the manufacturer; (b) a defective unit must be returned, prepaid, with proof of purchase to the point of purchase or as instructed below; and (c) this warranty does not apply to defects resulting from the alteration, abuse, accidental damage, unauthorized repair or misuse of the unit. This warranty is given in lieu of all other warranties, guarantees and conditions on manufacturer’s part, and the manufacturer shall have no tortious or other liability in respect to this Blueprint Digital Cycle Timer. Blueprint Digital Cycle Timer Warranty Is Void If: • NOT ACCOMPANIED BY THE ORIGINAL PROOF OF PURCHASE. • BLUEPRINT DIGITAL CYCLE TIMER HAS BEEN USED IN A NONSTANDARD WAY, INCLUDING GENERAL MISUSE AND OUTDOOR USE. • BLUEPRINT DIGITAL CYCLE TIMER HAS BEEN DAMAGED AS A RESULT OF ACCIDENT, IMPROPER INSTALLATION, ALTERATION, OR FIRE, FLOOD OR OTHER NATURAL DISASTER. Sunleaves Product Warranty Claims To obtain warranty service in the event that your product fails to operate, return the product to the place of purchase. Often the retailer will be able to examine the product in closer detail, determine the problem and even fix the product on site.
