Specifications
Main Power Voltage
Main Circuit Breaker/Wire Required*
Receptacle Type
Max. Lighting Watts*
Max. Relay Amps*
Trigger Cable Volts
Operating Temperature Range
Operating Humidity Range
Min. Relay Operations
*Based on 240V operation
IMPORTANT PRECAUTIONS
• Consult a certified electrician prior to installation or have the unit professionally installed.
• Read all product specifications and instructions before installation and operation.
• DO NOT install the HID hub if unfamiliar with electrical wiring and circuits OR if you do not fully understand the instructions.
• Disconnect all power prior to installing or servicing the unit.
• All local and national electrical codes MUST be followed.
• Use the HID hub ONLY for its intended purpose.
• DO NOT exceed the maximum ratings of this unit.
• Verify all devices to be controlled by the HID hub are of the correct voltage.
• Unit is for indoor use only. Exercise extreme caution in damp or humid environments.
• Improper installation or use of this controller could result in severe damage and/or personal injury, and will void the warranty.
READ AND SAVE THESE INSTRUCTIONS
4 Site, HUB-4
4,000 Total/1,000 per Outlet

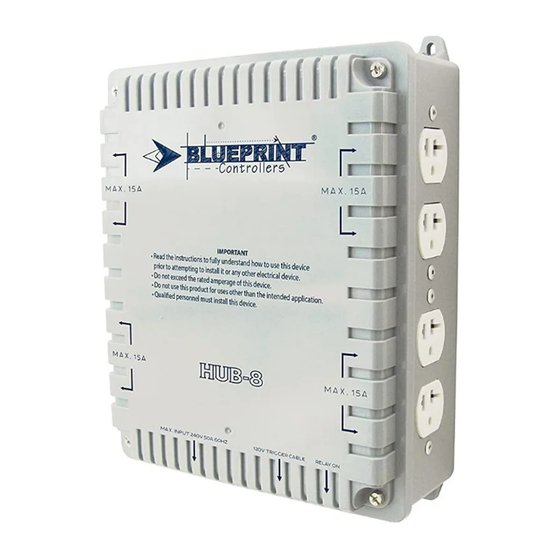

8 Site, HUB-8
4 Site, HUB-4
120 or 240
30A/#10 AWG
4 Universal Outlets
30
32-110ºF
0-99% RH Noncondensing
100,000 @ Full load
8 Site, HUB-8
120 or 240
50A/#6 AWG
8 Universal Outlets
8,000 Total/1,000 per Outlet
30 (x2 Relays)
120
rev:22017
Advertisement
Table of Contents
Related Manuals for Blueprint HUB-4
Summary of Contents for Blueprint HUB-4

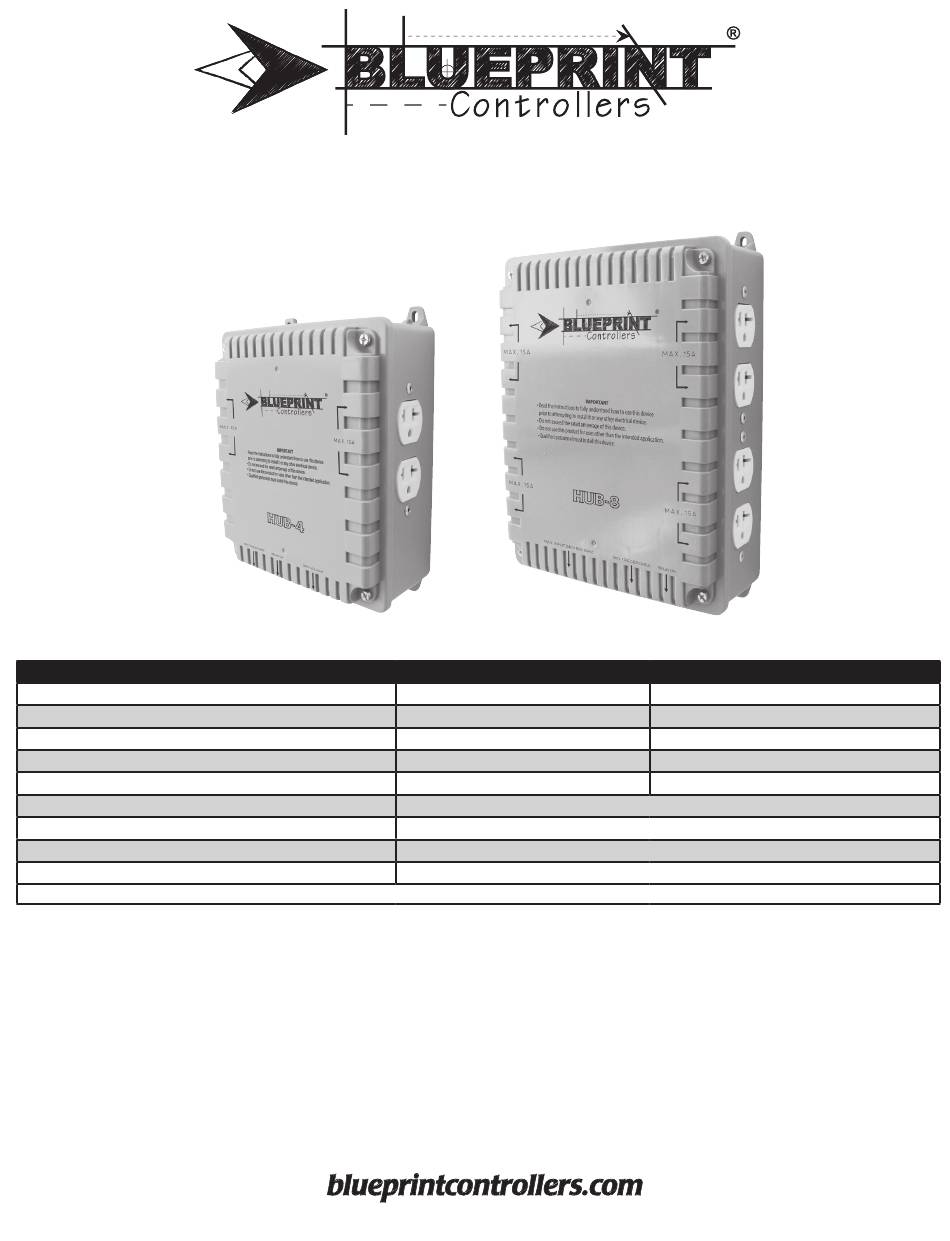

- Page 1 READ AND SAVE THESE INSTRUCTIONS 4 Site, HUB-4 8 Site, HUB-8 Specifications 4 Site, HUB-4 8 Site, HUB-8 Main Power Voltage 120 or 240 120 or 240 Main Circuit Breaker/Wire Required* 30A/#10 AWG 50A/#6 AWG Receptacle Type 4 Universal Outlets 8 Universal Outlets Max.
- Page 2 Torque the main power connections on the relay to 40 lb-in • All connected ballasts MUST be wired correctly and according on the HUB-4 model, or torque the terminal block to 30 lb-in to the main power voltage. on the HUB-8 model. DO NOT USE AN ELECTRIC DRILL o 240-volt main power requires ballasts wired for 240 volts.
- Page 3 BWGS shall not be responsible for any incidental or consequential damages of any nature, including damage or injury caused to other products, machinery, buildings or property; loss of profits, time or product; or inconvenience. The original proof of purchase MUST accompany the Blueprint Controllers ®...
