Quick programming guide for the W100W Interlocks

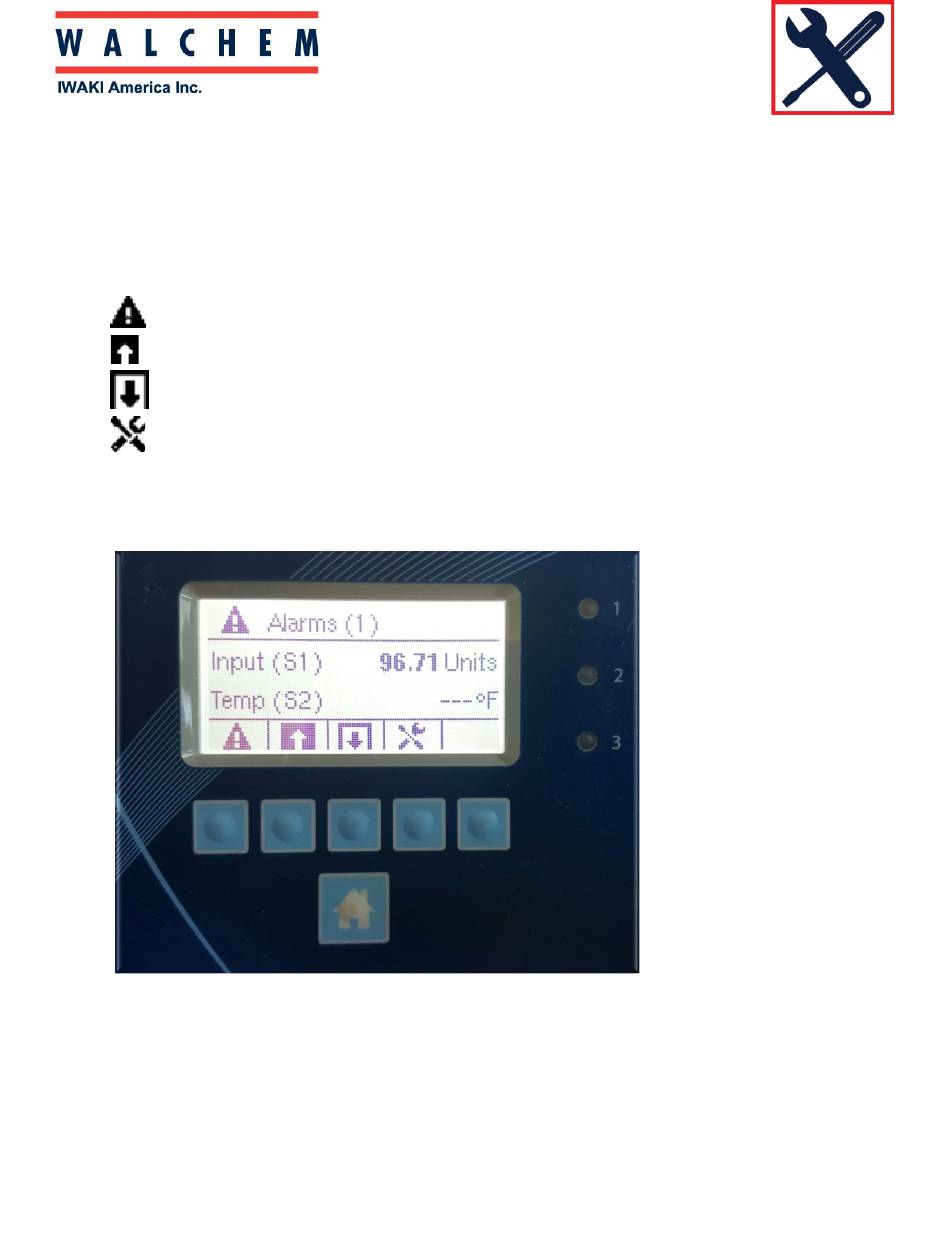

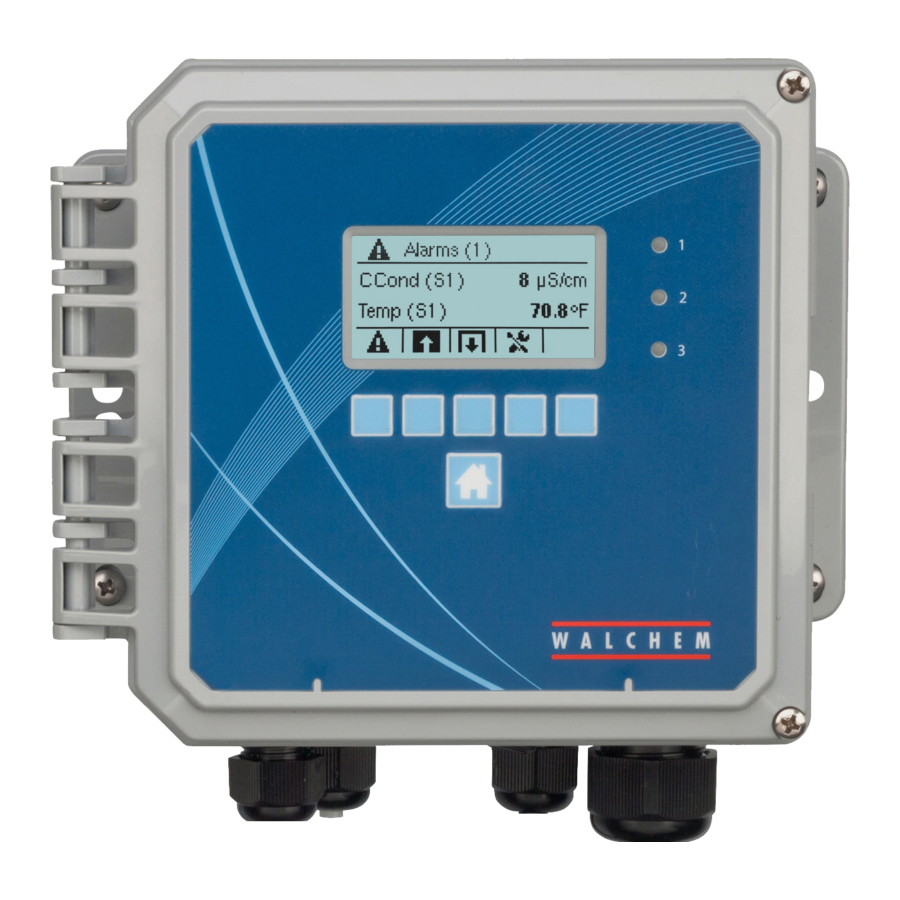

The W100 controller is menu-driven programming, with 4 major icons.
Theses icons appear on the Home screen from left to right:
Alarm Menu
Inputs Menu (Direct sensors, analog, digital inputs)
Outputs Menu (Relays)
Configurations/Settings menu
Press the key below the icon to get to the main menu selections. The UP Arrow will get you to the Inputs
Menu; The DOWN Arrow will get you to the Relays Menu.
Pressing the HOME (bottom) button at any time will return you to the page above.
100 Programming
W
