EDKYFYXA00−A00
.Y&a
L−force Communication
EYF
U
W
V
KTY
U
W
V
KTY
EYFxxxxYxxxxA00A00
Systemleitung für Rückführungsanschluss
System cable for feedback connection
Câble système pour raccordement bouclage
Cable de sistema para conexión de la realimentación
Cavo di sistema per collegamento di retroazione
Montageanleitung
Mounting Instructions
Instructions de montage
Instrucciones para el montaje
Istruzioni per il montaggio
U
V
W
PE
l
Advertisement
Related Manuals for Lenze EYF Series
Summary of Contents for Lenze EYF Series

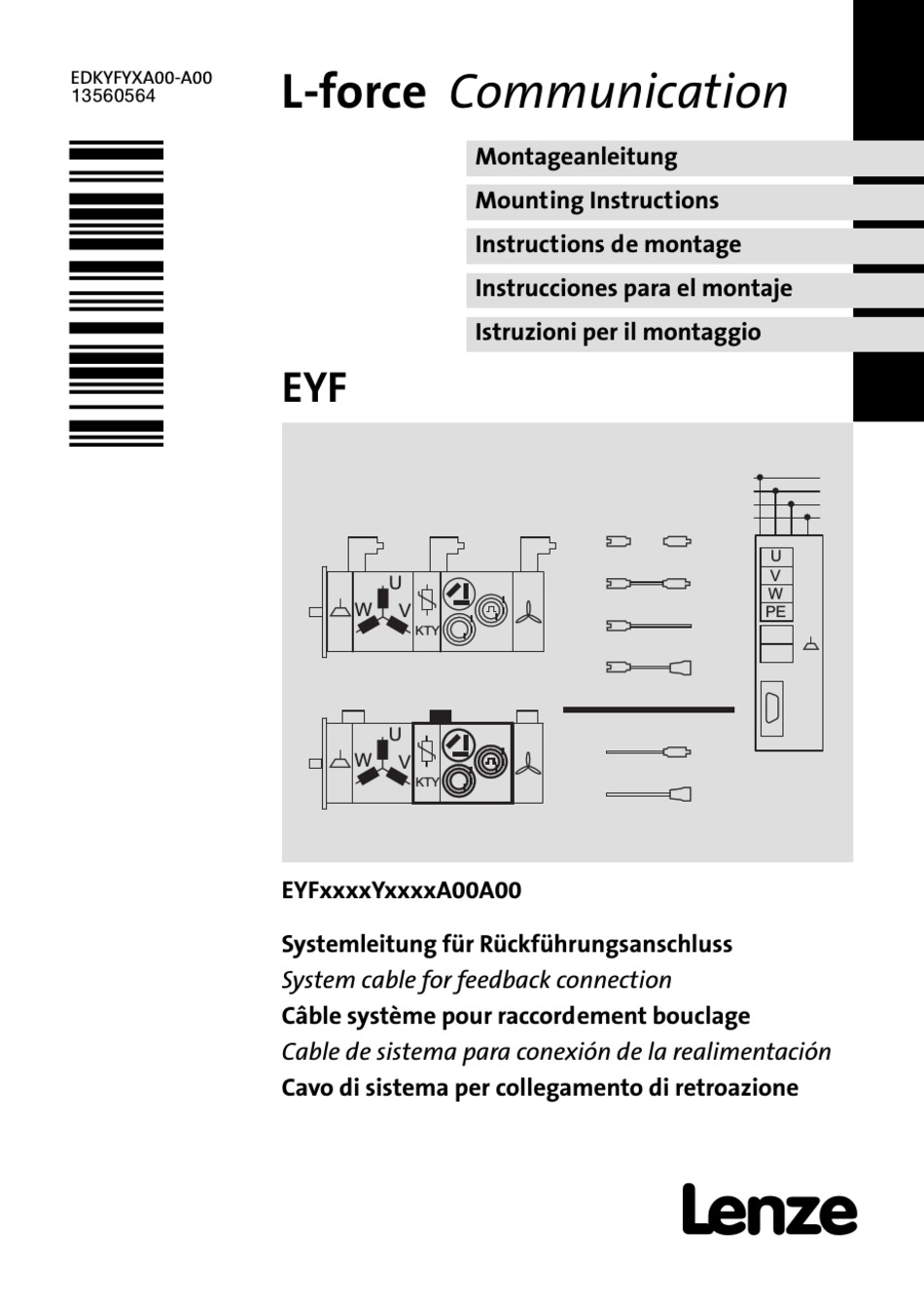

- Page 1 EDKYFYXA00−A00 L−force Communication .Y&a Montageanleitung Mounting Instructions Instructions de montage Instrucciones para el montaje Istruzioni per il montaggio EYFxxxxYxxxxA00A00 Systemleitung für Rückführungsanschluss System cable for feedback connection Câble système pour raccordement bouclage Cable de sistema para conexión de la realimentación Cavo di sistema per collegamento di retroazione...
- Page 2 Lesen Sie die Dokumentationen zum Grundgerät und zum Motor und das Handbuch "Systemleitungen und Systemstecker", bevor Sie mit den Arbeiten beginnen. Before your start working, please read the documentation for the basic unit and the motor as well as the manual "System Cables and System Connectors". Lire la documentation relative à...
- Page 3 xxxx xxxx xxxx × 0.1 m 3(2×0.14 mm ) + (3×0.14 mm 0017 9.4 mm [3(2×AWG 26) + (3×AWG 26)] 3(2×0.14 mm ) + (3×0.14 mm 0020 9.3 mm [3(2×AWG 26) + (3×AWG 26)] +REF +REF -REF -REF +COS +COS -COS -COS +SIN...
- Page 4 xxxx xxxx xxxx × 0.1 m 4(2×0.14 mm ) + (2×1.0 mm 0018 11.4 mm [4(2×AWG 26) + (2×AWG 18)] 4(2×0.14 mm ) + 2(1×1.0 mm 0019 10.8 mm [4(2×AWG 26) + 2(1×AWG 18)] (SIN) (SIN) (RefSIN) (RefSIN) (RefCOS) (RefCOS) (COS) (COS) (-RS485)
- Page 5 xxxx xxxx xxxx × 0.1 m 3(2×0.14 mm ) + (4×0.14 mm ) + 2(2×0.5 mm 0021 12.0 mm [3(2×AWG 26) + (4×AWG 26) + 2(2×AWG 20)] 5(2×0.14 mm ) + (4×0.14 mm ) + (2×0.5 mm 0024 12.6 mm [5(2×AWG 26) + (4×AWG 26) + (2×AWG 20)] +Sense +Sense...
- Page 6 xxxx xxxx xxxx × 0.1 m 5(2×0.14 mm ) + (4×0.14 mm ) + (2×0.5 mm 0023 [5(2×AWG 26) + (4×AWG 26) + (2×AWG 20)] 12.6 mm 5(2×0.14 mm ) + (4×0.14 mm ) + (2×0.5 mm 0024 [5(2×AWG 26) + (4×AWG 26) + (2×AWG 20)] BK/YE BK/RD +KTY...
- Page 7 r > 5 × d r > 7,5 × d r > 10 × d v, a, n v < 3 m/s a < 5 m/s n > 2,5 Mio. silicone halogen silicone halogen UL−Recognized 2014/35/EU AVLV2, AVLV8 50 V 300 V £...
- Page 8 © 10/2018 Lenze Drives GmbH Service Lenze Service GmbH Postfach 10 13 52, 31763 Hameln Breslauer Straße 3, D−32699 Extertal Breslauer Straße 3, 32699 Extertal GERMANY Germany HR Lemgo B 6478 +49 5154 82−0 008000 2446877 (24 h helpline) Ê...
