EDKYFAXF02-A00
.>J;
L-force Drives
EYF
U
W
V
KTY
U
W
V
KTY
EYFxxxxAxxxxF02A00, EYFxxxxAxxxxF06A00
Systemleitung für Encoderanschluss
System cable for encoder connection
Câble système pour raccordement codeur
Cable de sistema para la conexión del encoder
Cavo di sistema per collegamento encoder
Montageanleitung
Mounting Instructions
Instructions de montage
Instrucciones para el montaje
Istruzioni per il montaggio
U
V
W
PE
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Lenze L-force EYF A Series
Summary of Contents for Lenze L-force EYF A Series

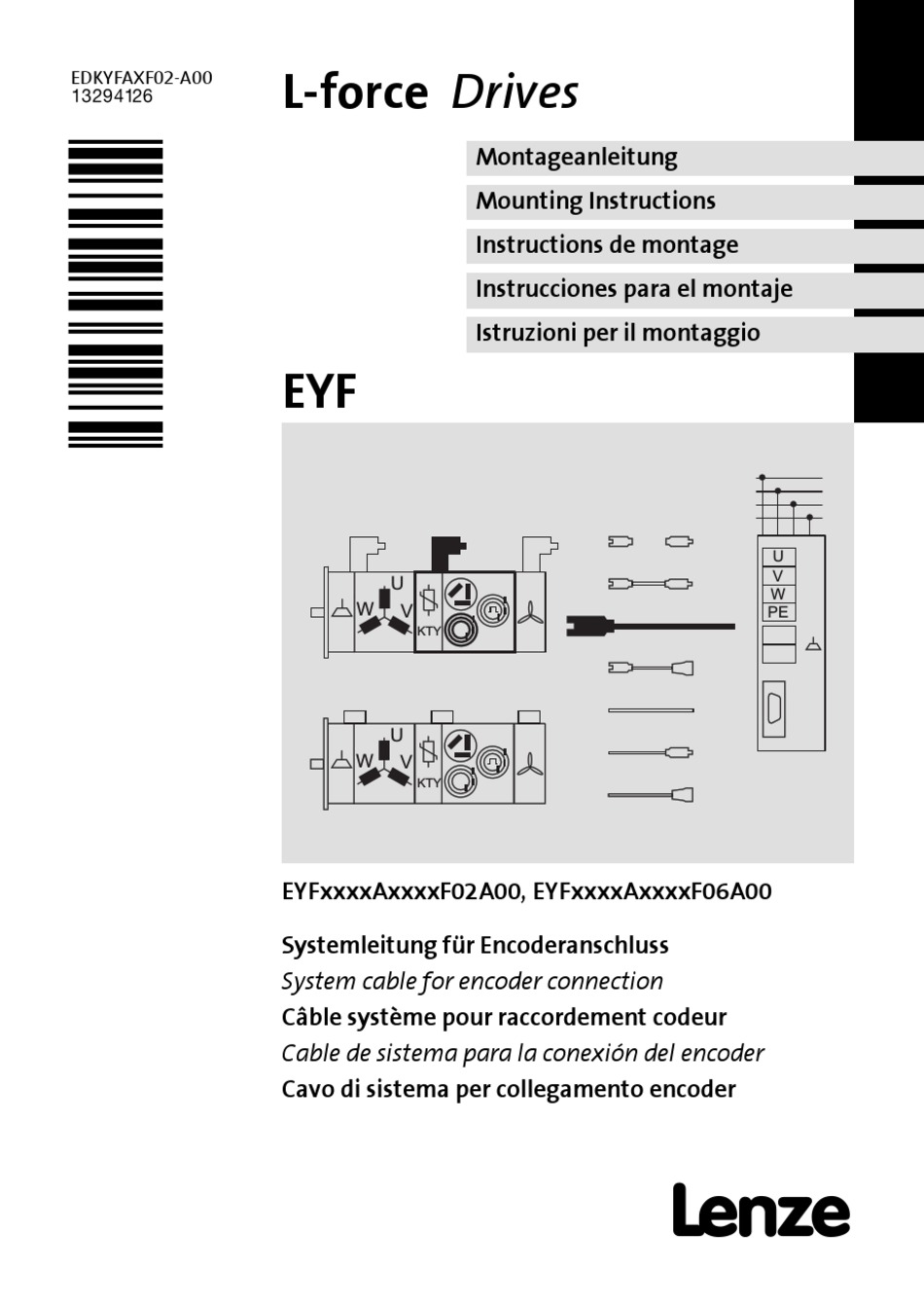

- Page 1 L-force Drives EDKYFAXF02-A00 .>J; Montageanleitung Mounting Instructions Instructions de montage Instrucciones para el montaje Istruzioni per il montaggio EYFxxxxAxxxxF02A00, EYFxxxxAxxxxF06A00 Systemleitung für Encoderanschluss System cable for encoder connection Câble système pour raccordement codeur Cable de sistema para la conexión del encoder Cavo di sistema per collegamento encoder ...
- Page 2 Lesen Sie die Dokumentation zum Grundgerät und zum Motor, bevor Sie mit den Arbeiten beginnen. Please read the documentation for the basic device and the motor before you start working. Veuillez lire attentivement la documentation de l’ appareil de base et du moteur avant toute opération ! ...
- Page 3 xxxx xxxx xxxx × 0,1 m 4(2×0,14 mm ) + (2×1,0 mm 0018 11,4 mm [4(2×AWG 26) + (2×AWG 18)] B (SIN) (RefSIN) (RefCOS) (COS) 12 E Z (-RS485) Z (+RS485) +KTY -KTY EYF xxxx A xxxx F02 A00 EYF xxxx A xxxx F06 A00 efafa_2 ...
- Page 4 xxxx xxxx xxxx × 0,1 m 4(2×0,14 mm ) + 2(1×1,0 mm 0019 11,7 mm [4(2×AWG 26) + 2(1×AWG 18)] B (SIN) (RefSIN) (RefCOS) (COS) 12 E Z (-RS485) Z (+RS485) +KTY -KTY EYF xxxx A xxxx F02 A00 EYF xxxx A xxxx F06 A00 efafa_3 ...
- Page 5 r > 5 × d r > 7,5 × d r > 10 × d v, a, n v < 3 m/s a < 5 m/s n > 2,5 Mio. silicone halogen silicone halogen UL-Recognized 2006/95/EG CYJV2, CYJV8 AVLV8 50 V 125 V...
- Page 6 © 04/2009 Lenze Automation GmbH Service Lenze Service GmbH Grünstraße 36 Breslauer Straße 3 D-40667 Meerbusch D-32699 Extertal Germany Germany +49 (0)21 32 / 99 04-0 00 80 00 / 24 4 68 77 (24 h helpline) +49 (0)21 32 / 7 21 90 +49 (0)51 54 / 82-11 12 Lenze@Lenze.de...
