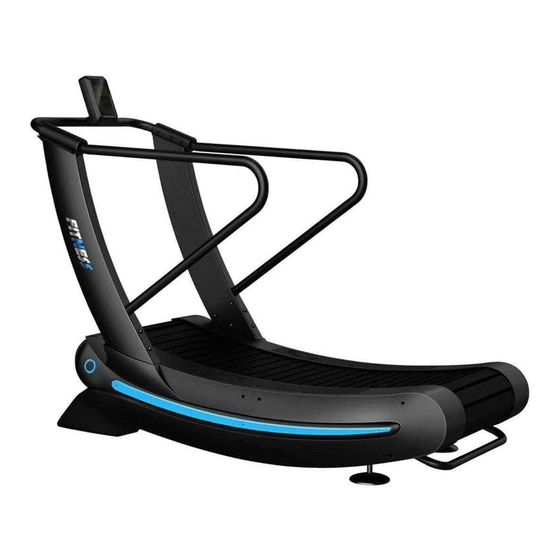

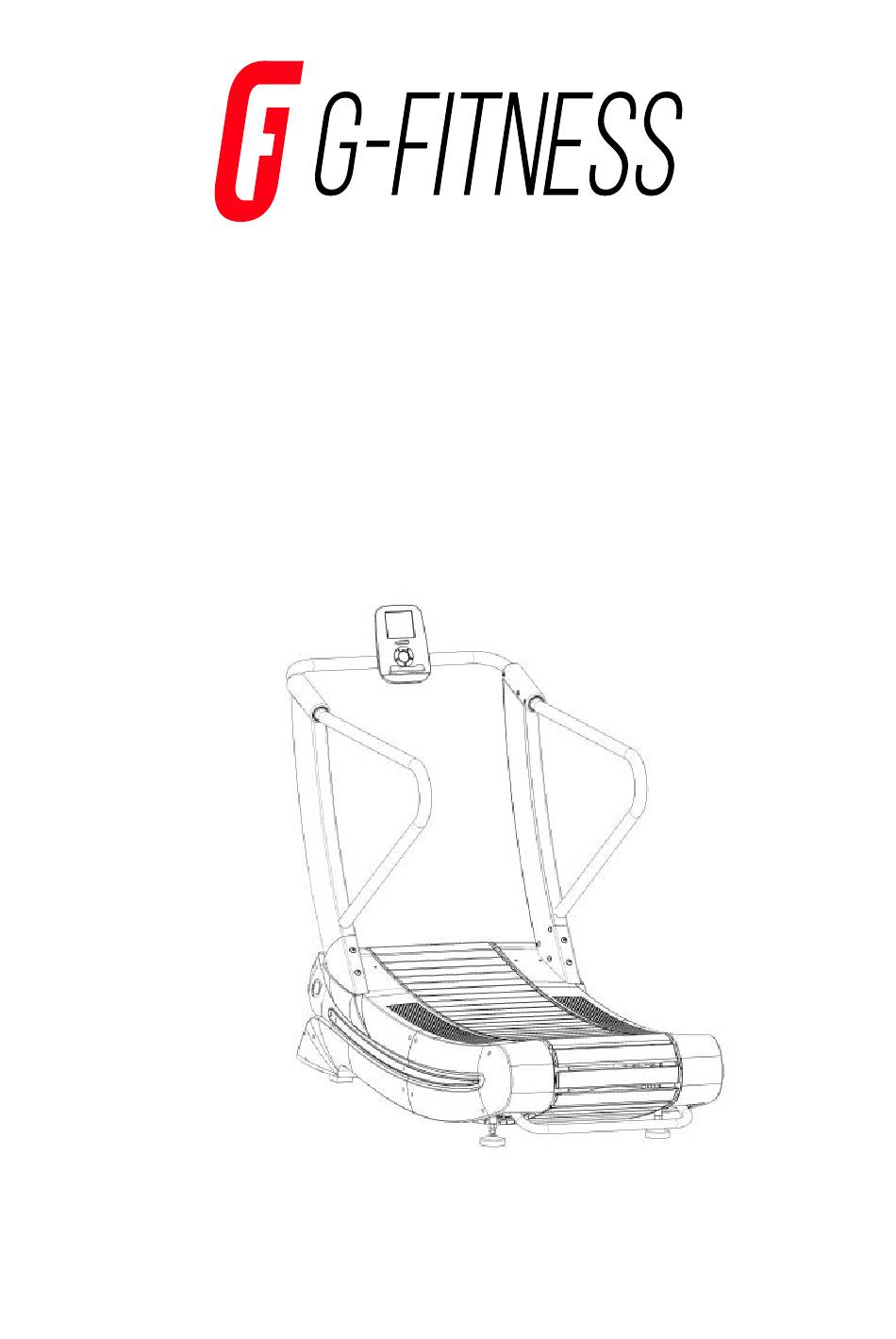

- Page 1 TZ-3000 Curve Treadmill Manual...
-
Page 2: Table Of Contents
Contents 1. Safety Cautions 2. Technical standard 3. Machine diagram 4. Installation procedures&Machine debug 5. Operation guide 6. Packing list 7. Explosive view... -
Page 3: Safety Cautions
1. Safety Caution： Please read all precautions and instructions in this manual before using this equipment. 1. This Curve treadmill is suitable for commercial fitness clubs, clubhouse fitness, bodybuilding training, sports training, physical education and so on. 2. This Curve treadmill is suitable for indoor use, do not use it outdoors or in high humidity situation. -
Page 4: Technical Standard
2. Technical standard: Input supply voltage: four-cell dry battery Time: 0:00—99.59 Distance: 0.00—99.99 (km) Calories: 0—999 (kcal) Heart rate: 60—300 (beats/min) Revolving speed 0-900 (r/min) -
Page 5: Machine Diagram
3.Machine diagram Console Console holder Handel Stand column Foot stepping Running belt Carry handle... -
Page 6: Installation Procedures&Machine Debug
4. Installation procedures&Machine debug Taking easy-assembly as the principle: User Manual of this section is designed to ensure that the treadmills can be assembled correctly and easily. ●Considering the big size of the treadmill, please select the location where the treadmill will be placed and ensure there is enough space around it. - Page 7 Assembly step one: Connect the magnetic induction line and assemble the stand column. Assembly instructions: 1) Remove the packing materials on both sides of the stand column. 2) Fix the stand column to the corresponding position of the main frame as shown in the picture below.
- Page 8 Assembly step two: Connect the magnetic induction line and assemble the console holder: Assembly instructions: 1) Connect the magnetic induction line of the console holder to those in the stand column. 2) Fix the console holder tightly with the stand column as shown in the picture below, using 2 pcs of (27).
- Page 9 Assembly step three: Assembling the console; connecting the magnetic line 1) Connecting the magnetic line of the console with the line in the holder console holder. 2) After connected the magnetic line, place the console at the joint of console holder and fasten it (as shown), using 4pcs of (13) and 4pcs of (14).
-
Page 10: Operation Guide
5. Operation guide Console Introduction: This treadmill adopts console model, four dry battery power supply, low power consumption, no external power supply required; This treadmill interface has only one main interface, with six buttons to achieve the purpose of use, the specific operation methods of the treadmill are as follows: 1.Home page The main interface is used to display device name, time, distance, calories, speed, 2. -
Page 11: Packing List
Numerical minus key: For numerical reduction on numerical setting interface, reduction rate: -1 Program setting key: Click this key to start program setting, consist of body fat test; time reciprocal, distance reciprocal, calories reciprocal and heart rate monitoring five kinds of procedures; Reset key: Touch this button (no more than 3s) to back step.;... -
Page 12: Explosive View
7. Explosive view... - Page 17 Item Description TZ03-SP03-0302 Front axle FL005 Bearing pedestal TZ06-SP03-0612 Front wheel 8X25 Flat key M6X8L-J1 Set screw Magnet TZ03-SP03-0303 Back axle TZ06-SP03-0613 Back wheel Running belt unit TZ17-SP03-1701 Running belt TZ10-SP03-1001 Foam glues tape TZ02-SP03-0235 Running belt fixing metal plate Φ10Xφ5.5X1.0t-C1 washer M5X12L-A1 Cross plate circular bolt TZ04-SP03-0403 Running belt rack...
- Page 18 M10X100L-N1 Hexagon socket cap screws M8X20L-N1 Hexagon socket cap screws M10X60L-N1 Hexagon socket cap screws M10X9t-S1 Lock nut TZ06-SP03-0614 Footing Front wheel M8X50L-N1 Hexagon socket cap screws M16 Footing M16X14.8 Nut 6205 One-way bearing 8X14 Flat key TZ02-SP03-0236 One-way bearing pedestal M8X55 Carriage bolts TZ-50-0609 Weight interval washer TZ-5013-0211 Small round block...
