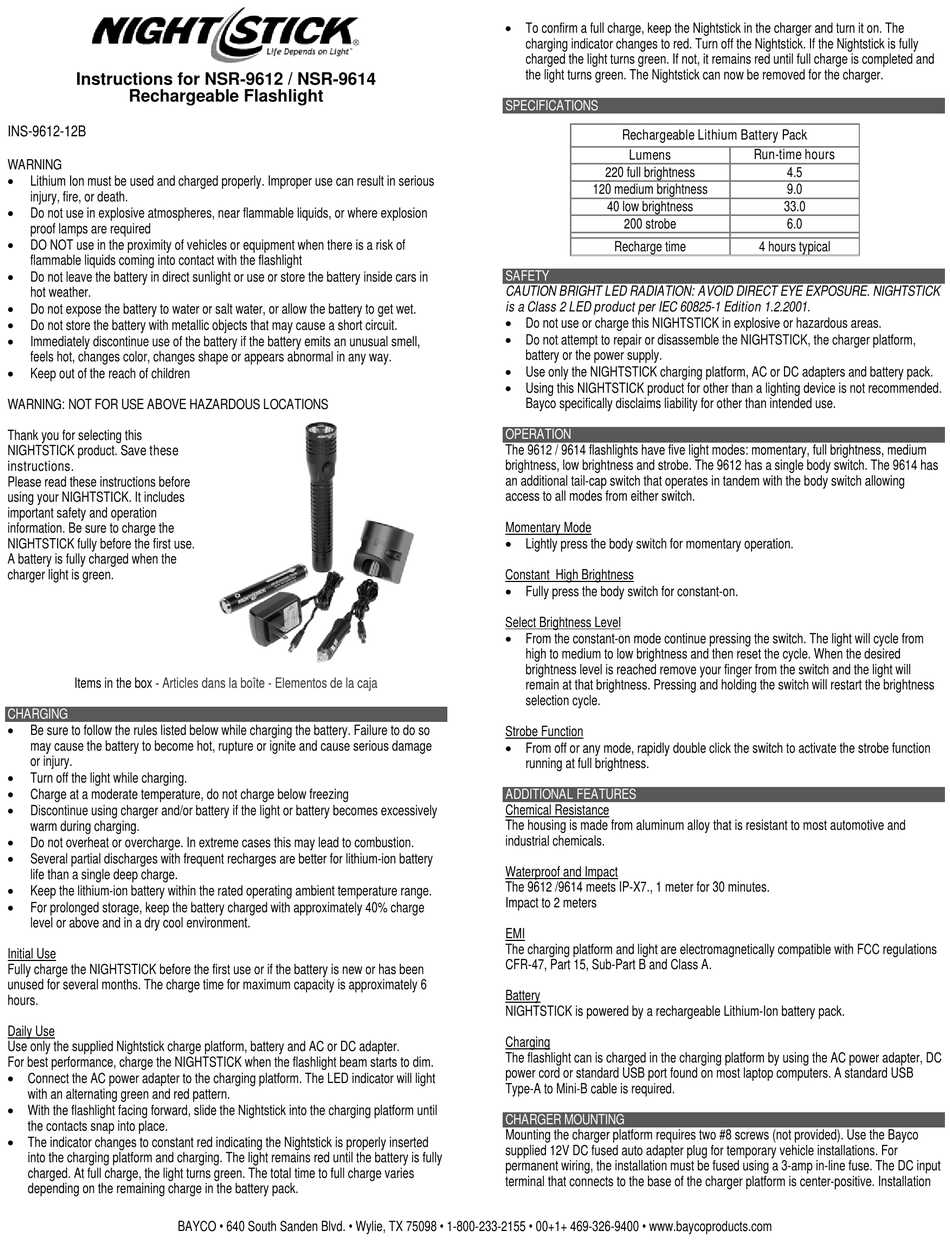

NightStick NSR-9612 Instructions

Instructions for NSR-9612 / NSR-9614
Rechargeable Flashlight
INS-9612-12B
WARNING

Lithium Ion must be used and charged properly. Improper use can result in serious
injury, fire, or death.

Do not use in explosive atmospheres, near flammable liquids, or where explosion
proof lamps are required

DO NOT use in the proximity of vehicles or equipment when there is a risk of
flammable liquids coming into contact with the flashlight

Do not leave the battery in direct sunlight or use or store the battery inside cars in
hot weather.

Do not expose the battery to water or salt water, or allow the battery to get wet.

Do not store the battery with metallic objects that may cause a short circuit.
 Immediately discontinue use of the battery if the battery emits an unusual smell,
feels hot, changes color, changes shape or appears abnormal in any way.

Keep out of the reach of children
WARNING: NOT FOR USE ABOVE HAZARDOUS LOCATIONS
Thank you for selecting this
NIGHTSTICK product. Save these
instructions.
Please read these instructions before
using your NIGHTSTICK. It includes
important safety and operation
information. Be sure to charge the
NIGHTSTICK fully before the first use.
A battery is fully charged when the
charger light is green.
Items in the box - Articles dans la boîte - Elementos de la caja
CHARGING
 Be sure to follow the rules listed below while charging the battery. Failure to do so
may cause the battery to become hot, rupture or ignite and cause serious damage
or injury.

Turn off the light while charging.

Charge at a moderate temperature, do not charge below freezing

Discontinue using charger and/or battery if the light or battery becomes excessively
warm during charging.

Do not overheat or overcharge. In extreme cases this may lead to combustion.

Several partial discharges with frequent recharges are better for lithium-ion battery
life than a single deep charge.

Keep the lithium-ion battery within the rated operating ambient temperature range.

For prolonged storage, keep the battery charged with approximately 40% charge
level or above and in a dry cool environment.
Initial Use
Fully charge the NIGHTSTICK before the first use or if the battery is new or has been
unused for several months. The charge time for maximum capacity is approximately 6
hours.
Daily Use
Use only the supplied Nightstick charge platform, battery and AC or DC adapter.
For best performance, charge the NIGHTSTICK when the flashlight beam starts to dim.
 Connect the AC power adapter to the charging platform. The LED indicator will light
with an alternating green and red pattern.
 With the flashlight facing forward, slide the Nightstick into the charging platform until
the contacts snap into place.
 The indicator changes to constant red indicating the Nightstick is properly inserted
into the charging platform and charging. The light remains red until the battery is fully
charged. At full charge, the light turns green. The total time to full charge varies
depending on the remaining charge in the battery pack.
BAYCO • 640 South Sanden Blvd. • Wylie, TX 75098 • 1-800-233-2155 • 00+1+ 469-326-9400 • www.baycoproducts.com
 To confirm a full charge, keep the Nightstick in the charger and turn it on. The
charging indicator changes to red. Turn off the Nightstick. If the Nightstick is fully
charged the light turns green. If not, it remains red until full charge is completed and
the light turns green. The Nightstick can now be removed for the charger.
SPECIFICATIONS
Rechargeable Lithium Battery Pack
Lumens
220 full brightness
120 medium brightness
40 low brightness
200 strobe
Recharge time
SAFETY
CAUTION BRIGHT LED RADIATION: AVOID DIRECT EYE EXPOSURE. NIGHTSTICK
is a Class 2 LED product per IEC 60825-1 Edition 1.2.2001.
 Do not use or charge this NIGHTSTICK in explosive or hazardous areas.
 Do not attempt to repair or disassemble the NIGHTSTICK, the charger platform,
battery or the power supply.
 Use only the NIGHTSTICK charging platform, AC or DC adapters and battery pack.
 Using this NIGHTSTICK product for other than a lighting device is not recommended.
Bayco specifically disclaims liability for other than intended use.
OPERATION
The 9612 / 9614 flashlights have five light modes: momentary, full brightness, medium
brightness, low brightness and strobe. The 9612 has a single body switch. The 9614 has
an additional tail-cap switch that operates in tandem with the body switch allowing
access to all modes from either switch.
Momentary Mode
 Lightly press the body switch for momentary operation.
Constant High Brightness
 Fully press the body switch for constant-on.
Select Brightness Level
 From the constant-on mode continue pressing the switch. The light will cycle from
high to medium to low brightness and then reset the cycle. When the desired
brightness level is reached remove your finger from the switch and the light will
remain at that brightness. Pressing and holding the switch will restart the brightness
selection cycle.
Strobe Function
 From off or any mode, rapidly double click the switch to activate the strobe function
running at full brightness.
ADDITIONAL FEATURES
Chemical Resistance
The housing is made from aluminum alloy that is resistant to most automotive and
industrial chemicals.
Waterproof and Impact
The 9612 /9614 meets IP-X7., 1 meter for 30 minutes.
Impact to 2 meters
EMI
The charging platform and light are electromagnetically compatible with FCC regulations
CFR-47, Part 15, Sub-Part B and Class A.
Battery
NIGHTSTICK is powered by a rechargeable Lithium-Ion battery pack.
Charging
The flashlight can is charged in the charging platform by using the AC power adapter, DC
power cord or standard USB port found on most laptop computers. A standard USB
Type-A to Mini-B cable is required.
CHARGER MOUNTING
Mounting the charger platform requires two #8 screws (not provided). Use the Bayco
supplied 12V DC fused auto adapter plug for temporary vehicle installations. For
permanent wiring, the installation must be fused using a 3-amp in-line fuse. The DC input
terminal that connects to the base of the charger platform is center-positive. Installation
Run-time hours
4.5
9.0
33.0
6.0
4 hours typical
